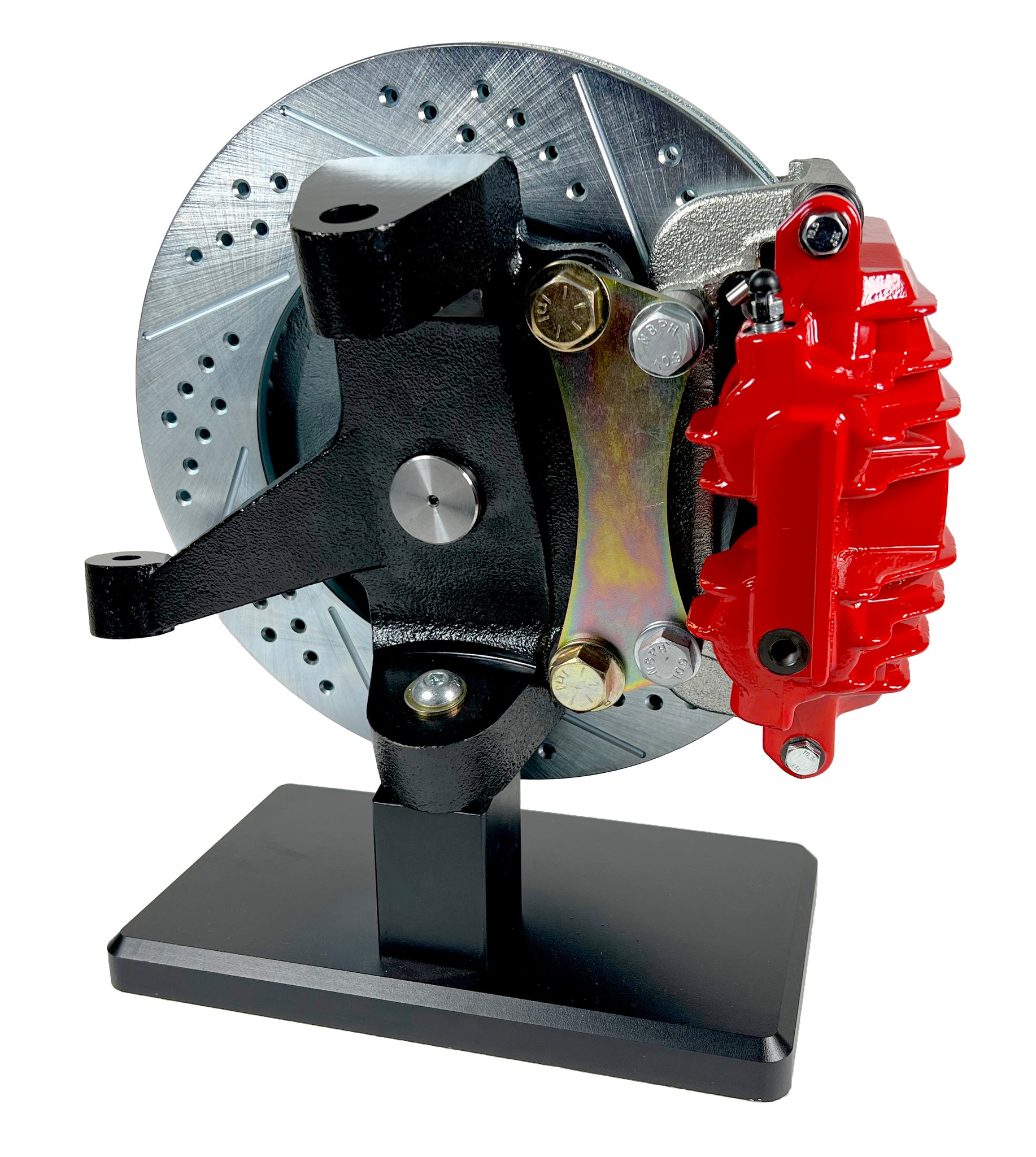

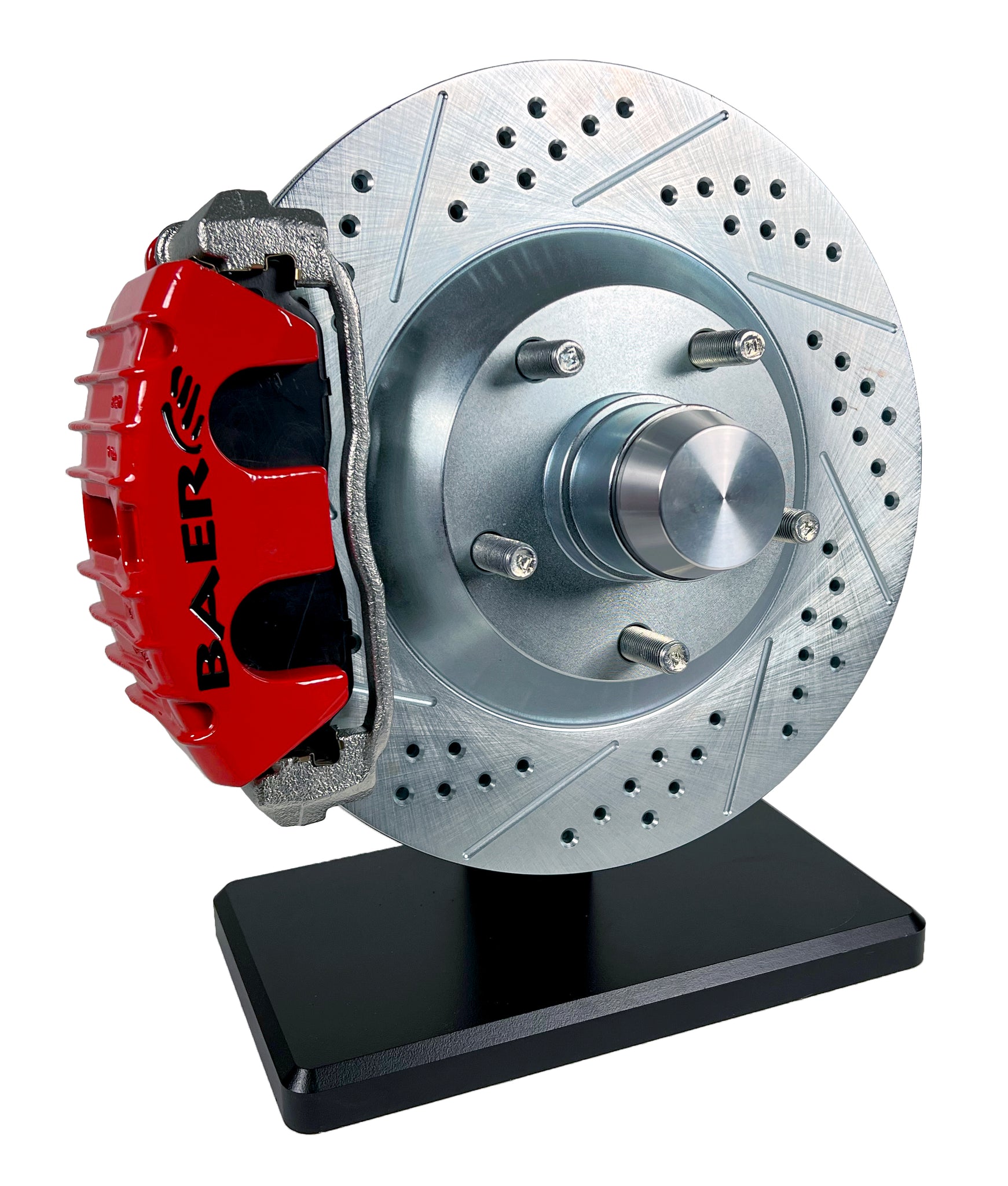

This Classic Series brake kit features an aluminum. 2-piston, pin drive caliper (PDC) mounted to a 13.150", 1-piece slot, drill, zinc plated integral hub rotor and is designed to fit vehicles using the AZ Pro Performance REACT 2" drop spindles (Baer p/n 6800258). The caliper comes in a red powder coated finish with the Baer logo painted black, includes dust & weather seal's and uses the popular D0731 pad type. Rotors are ready to install with races installed and bearings packed with Redline synthetic grease. Dust caps, mounting brackets, stainless braided hoses and all necessary hardware are also included. This 13" Classic Series system fits most 17" or larger wheels and with or without ABS.

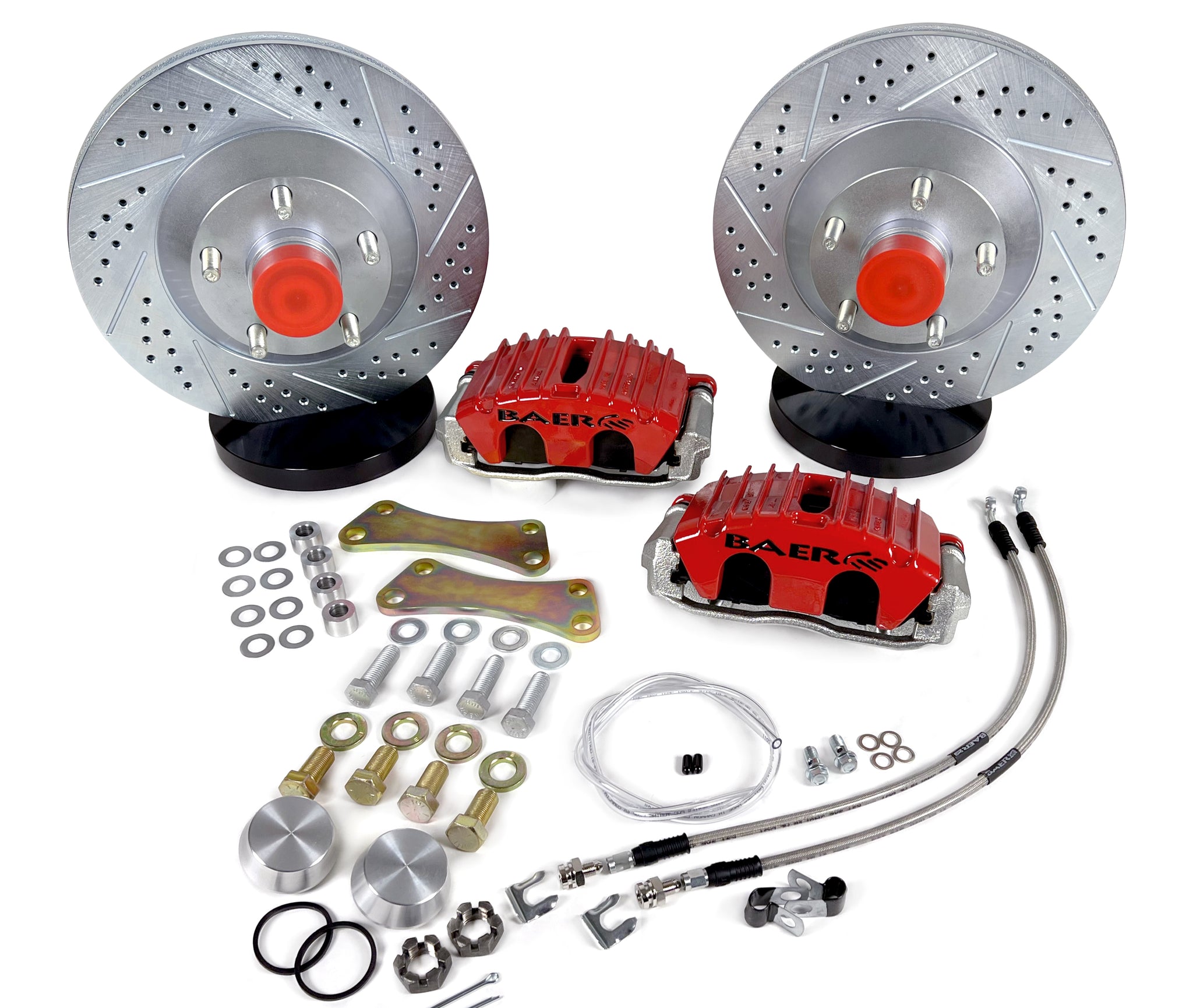

Baer Brake Systems Baer Brakes 13" Classic Series Front Brake Kit 4301681R
Specifications:
| ABS Tone Ring Included | Yes |
| Applications | GM C1500 SUV's 92-99 |
| Applications | GM C1500 Trucks 88-98 |
| Axle | Front |
| 9369 | Yes |
| Brand | Baer Brakes |
| Caliper | 2 PDC |
| 8247 | Red |
| Category | Brakes |
| 9363 | 2 |
| 9358 | Floating |
| 151 | D0731 |
| 9361 | Vented |
| 9365 | 13.150 |
| Emission Code | 6 |
| Export Description | Brake Components |
| Fitment Notes | w/React 2 inch Drop Spindles |
| 3 | Ceramic |
| 3390 | Performance |
| 761 | Stainless Steel |
| Lug Count | 5 Lug |
| Min Wheel Dia (verify using template) | 17 |
| part type | Disc Brake Upgrade Kit |
| Product Line | Classic |
| Product Type | 13 Inch Classic Front Brake Kit |
| Prop 65 (C, R or CR) | C |
| Prop 65 - Long Label | WARNING: This product can expose you to chemicals including Toluene Diisocyanate, and Nickel which are known to the State of California to cause cancer. For more information, visit www.P65Warnings.ca.gov |
| Prop 65 - Short Label | WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov |
| Prop 65 Yes/No | Yes |
| Rotor Diameter | 13.150 |
| Rotor Thickness | 1.150 |
| Rotor Type | 1-Piece Integral Hub |
| 7171 | Vented |
| Sub Category | Service Kits |
| Surface Type | Slotted, Drilled & Zinc Plated |

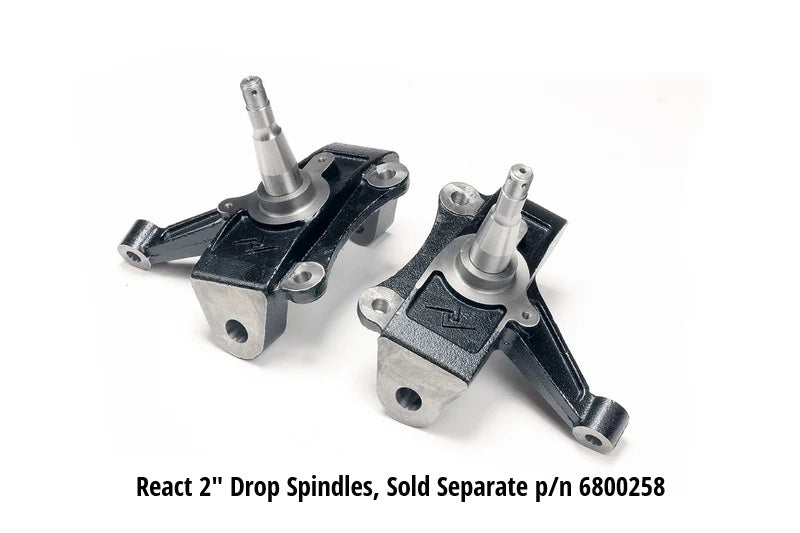

| System Notes | Designed to be used with React 2" drop spindles Baer p/n 6800258 sold separately |
| Title | Classic Series Front Brake Kit |
| Wheel Lug/Bolt Pattern | 5x5.00 |
| Wheel Stud Size | M14-1.50 x 47.5mm |
| Description_INV | 13" CLASSIC SERIES BRAKE KIT FRT RED |
| Description_ASC | ** Because of the abundance of wheel companies and styles, it is impossible for Baer to guarantee fit of their brake systems into a specific wheel style and/or manufacturer. To verify fitment, we recommend using the template specific to the system you are interested in and compare it to the wheel of choice.** |
| Description_DES | Baer Brakes 13" Classic Series Front Brake Kit |
| Description_EXT | Fits 1988-98 Chevrolet/GMC 2WD Trucks & 92-99 Chevrolet/GMC 2WD SUV's w/REACT 2" Drop Spindles (with or without ABS) (5 Lug, 5x5BC) |
| Description_MKT | This Classic Series brake kit features an aluminum. 2-piston, pin drive caliper (PDC) mounted to a 13.150", 1-piece slot, drill, zinc plated integral hub rotor and is designed to fit vehicles using the AZ Pro Performance REACT 2" drop spindles (Baer p/n 6800258). The caliper comes in a red powder coated finish with the Baer logo painted black, includes dust & weather seal's and uses the popular D0731 pad type. Rotors are ready to install with races installed and bearings packed with Redline synthetic grease. Dust caps, mounting brackets, stainless braided hoses and all necessary hardware are also included. This 13" Classic Series system fits most 17" or larger wheels and with or without ABS. |

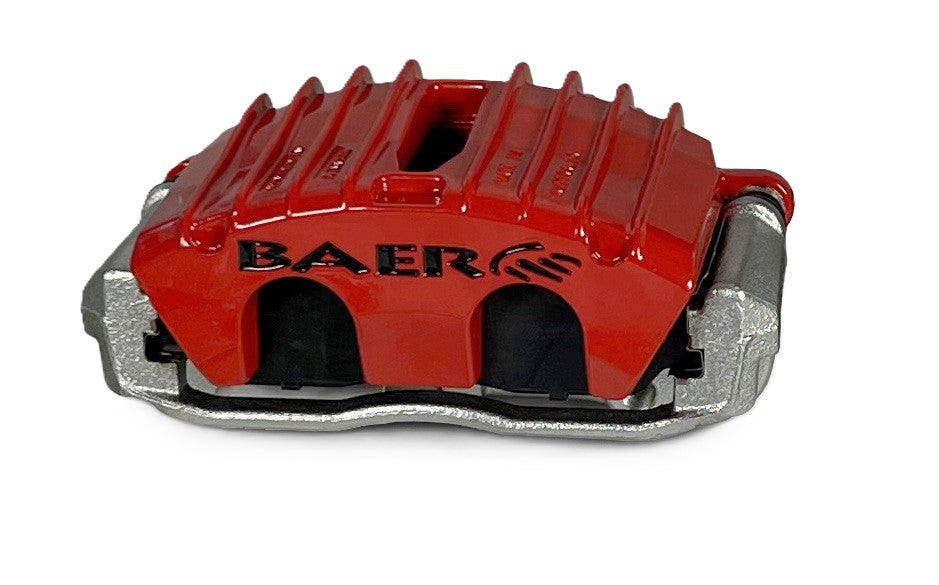

| Description_FAB | Aluminum, 2-Piston, Pin Drive Caliper |
| Description_FAB | Red Powder Coated Caliper w/Black Baer Logo |
| Description_FAB | Slot, Drill, Zinc Plated Rotor Finish |
| Description_FAB | Works With ABS and Non-ABS Applications |
| Description_FAB | Stainless Braided Brake Hoses |
| Description_FAB | Uses Common FMSI D0731 Brake Pad |
| Description_FAB | Modern Brakes for Small Wheels at an Economical Price |
| Description_FAB | Designed to Fit AZ Pro Performance REACT Drop Spindles (Baer p/n 6800258) |
This Part Fits:
| Year | Make | Model | Submodel | Notes |
|---|---|---|---|---|
| 1988 | Chevrolet | C1500 | with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles | |
| 1989 | Chevrolet | C1500 | with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles | |
| 1990 | Chevrolet | C1500 | with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles | |
| 1991 | Chevrolet | C1500 | with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles | |
| 1992 | Chevrolet | C1500 | with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles | |
| 1993 | Chevrolet | C1500 | with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles | |
| 1994 | Chevrolet | C1500 | with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles | |
| 1995 | Chevrolet | C1500 | with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles | |
| 1996 | Chevrolet | C1500 | with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles | |
| 1997 | Chevrolet | C1500 | with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles | |
| 1998 | Chevrolet | C1500 | with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles | |
| 1992 | Chevrolet | C1500 Suburban | with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles | |
| 1993 | Chevrolet | C1500 Suburban | with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles | |
| 1994 | Chevrolet | C1500 Suburban | with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles | |
| 1995 | Chevrolet | C1500 Suburban | with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles | |
| 1996 | Chevrolet | C1500 Suburban | with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles | |
| 1997 | Chevrolet | C1500 Suburban | with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles | |
| 1998 | Chevrolet | C1500 Suburban | with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles | |
| 1999 | Chevrolet | C1500 Suburban | with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles | |
| 1995 | Chevrolet | Tahoe | with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles | |
| 1996 | Chevrolet | Tahoe | with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles | |
| 1997 | Chevrolet | Tahoe | with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles | |
| 1998 | Chevrolet | Tahoe | with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles | |
| 1999 | Chevrolet | Tahoe | with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles | |
| 1988 | GMC | C1500 | with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles | |
| 1989 | GMC | C1500 | with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles | |
| 1990 | GMC | C1500 | with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles | |
| 1991 | GMC | C1500 | with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles | |
| 1992 | GMC | C1500 | with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles | |
| 1993 | GMC | C1500 | with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles | |
| 1994 | GMC | C1500 | with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles | |
| 1995 | GMC | C1500 | with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles | |
| 1996 | GMC | C1500 | with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles | |
| 1997 | GMC | C1500 | with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles | |
| 1998 | GMC | C1500 | with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles | |
| 1992 | GMC | C1500 Suburban | with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles | |
| 1993 | GMC | C1500 Suburban | with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles | |
| 1994 | GMC | C1500 Suburban | with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles | |
| 1995 | GMC | C1500 Suburban | with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles | |
| 1996 | GMC | C1500 Suburban | with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles | |
| 1997 | GMC | C1500 Suburban | with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles | |
| 1998 | GMC | C1500 Suburban | with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles | |
| 1999 | GMC | C1500 Suburban | with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles | |
| 1992 | GMC | Yukon | with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles | |
| 1993 | GMC | Yukon | with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles | |
| 1994 | GMC | Yukon | with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles | |
| 1995 | GMC | Yukon | with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles | |
| 1996 | GMC | Yukon | with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles | |
| 1997 | GMC | Yukon | with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles | |
| 1998 | GMC | Yukon | with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles | |
| 1999 | GMC | Yukon | with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles,with React 2" Drop Spindles |
