*item may differ from images

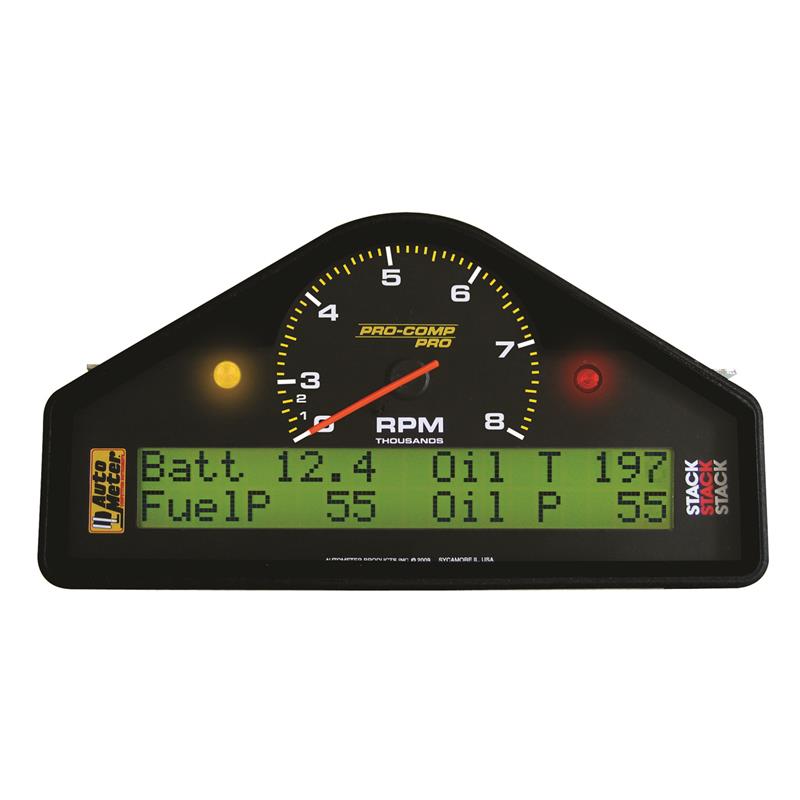

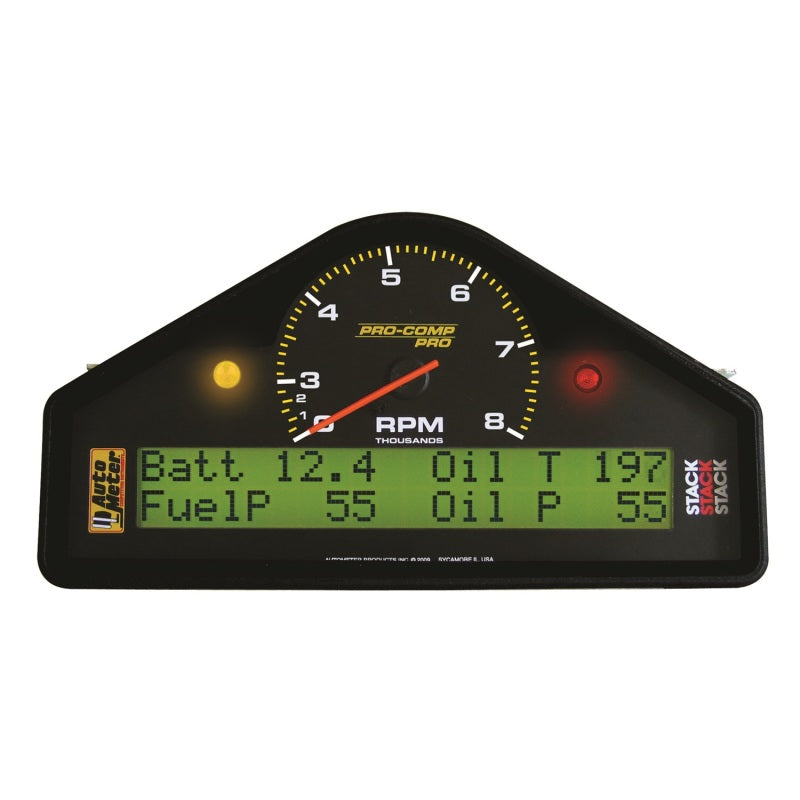

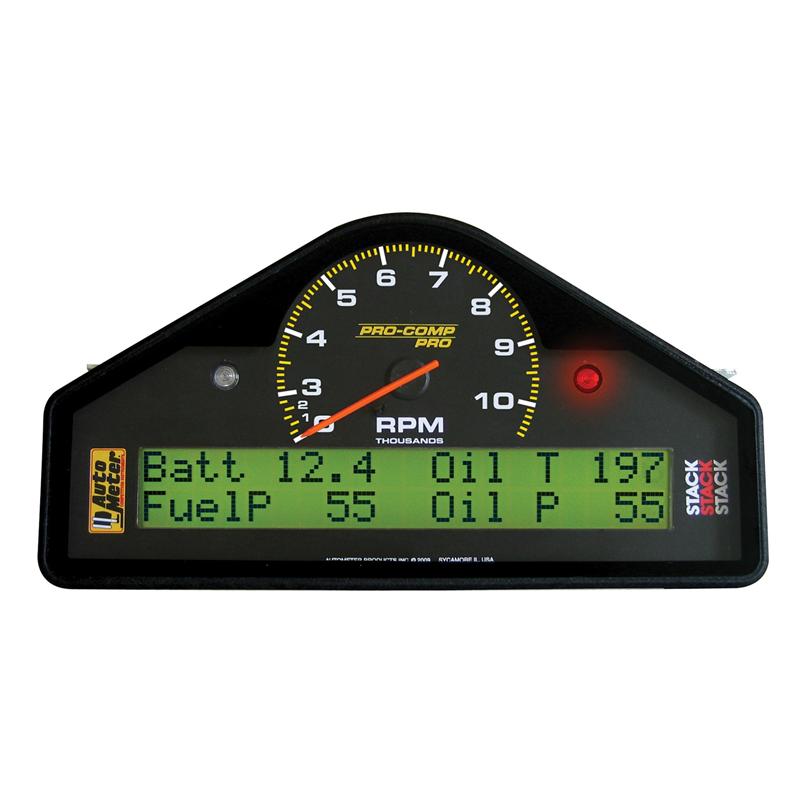

The AutoMeter Race display systems are designed specifically for the harshest environments. The carbon composite housing is IP67 sealed against water and dust intrusion and will easily withstand 20g of continuous vibration and 50g of shock. The analog pointer provides a quick and clear display for engine RPM while the digital display layout is configurable using preconfigured sensor inputs using multiple pages for your axillary instrumentation needs. User definable warnings display across the digital display and illuminate the warning LED placed to the side of the tachometer to alert the driver to critical information. Record and play back your run right on the face of the dash display.
Installation Instructions- Single 19 pin MIL spec connector and motorsports wiring loom utilizing Mini Sure Seal connections for ease of installation and removal
- Display features digital values for vehicle parameters and configurable text warning messages
- Includes oil pressure, water temperature, oil temperature , and fuel pressure sensors
- Optional shift light output, single stage or progressive shift light
- Dimensions - 8.3" Wide x 5.2-1/16" High x 1.4" Deep
- Configurable for engines from 1-12 cylinders
- Built-in warning and shift light LEDs
- Programmable Speed input
- IP67 sealed
