*item may differ from images

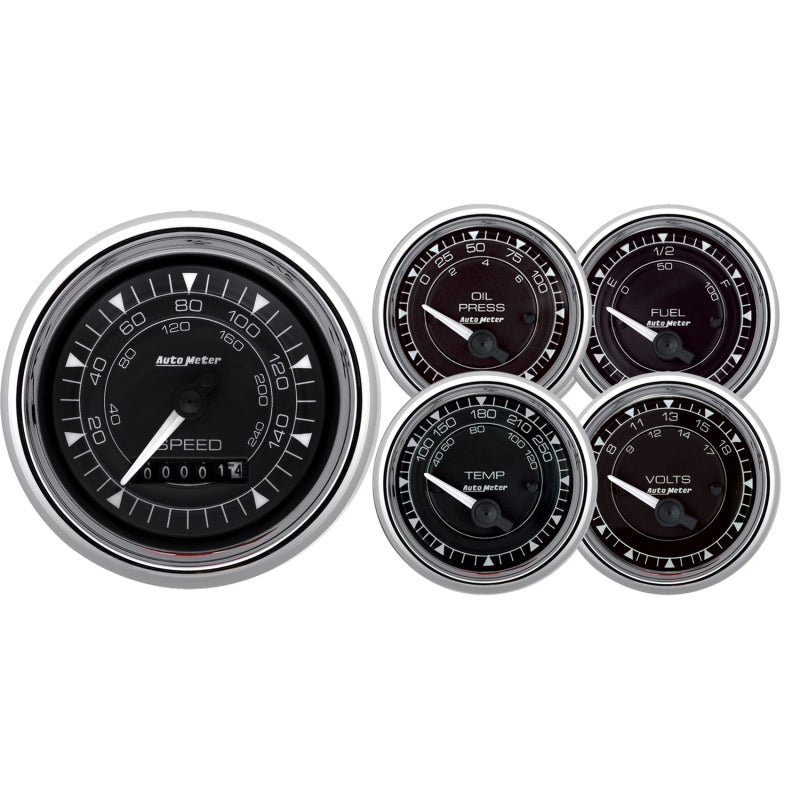

This five gauge kit is a convenient, all-in-one solution that includes an electric speedometer, fuel, oil, water, and volt gauges with a unique three-dimensional dial design that gives added depth and style to your custom dash.
Installation InstructionsInstallation Instructions
Installation Instructions
- Speedometer has a simple push button, 2 mile drive calibration. No dip switches and can be reprogramed at any time to accommodate changes in gear ratio or wheel and tire combination.
- Kit includes 2-wire GM style VSS, as well as sending units for fuel level (240E/33F), oil pressure, water temperature, and sending unit adapters (1/4", 3/8”, and 1/2" NPT adapters)
- Convenient and cost-effective kit includes short sweep electric fuel level, oil pressure, water temperature, and volt gauges with full sweep electric speedometer
- AutoMeter’s race proven air-core electric instruments provide quick and accurate readings while keeping hazardous fluids outside of the vehicle
- Speedometer features lit LCD odometer - capable of registering one-million miles with two resettable trip odometers
- Speedometer is compatible with most two wire sine wave and three wire hall effect vehicle speed sensors.
- Unique three-dimensional beveled dials with modern white LED illumination and flush mounted windows
- 12 and 16 volt compatible, compatible with nearly every street car or race car electrical system
- Highly polished chrome bezel
