*item may differ from images

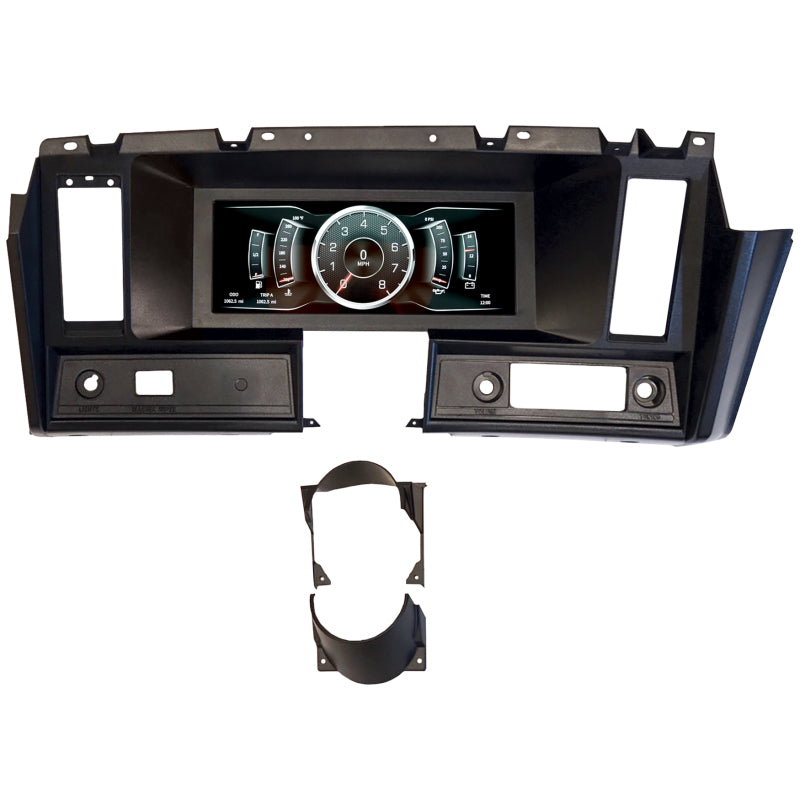

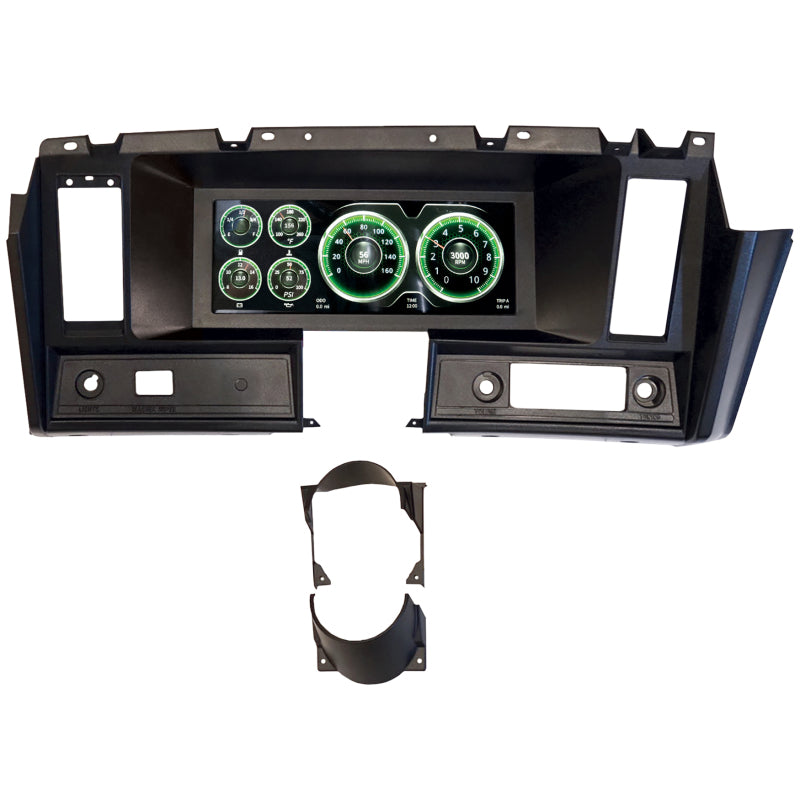

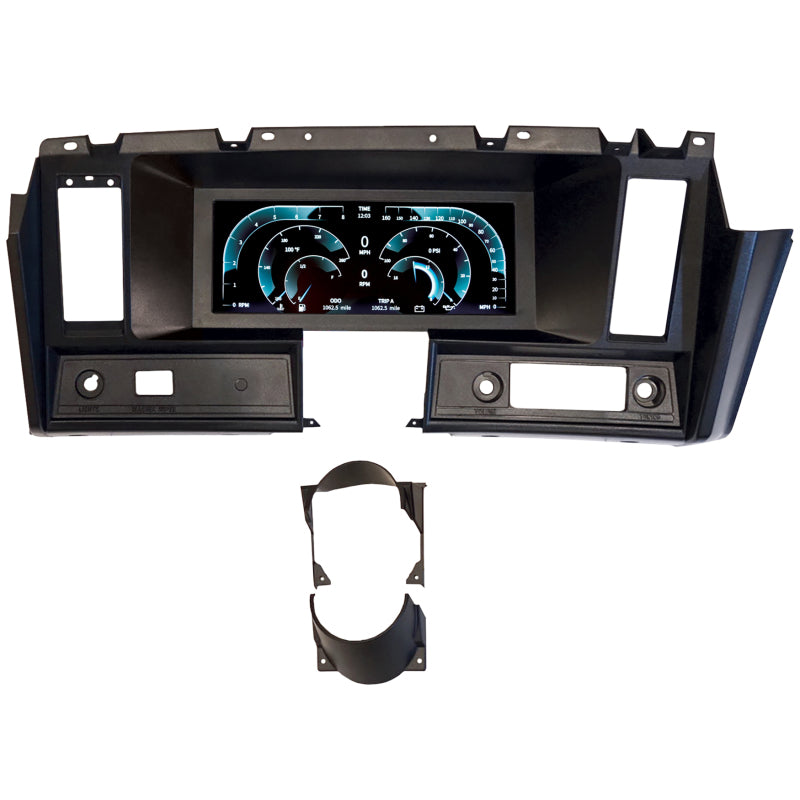

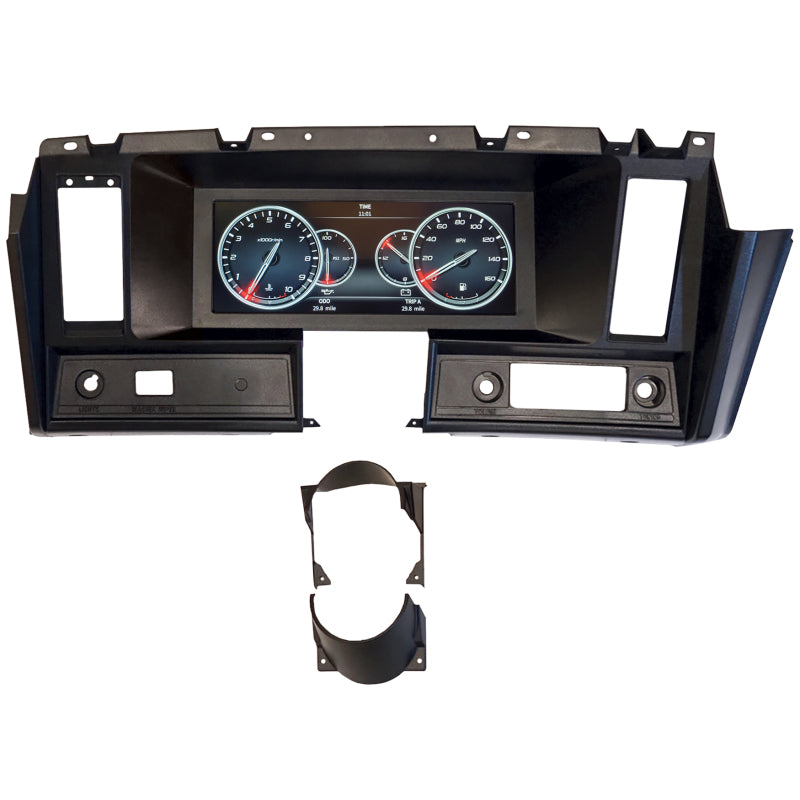

AutoMeter's enormously popular InVision line of products continues to grow with a new application available for the 1969 Chevy Camaro! This complete direct-fit dash system comes with everything needed to monitor the most vital parameters on your vehicle - speedometer, tachometer, oil pressure, water temperature, fuel level, and voltmeter. All instruments are displayed on a high-resolution and vivid 12.3" LCD screen. With everything you need from integrated turn signals and high beam indicators to a universal wire harness to sending units for temperature and pressure - this is the perfect instrumentation solution for your 69 Camaro!
Installation Instructions- Direct-fit instrumentation solution for 1969 Chevrolet Camaro that monitors speedometer, tachometer, water temperature, oil pressure, fuel level, and volts all in a high resolution and colorful display
- Includes steering column neck sleeves, universal wiring harness, and sending units for water temperature and oil pressure as well as a joystick for dash customization
- Speedometer easily calibrates to OEM or aftermarket vehicle speed sensors and the tachometer is capable of calibrating to many engine types (1-12 cylinders)
- Helps identify critical parameters with visual or audible alarms - low fuel level/oil pressure/voltage and high water temperature
- Integrated notifications for high beams and turn signals as well as instrument warnings and a user selectable warning light
- User-selectable fuel level resistance ranges designed for OEM and aftermarket sending units
- Displays output programmable for imperial or metric measurements
- Requires no cutting, drilling or modification to factory pieces
- 12.3? LCD display with four user selectable screens
This Part Fits:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1969 | Chevrolet | Camaro | Base |
| 1969 | Chevrolet | Camaro | RS |
| 1969 | Chevrolet | Camaro | SS |
| 1969 | Chevrolet | Camaro | Z28 |
