Advanced Clutch VW8-HDG6 ACT Heavy Duty Race Sprung 6 Pad Clutch Kit

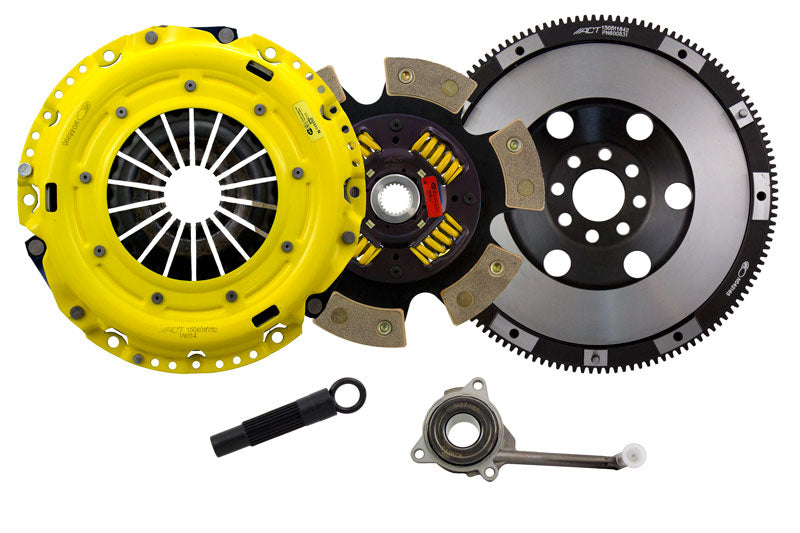

VW8-HDG6 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad, spring-centered race disc features a spring-center to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad, spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad, spring-centered disc is recommended for larger clutch sizes to absorb more heat.

Advanced Clutch VW8-HDG6 ACT Heavy Duty Race Sprung 6 Pad Clutch Kit

Specifications:

3390	Performance
7453	New
9396	No
9414	Yes
10022	No
Flywheel Type	Streetlite
Part Fitment Requirement	Must use ACT flywheel (included in kit). Flywheel bolts included (M10-1.0 x 22mm). Pressure plate bolts included (M7-1.0 x 18mm).
Product Weight (lbs.)	29.9
Prop 65 - Short Label	WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Prop 65 Long Label	Warning: This product can expose you to chemicals including carbon black, glass wool fibers, or silica (in clutch discs), chromium and nickel, which are known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65Warnings.ca.gov
Prop 65 Yes/No	Yes
Title	ACT HD/Race Sprung 6 Pad Kit
Torque Capacity (ft/lbs.)	505
Torque Capacity Over OE	66%
458	Yes
460	Heavy Duty
461	Yes
462	9.4
462	240
463	Ceramic
464	23
465	0.9375
466	Yes
467	Sprung
3377	Yes
Description_SHO	Clutch Kit
Description_INV	ACT HD/Race Sprung 6 Pad Kit
Description_ASC	Light to moderate pedal effort, aggressive engagement, OE to mild gear rattle; Moderate friction life, extended by ACT's exclusive diaphragm design; Carefully engineered, precisely assembled, accurately balanced, uses select ceramic friction materials for high heat tolerance and maximum performance; Recommended for high horsepower street or race use; 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability
Description_KSW	clutch kit;heavy duty;spring-centered;race disc;6 pad;sprung disc;6 puck
Description_LAB	ACT HD/Race Sprung 6 Pad Clutch Kit
Description_DES	ACT Heavy Duty Race Sprung 6 Pad Clutch Kit
Description_EXT	HD/Race Sprung 6 Pad
Description_MKT	VW8-HDG6 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad, spring-centered race disc features a spring-center to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad, spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad, spring-centered disc is recommended for larger clutch sizes to absorb more heat.
Description_FAB	"Excellence in Performance", backed by the best one-year warranty in the industry!
Description_DEF	Transmission Clutch Kit

This Part Fits:

Year	Make	Model	Submodel	Notes
2008	Audi	A3	Attraction Plus
2008	Audi	A3	Base
2009	Audi	A3	Base
2010	Audi	A3	Base
2011	Audi	A3	Base
2012	Audi	A3	Base
2013	Audi	A3	Base
2008	Audi	A3	S Line
2014	Volkswagen	Beetle	GSR
2013	Volkswagen	Beetle	R-Line
2014	Volkswagen	Beetle	R-Line
2015	Volkswagen	Beetle	R-Line
2016	Volkswagen	Beetle	R-Line S
2016	Volkswagen	Beetle	R-Line SE
2016	Volkswagen	Beetle	R-Line SEL
2012	Volkswagen	Beetle	Sportline
2013	Volkswagen	Beetle	Sportline
2014	Volkswagen	Beetle	Sportline
2015	Volkswagen	Beetle	Sportline
2012	Volkswagen	Beetle	Turbo
2013	Volkswagen	Beetle	Turbo
2011	Volkswagen	CC	Highline
2012	Volkswagen	CC	Highline
2011	Volkswagen	CC	R-Line
2012	Volkswagen	CC	R-Line
2013	Volkswagen	CC	R-Line
2014	Volkswagen	CC	R-Line
2015	Volkswagen	CC	R-Line
2016	Volkswagen	CC	R-Line
2009	Volkswagen	CC	Sport
2010	Volkswagen	CC	Sport
2011	Volkswagen	CC	Sport
2012	Volkswagen	CC	Sport
2013	Volkswagen	CC	Sport
2014	Volkswagen	CC	Sport
2015	Volkswagen	CC	Sport
2013	Volkswagen	CC	Sport Plus
2011	Volkswagen	CC	Sportline
2012	Volkswagen	CC	Sportline
2013	Volkswagen	CC	Sportline
2014	Volkswagen	CC	Sportline
2015	Volkswagen	CC	Sportline
2016	Volkswagen	CC	Trend
2009	Volkswagen	Eos	Comfortline
2010	Volkswagen	Eos	Comfortline
2011	Volkswagen	Eos	Comfortline
2011	Volkswagen	Eos	Highline
2009	Volkswagen	Eos	Komfort
2010	Volkswagen	Eos	Komfort
2011	Volkswagen	Eos	Komfort
2013	Volkswagen	Golf	GTI
2008	Volkswagen	GTI	Base
2009	Volkswagen	GTI	Base
2010	Volkswagen	GTI	Base
2011	Volkswagen	GTI	Base
2012	Volkswagen	GTI	Base
2013	Volkswagen	GTI	Base
2014	Volkswagen	GTI	Driver's Edition
2014	Volkswagen	GTI	Wolfsburg Edition
2008	Volkswagen	Jetta	2.0T
2015	Volkswagen	Jetta	GLI Autobahn
2016	Volkswagen	Jetta	GLI Autobahn
2015	Volkswagen	Jetta	GLI SE
2016	Volkswagen	Jetta	GLI SE
2015	Volkswagen	Jetta	GLI SEL
2016	Volkswagen	Jetta	GLI SEL
2009	Volkswagen	Jetta	SEL
2009	Volkswagen	Jetta	TDI
2010	Volkswagen	Jetta	TDI
2010	Volkswagen	Jetta	TDI Cup Edition
2008	Volkswagen	Jetta	Wolfsburg Edition
2009	Volkswagen	Jetta	Wolfsburg Edition
2010	Volkswagen	Jetta	Wolfsburg Edition
2009	Volkswagen	Passat CC	Sportline
2010	Volkswagen	Passat CC	Sportline
