*item may differ from images

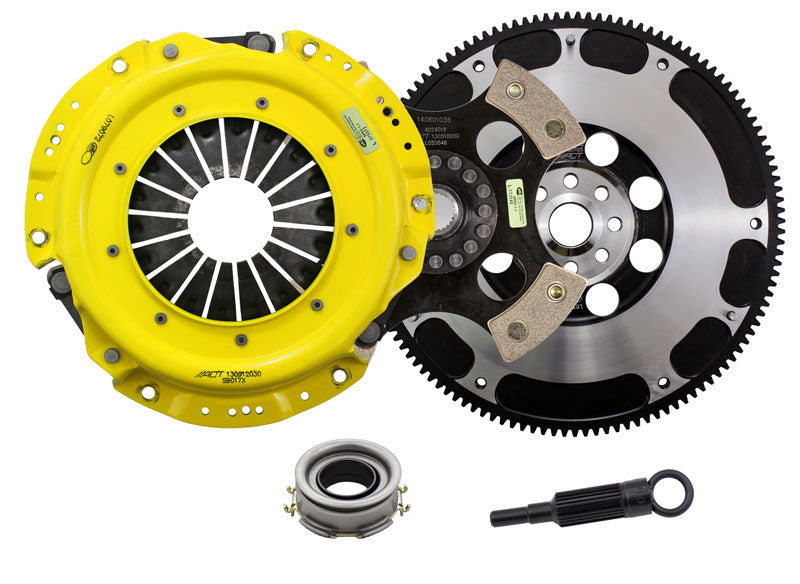

SB7-XTR4 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 4-pad rigid race disc, engagement is harsher, but shifting is faster. The 4-pad rigid race disc is well-suited for the smaller disc sizes in smaller engines.
Advanced Clutch SB7-XTR4 ACT Extreme Race Rigid 4 Pad Clutch Kit
Specifications:
| Part Fitment Requirement | Conversion kit. Includes ACT Streetlite flywheel. Must use ACT flywheel (included in kit). Flywheel bolts included (M10-1.0 x 25mm). Pressure plate bolts included (M8-1.25 x 16mm). |
| Product Weight (lbs.) | 24.7 |
| Prop 65 - Short Label | WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov |
| Prop 65 Long Label | Warning: This product can expose you to chemicals including carbon black, glass wool fibers, or silica (in clutch discs), chromium and nickel, which are known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65Warnings.ca.gov |
| Prop 65 Yes/No | Yes |
| Title | ACT XT/Race Rigid 4 Pad Kit |
| Torque Capacity (ft/lbs.) | 449 |
| Torque Capacity Over OE | 166% |
| 458 | Yes |
| 460 | Xtreme |
| 461 | Yes |
| 462 | 8.8 |
| 462 | 224 |
| 463 | Ceramic |
| 464 | 24 |
| 465 | 1 |
| 466 | Yes |
| 467 | Solid |
| 3377 | Yes |
| 3390 | Performance |
| 7453 | New |
| 9396 | No |
| 9414 | Yes |
| 10022 | No |
| Flywheel Type | Streetlite |
| Description_SHO | Clutch Kit |
| Description_INV | ACT XT/Race Rigid 4 Pad Kit |
| Description_ASC | Moderate to heavy pedal effort, aggressive engagement, increased gear rattle; Moderate friction life, extended by ACT's exclusive diaphragm design, rigid design may increase spline wear; Carefully engineered, precisely assembled, accurately balanced, uses select ceramic friction materials for high heat tolerance and maximum performance; Recommended for race use only; 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability |
| Description_KSW | clutch kit;xtreme;rigid;solid hub;race disc;4 pad;solid disc;4 puck |
| Description_LAB | ACT XT/Race Rigid 4 Pad Clutch Kit |
| Description_DES | ACT Extreme Race Rigid 4 Pad Clutch Kit |
| Description_EXT | XT/Race Rigid 4 Pad |
| Description_MKT | SB7-XTR4 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 4-pad rigid race disc, engagement is harsher, but shifting is faster. The 4-pad rigid race disc is well-suited for the smaller disc sizes in smaller engines. |
| Description_FAB | "Excellence in Performance", backed by the best one-year warranty in the industry! |
| Description_DEF | Transmission Clutch Kit |
This Part Fits:
| Year | Make | Model | Submodel | Notes |
|---|---|---|---|---|
| 2013 | Scion | FR-S | Base | |
| 2014 | Scion | FR-S | Base | |
| 2015 | Scion | FR-S | Base | |
| 2016 | Scion | FR-S | Base | |
| 2015 | Subaru | BRZ | Aozora Edition | |
| 2013 | Subaru | BRZ | Base | |
| 2014 | Subaru | BRZ | Base | |
| 2015 | Subaru | BRZ | Base | |
| 2016 | Subaru | BRZ | Base | |
| 2017 | Subaru | BRZ | Base | |
| 2018 | Subaru | BRZ | Base | |
| 2019 | Subaru | BRZ | Base | |
| 2020 | Subaru | BRZ | Base | |
| 2013 | Subaru | BRZ | Limited | |
| 2014 | Subaru | BRZ | Limited | |
| 2015 | Subaru | BRZ | Limited | |
| 2016 | Subaru | BRZ | Limited | |
| 2017 | Subaru | BRZ | Limited | |
| 2018 | Subaru | BRZ | Limited | |
| 2019 | Subaru | BRZ | Limited | |
| 2020 | Subaru | BRZ | Limited | |
| 2013 | Subaru | BRZ | Premium | |
| 2014 | Subaru | BRZ | Premium | |
| 2015 | Subaru | BRZ | Premium | |
| 2016 | Subaru | BRZ | Premium | |
| 2017 | Subaru | BRZ | Premium | |
| 2018 | Subaru | BRZ | Premium | |
| 2019 | Subaru | BRZ | Premium | |
| 2015 | Subaru | BRZ | Series.Blue | |
| 2019 | Subaru | BRZ | Series.Gray | |
| 2016 | Subaru | BRZ | Series.HyperBlue | |
| 2013 | Subaru | BRZ | Sport-tech | |
| 2014 | Subaru | BRZ | Sport-tech | |
| 2015 | Subaru | BRZ | Sport-tech | |
| 2016 | Subaru | BRZ | Sport-tech | |
| 2017 | Subaru | BRZ | Sport-tech | |
| 2018 | Subaru | BRZ | Sport-tech | |
| 2018 | Subaru | BRZ | Sport-tech RS | |
| 2019 | Subaru | BRZ | Sport-tech RS | |
| 2020 | Subaru | BRZ | Sport-tech RS | |
| 2018,2020 | Subaru | BRZ | TS | |
| 2017 | Toyota | 86 | Base | |
| 2018 | Toyota | 86 | Base | |
| 2019 | Toyota | 86 | Base | |
| 2020 | Toyota | 86 | Base | |
| 2018 | Toyota | 86 | GT | |
| 2019 | Toyota | 86 | GT | |
| 2020 | Toyota | 86 | GT | |
| 2020 | Toyota | 86 | Hakone Edition | |
| 2017 | Toyota | 86 | Special Edition | |
| 2019 | Toyota | 86 | TRD Special Edition |
