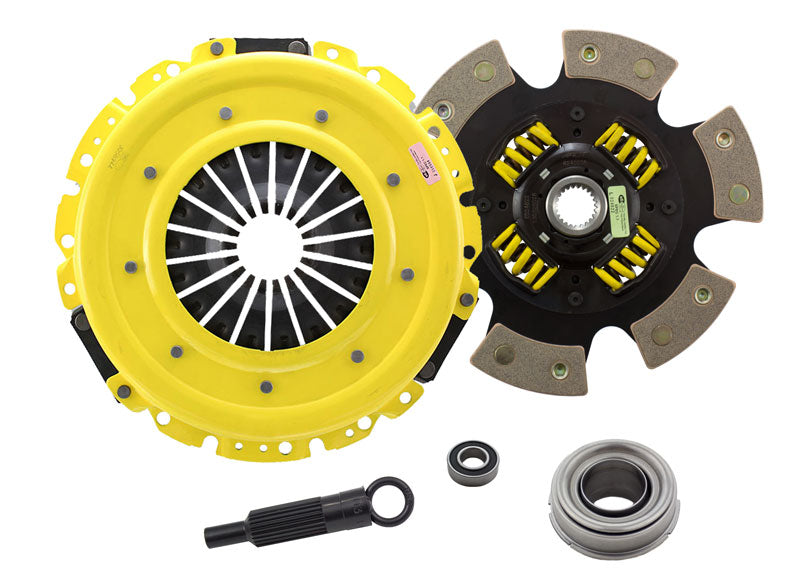

Advanced Clutch MS1-XXG6 ACT Max Extreme Race Sprung 6 Pad Clutch Kit

MS1-XXG6 kit features a MaXX pressure plate for the serious enthusiast. ACT MaXX pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad, spring-centered race disc features a spring-center construction to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad, spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad, spring-centered disc is recommended for larger clutch sizes to absorb more heat.

Advanced Clutch MS1-XXG6 ACT Max Extreme Race Sprung 6 Pad Clutch Kit

Specifications:

Product Weight (lbs.)	16.6
Prop 65 - Short Label	WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Prop 65 Long Label	Warning: This product can expose you to chemicals including carbon black, glass wool fibers, or silica (in clutch discs), chromium and nickel, which are known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65Warnings.ca.gov
Prop 65 Yes/No	Yes
Title	ACT MaXX/Race Sprung 6 Pad Kit
Torque Capacity (ft/lbs.)	625
Torque Capacity Over OE	156%
459	No
460	Maxx Xtreme
461	Yes
462	9.4
462	240
463	Ceramic
464	23
465	1
466	Yes
467	Sprung
3377	Yes
3390	Performance
7453	New
9396	No
9785	Yes
10022	No
Description_SHO	Clutch Kit
Description_INV	ACT MaXX/Race Sprung 6 Pad Kit
Description_ASC	Heavy to very heavy pedal effort, aggressive engagement, quick shifts, mild to moderate gear rattle; Moderate friction life, extended by ACT's exclusive diaphragm design; Carefully engineered, precisely assembled, accurately balanced, uses select ceramic friction materials for high heat tolerance and maximum performance; Recommended for high horsepower street or race use; 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability
Description_KSW	clutch kit;max xtreme;spring-centered;race disc;6 pad;sprung disc;6 puck
Description_LAB	ACT MaXX/Race Sprung 6 Pad Clutch Kit
Description_DES	ACT Max Extreme Race Sprung 6 Pad Clutch Kit
Description_EXT	MaXX/Race Sprung 6 Pad
Description_MKT	MS1-XXG6 kit features a MaXX pressure plate for the serious enthusiast. ACT MaXX pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad, spring-centered race disc features a spring-center construction to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad, spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad, spring-centered disc is recommended for larger clutch sizes to absorb more heat.
Description_FAB	"Excellence in Performance", backed by the best one-year warranty in the industry!
Description_DEF	Transmission Clutch Kit

This Part Fits:

Year	Make	Model	Submodel	Notes
1987	Chrysler	Conquest	Base	Fitment begins 06/87.
1988	Chrysler	Conquest	TSi	Fitment ends 05/89.
1989	Chrysler	Conquest	TSi	Fitment ends 05/89.
1988	Mitsubishi	Starion	ESi
1987	Mitsubishi	Starion	ESi-R	Fitment begins 06/87.,Fitment ends 05/89.
1988	Mitsubishi	Starion	ESi-R	Fitment begins 06/87.,Fitment ends 05/89.
1989	Mitsubishi	Starion	ESi-R	Fitment begins 06/87.,Fitment ends 05/89.
