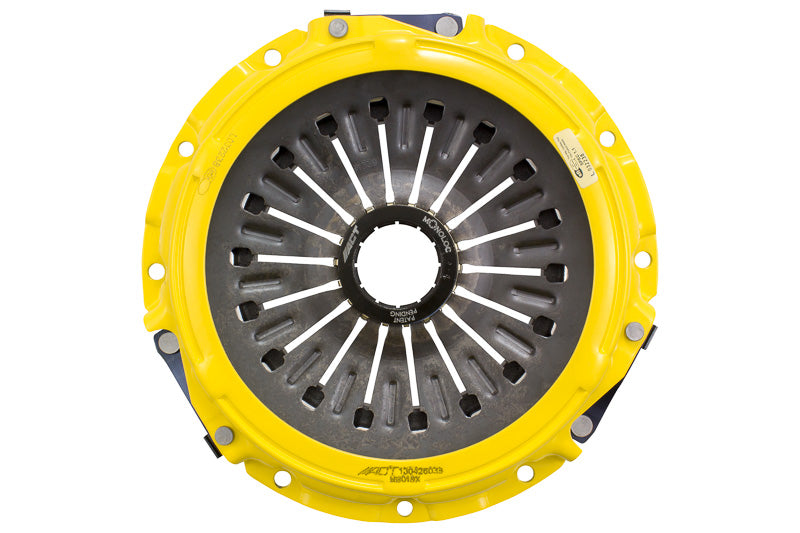

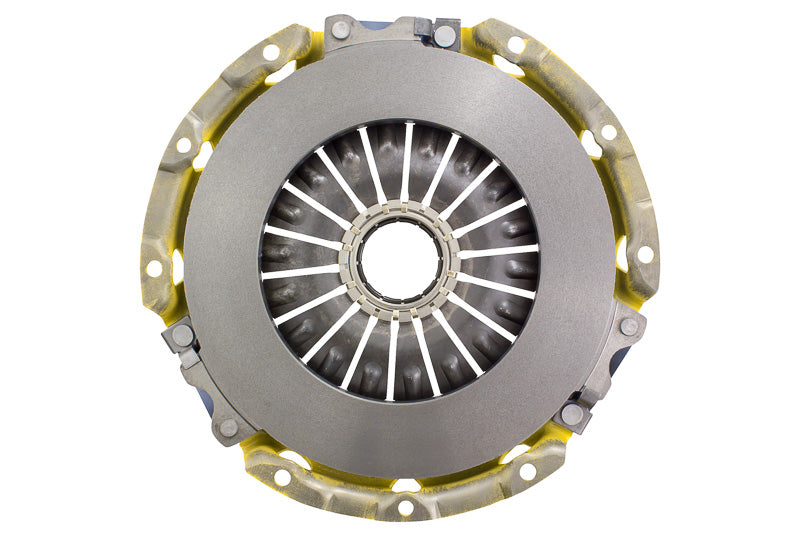

Advanced Clutch MB018X Transmission Clutch Pressure Plate

MB018X is an ACT pressure plate that uses exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's Xtreme pressure plates increase clamp load by 50 to 120 percent. Xtreme pressure plates are recommended for use with a street or race disc. Monoloc is a one-piece, direct replacement or upgrade to the standard, two-piece wedge collar and wire ring featured in pull-type clutches. The spring tension of the segmented retaining ring is carefully calculated and tested for optimal performance. It provides uniform loading on the bearing and pressure plate to assure proper alignment, regardless of driver influence or vehicle modifications. Monoloc's hardened chrome-moly steel construction will provide years of service.

Advanced Clutch MB018X Transmission Clutch Pressure Plate

Specifications:

Part Fitment Requirement	Includes ACT Monoloc.
Product Weight (lbs.)	12.4
Prop 65 - Short Label	WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Prop 65 Long Label	Warning: This product can expose you to chemicals including carbon black, glass wool fibers, or silica (in clutch discs), chromium and nickel, which are known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65Warnings.ca.gov
Prop 65 Yes/No	Yes
SFI	1.1
Title	ACT Xtreme Pressure Plate
26	Xtreme
111	9.4
111	240
452	No
3390	Performance
Description_SHO	Pressure Plate
Description_INV	ACT Xtreme Pressure Plate
Description_ASC	Moderate to heavy pedal effort, confidence during hard shifts, positive engagement; Available life extended by ACT's exclusive diaphragm design, dramatic improvement in release mechanism life; Carefully engineered for improved durability, precisely assembled, accurately balanced, major improvement in release mechanism; Recommended for street and race use; 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability, includes ACT's patented Monoloc
Description_KSW	pressure plate;clutch cover;xtreme;diaphragm;monoloc;clutch face;SFI
Description_LAB	ACT Xtreme Clutch Pressure Plate
Description_DES	ACT Extreme Clutch Pressure Plate
Description_EXT	Xtreme Pressure Plate
Description_MKT	MB018X is an ACT pressure plate that uses exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's Xtreme pressure plates increase clamp load by 50 to 120 percent. Xtreme pressure plates are recommended for use with a street or race disc. Monoloc is a one-piece, direct replacement or upgrade to the standard, two-piece wedge collar and wire ring featured in pull-type clutches. The spring tension of the segmented retaining ring is carefully calculated and tested for optimal performance. It provides uniform loading on the bearing and pressure plate to assure proper alignment, regardless of driver influence or vehicle modifications. Monoloc's hardened chrome-moly steel construction will provide years of service.
Description_FAB	"Excellence in Performance", backed by the best one-year warranty in the industry!
Description_DEF	Transmission Clutch Pressure Plate

This Part Fits:

Year	Make	Model	Submodel	Notes
2003	Mitsubishi	Lancer	Evolution
2004	Mitsubishi	Lancer	Evolution
2005	Mitsubishi	Lancer	Evolution
2006	Mitsubishi	Lancer	Evolution
2005	Mitsubishi	Lancer	Evolution MR
2006	Mitsubishi	Lancer	Evolution MR
2005	Mitsubishi	Lancer	Evolution RS
2006	Mitsubishi	Lancer	Evolution RS
2006	Mitsubishi	Lancer	Evolution SE
