*item may differ from images
HA3-HDR4 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 4-pad rigid race disc, engagement is harsher, but shifting is faster. The 4-pad rigid race disc is well-suited for the smaller disc sizes in smaller engines.

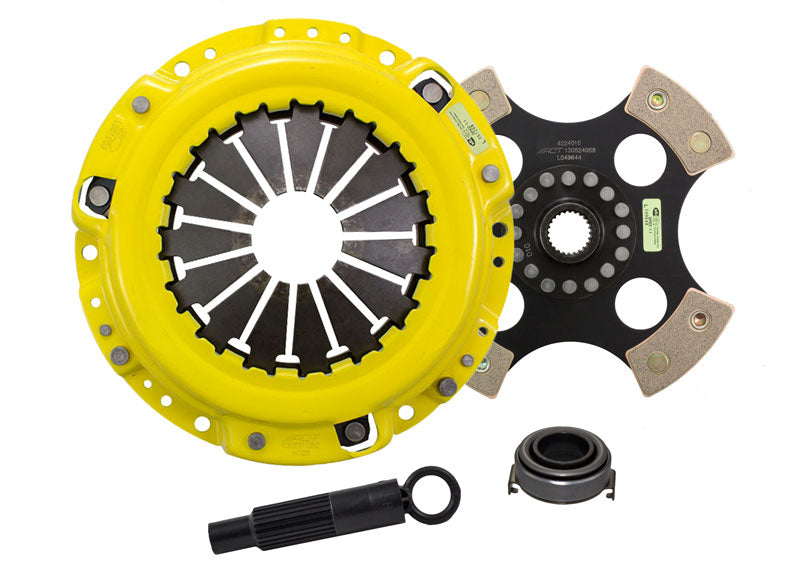

Advanced Clutch HA3-HDR4 ACT Heavy Duty Race Rigid 4 Pad Clutch Kit
Specifications:
| Product Weight (lbs.) | 11.6 |
| Prop 65 - Short Label | WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov |
| Prop 65 Long Label | Warning: This product can expose you to chemicals including carbon black, glass wool fibers, or silica (in clutch discs), chromium and nickel, which are known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65Warnings.ca.gov |
| Prop 65 Yes/No | Yes |
| Title | ACT HD/Race Rigid 4 Pad Kit |
| Torque Capacity (ft/lbs.) | 355 |
| Torque Capacity Over OE | 80% |
| 460 | Heavy Duty |
| 461 | Yes |
| 462 | 8.8 |
| 462 | 224 |
| 463 | Ceramic |
| 464 | 24 |
| 465 | 1.03125 |
| 466 | Yes |
| 467 | Solid |
| 3377 | Yes |
| 3390 | Performance |
| 7453 | New |
| 9396 | No |
| 10022 | No |
| Description_SHO | Clutch Kit |
| Description_INV | ACT HD/Race Rigid 4 Pad Kit |
| Description_ASC | Light to moderate pedal effort, aggressive engagement, increased gear rattle; Moderate friction life, extended by ACT's exclusive diaphragm design, rigid design may increase spline wear; Carefully engineered, precisely assembled, accurately balanced, uses select ceramic friction materials for high heat tolerance and maximum performance; Recommended for race use only; 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability |
| Description_KSW | clutch kit;heavy duty;rigid;solid hub;race disc;4 pad;solid disc;4 puck |
| Description_LAB | ACT HD/Race Rigid 4 Pad Clutch Kit |
| Description_DES | ACT Heavy Duty Race Rigid 4 Pad Clutch Kit |
| Description_EXT | HD/Race Rigid 4 Pad |
| Description_MKT | HA3-HDR4 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 4-pad rigid race disc, engagement is harsher, but shifting is faster. The 4-pad rigid race disc is well-suited for the smaller disc sizes in smaller engines. |
| Description_FAB | "Excellence in Performance", backed by the best one-year warranty in the industry! |
| Description_DEF | Transmission Clutch Kit |
This Part Fits:
| Year | Make | Model | Submodel | Notes |
|---|---|---|---|---|
| 1997 | Acura | CL | Base | |
| 1998 | Acura | CL | Base | |
| 1997 | Acura | CL | Premium | |
| 1998 | Acura | CL | Premium | |
| 1999 | Acura | CL | Premium | |
| 1990 | Honda | Accord | DX | |
| 1991 | Honda | Accord | DX | |
| 1992 | Honda | Accord | DX | |
| 1993 | Honda | Accord | DX | |
| 1994 | Honda | Accord | DX | |
| 1995 | Honda | Accord | DX | |
| 1996 | Honda | Accord | DX | |
| 1997 | Honda | Accord | DX | |
| 1998 | Honda | Accord | DX | |
| 1999 | Honda | Accord | DX | |
| 2000 | Honda | Accord | DX | |
| 2001 | Honda | Accord | DX | |
| 2002 | Honda | Accord | DX | |
| 1990 | Honda | Accord | EX | |
| 1991 | Honda | Accord | EX | |
| 1992 | Honda | Accord | EX | |
| 1993 | Honda | Accord | EX | |
| 1994 | Honda | Accord | EX | |
| 1995 | Honda | Accord | EX | |
| 1996 | Honda | Accord | EX | |
| 1997 | Honda | Accord | EX | |
| 1998 | Honda | Accord | EX | |
| 1999 | Honda | Accord | EX | |
| 2000 | Honda | Accord | EX | |
| 2001 | Honda | Accord | EX | |
| 2002 | Honda | Accord | EX | |
| 1990 | Honda | Accord | LX | |
| 1991 | Honda | Accord | LX | |
| 1992 | Honda | Accord | LX | |
| 1993 | Honda | Accord | LX | |
| 1994 | Honda | Accord | LX | |
| 1995 | Honda | Accord | LX | |
| 1996 | Honda | Accord | LX | |
| 1997 | Honda | Accord | LX | |
| 1998 | Honda | Accord | LX | |
| 1999 | Honda | Accord | LX | |
| 2000 | Honda | Accord | LX | |
| 2001 | Honda | Accord | LX | |
| 2002 | Honda | Accord | LX | |
| 1991 | Honda | Accord | SE | |
| 1997 | Honda | Prelude | Base | |
| 1998 | Honda | Prelude | Base | |
| 1999 | Honda | Prelude | Base | |
| 2000 | Honda | Prelude | Base | |
| 2001 | Honda | Prelude | Base | |
| 1992 | Honda | Prelude | S | |
| 1993 | Honda | Prelude | S | |
| 1994 | Honda | Prelude | S | |
| 1995 | Honda | Prelude | S | |
| 1996 | Honda | Prelude | S | |
| 1995 | Honda | Prelude | SE | |
| 1992 | Honda | Prelude | Si | |
| 1993 | Honda | Prelude | Si | |
| 1994 | Honda | Prelude | Si | |
| 1995 | Honda | Prelude | Si | |
| 1996 | Honda | Prelude | Si | |
| 1992 | Honda | Prelude | Si 4WS | |
| 1993 | Honda | Prelude | Si 4WS | |
| 1994 | Honda | Prelude | Si 4WS | |
| 1997 | Honda | Prelude | Type SH | |
| 1998 | Honda | Prelude | Type SH | |
| 1999 | Honda | Prelude | Type SH | |
| 2000 | Honda | Prelude | Type SH | |
| 2001 | Honda | Prelude | Type SH | |
| 1993 | Honda | Prelude | VTEC | |
| 1994 | Honda | Prelude | VTEC | |
| 1995 | Honda | Prelude | VTEC | |
| 1996 | Honda | Prelude | VTEC |
