H025XX pressure plate uses exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All ACT diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's MaXX Xtreme pressure plates increase clamp load by 70 to 150 percent. MaXX Xtreme pressure plates are recommended for use with a race disc.

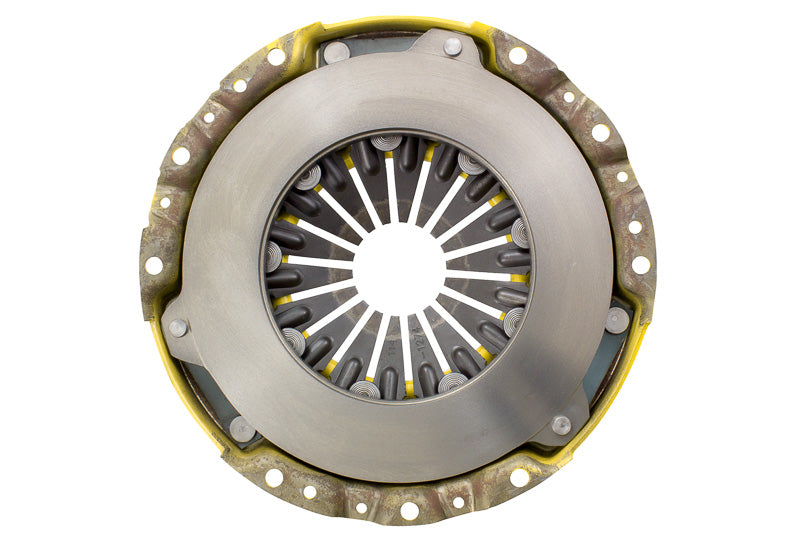

Advanced Clutch H025XX ACT Maxx Extreme Clutch Pressure Plate
Specifications:
| Product Weight (lbs.) | 9.4 |
| Prop 65 - Short Label | WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov |
| Prop 65 Long Label | Warning: This product can expose you to chemicals including carbon black, glass wool fibers, or silica (in clutch discs), chromium and nickel, which are known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65Warnings.ca.gov |
| Prop 65 Yes/No | Yes |
| SFI | 1.1 |
| Title | ACT MaXX Xtreme Pressure Plate |
| 26 | MaXX |
| 111 | 8.7 |
| 111 | 220 |
| 452 | No |
| 3390 | Performance |
| Description_SHO | Pressure Plate |
| Description_INV | ACT MaXX Xtreme Pressure Plate |
| Description_ASC | Heavy to very heavy pedal effort, positive engagement; Available disc life extended by ACT's exclusive diaphragm design; Carefully engineered for improved durability, precisely assembled, accurately balanced; Recommended for race use only; 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability |
| Description_KSW | pressure plate;clutch cover;max xtreme;diaphragm;clutch plate;clutch face;SFI |
| Description_LAB | ACT MaXX Xtreme Clutch Pressure Plate |
| Description_DES | ACT Maxx Extreme Clutch Pressure Plate |
| Description_EXT | MaXX Xtreme Pressure Plate |
| Description_MKT | H025XX pressure plate uses exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All ACT diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's MaXX Xtreme pressure plates increase clamp load by 70 to 150 percent. MaXX Xtreme pressure plates are recommended for use with a race disc. |
| Description_FAB | "Excellence in Performance", backed by the best one-year warranty in the industry! |
| Description_DEF | Transmission Clutch Pressure Plate |
This Part Fits:
| Year | Make | Model | Submodel | Notes |
|---|---|---|---|---|
| 1992 | Acura | Integra | GS-R | |
| 1993 | Acura | Integra | GS-R | |
| 1994 | Acura | Integra | GS-R | |
| 1995 | Acura | Integra | GS-R | |
| 1996 | Acura | Integra | GS-R | |
| 1997 | Acura | Integra | GS-R | |
| 1998 | Acura | Integra | GS-R | |
| 1999 | Acura | Integra | GS-R | |
| 2000 | Acura | Integra | GS-R | |
| 2001 | Acura | Integra | GS-R | |
| 1990 | Acura | Integra | LS | |
| 1991 | Acura | Integra | LS | |
| 1992 | Acura | Integra | LS | |
| 1993 | Acura | Integra | LS | |
| 1994 | Acura | Integra | LS | |
| 1995 | Acura | Integra | LS | |
| 1996 | Acura | Integra | LS | |
| 1997 | Acura | Integra | LS | |
| 1998 | Acura | Integra | LS | |
| 1999 | Acura | Integra | LS | |
| 2000 | Acura | Integra | LS | |
| 2001 | Acura | Integra | LS | |
| 1990 | Acura | Integra | RS | |
| 1991 | Acura | Integra | RS | |
| 1992 | Acura | Integra | RS | |
| 1993 | Acura | Integra | RS | |
| 1994 | Acura | Integra | RS | |
| 1995 | Acura | Integra | RS | |
| 1996 | Acura | Integra | RS | |
| 1997 | Acura | Integra | RS | |
| 1998 | Acura | Integra | RS | |
| 1995 | Acura | Integra | Special Edition | |
| 1996 | Acura | Integra | Special Edition | |
| 1997 | Acura | Integra | Type R | |
| 1998 | Acura | Integra | Type R | |
| 1999 | Acura | Integra | Type R | |
| 2000 | Acura | Integra | Type R | |
| 2001 | Acura | Integra | Type R | |
| 1999 | Honda | Civic | Si | |
| 2000 | Honda | Civic | Si | |
| 1994 | Honda | Civic del Sol | VTEC | |
| 1995 | Honda | Civic del Sol | VTEC | |
| 1996 | Honda | Civic del Sol | VTEC | |
| 1997 | Honda | Civic del Sol | VTEC | |
| 1998 | Honda | CR-V | EX | |
| 1999 | Honda | CR-V | EX | |
| 2000 | Honda | CR-V | EX | |
| 2001 | Honda | CR-V | EX | |
| 1998 | Honda | CR-V | LX | |
| 1999 | Honda | CR-V | LX | |
| 2000 | Honda | CR-V | LX | |
| 2001 | Honda | CR-V | LX |
