*item may differ from images
Description
PLEASE ALLOW AN ADDITIONAL TWO WEEKS FOR POWDERCOATED INTERCOOLERS TO BE PROCESSED AND SHIPPED.
Fits all 2022+ Civic 1.5T
Fits all variant models including Si, CVT, 6MT, RHD, International Models, Etc.
Overview:
INTERCOOLER INSTALL GUIDE
Important Notes:
- NO ECU CALIBRATION REQUIRED
- FITS FACTORY CHARGE PIPING
- PAIR WITH OUR CHARGE PIPE UPGRADE KIT FOR OPTIMAL PERFORMANCE
Technical Notes:

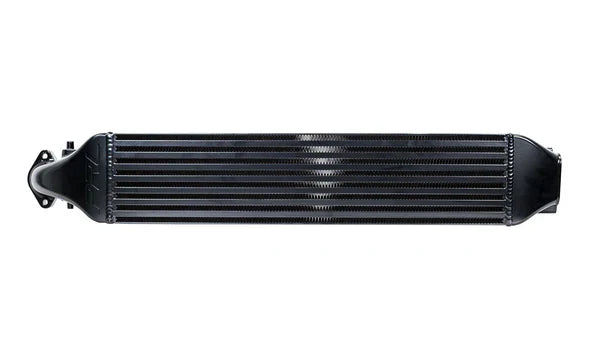

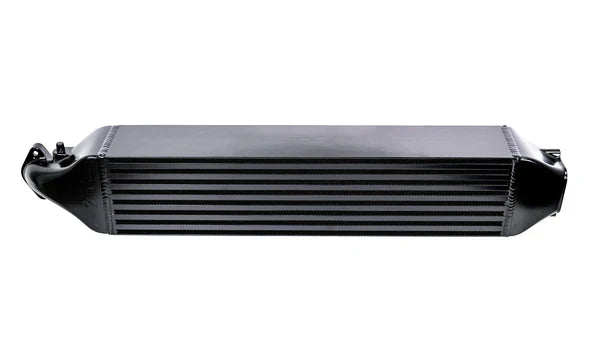

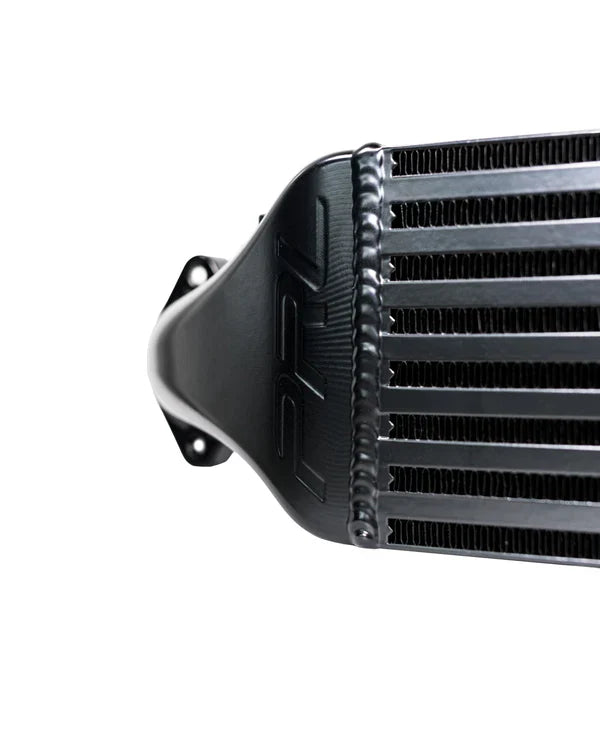

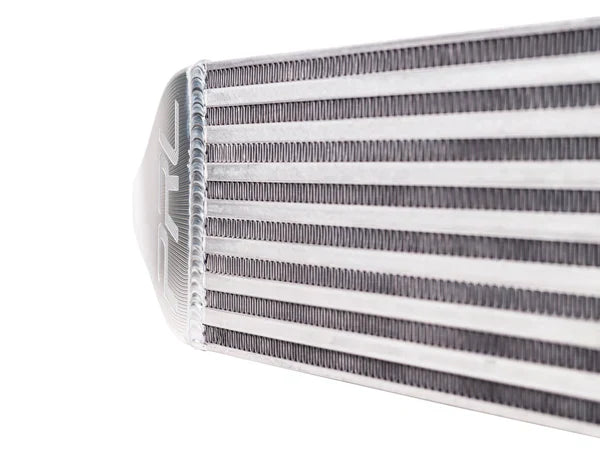

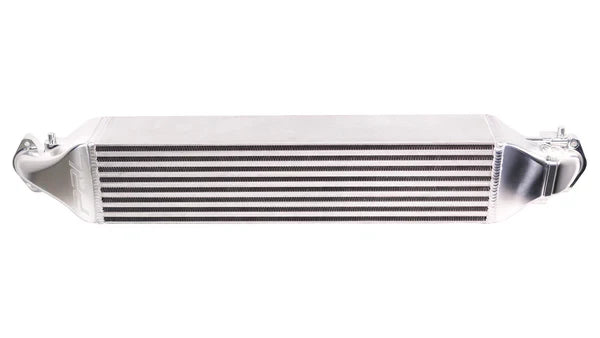

It’s no secret that Honda’s 1.5L turbo Civic is extremely susceptible to heat-soak, especially when retaining the factory intercooler. Excessive heat-soak increases the risk of detonation and causes major power-loss due to high charge air and cylinder temperatures. These issues become even more prevalent with spirited driving and/or increased power outputs. The PRL Motorsports intercooler upgrade decreases charge air temperatures while increasing potential airflow with its dense 550+ horsepower rated (though we have pushed 600+) 21.6x4.5x5.9” bar-and-plate bar-and-plate core and machined billet aluminum end tanks! This intercooler utilizes factory mounting spots with our embossed end tanks. Kits will come with all hardware needed for a seamless install.
Performance Gains:
- Drastically reduced charge air temperatures
- Testing showed up to a decrease of 108 degrees (F) when comparing to the factory intercooler
- Increased efficiency & consistency in power delivery
- Testing showed up to a 40% increase in cooling efficiency when comparing to the factory intercooler
- Testing showed up to 9 horsepower gains on a stock vehicle
- Increased engine safety
Kit Includes:
- (1) Intercooler Assembly w/ Billet End Tanks
- (2) Mounting Brackets w/ Stainless Hardware

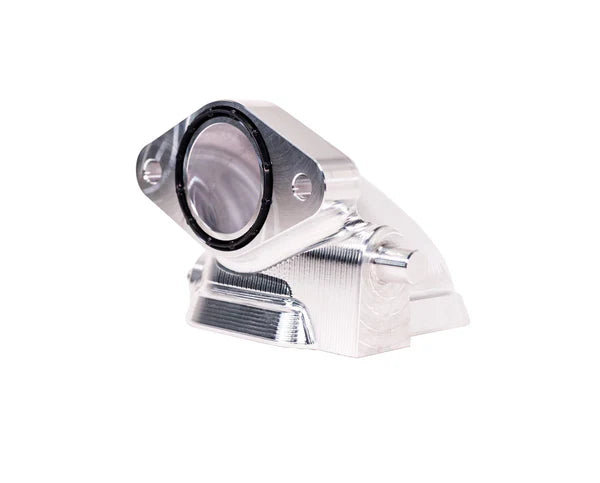

- (2) Billet Aluminum Factory Charge Pipe Adapters
- (1) Cardboard Stencil w/ “PRL” Logo
- (2) PRL Factory Style Replacement O-Rings
Testing Data:
