ICON Vehicle Dynamics 48500DJ 21-23 BRONCO BILLET UCA DJ PRO KIT

Delta Joint PRO is ICON's innovative new suspension articulation joint which combines the durability and longevity of factory style ball joints with performance and strength that exceeds traditional motorsports-style ball joints. Strength and durability are improved by using a larger ball with 56% more bearing surface than our standard Delta Joint, along with improved lubrication sealing. But improved performance is at the heart of the Delta Joint PRO, with a full 90 degrees of articulation, from one extreme to the other. This represents a 14% improvement in range of motion, over the highly capable original Delta Joint, allowing for maximum bind-free suspension movement through the complete range of travel. The Delta Joint PRO is built to take the abuse, with a chromoly ball and shaft that has a bearing surface hardened to Rockwell C 55. The replaceable races are made of graphite-impregnated sintered metal, machined to the finest tolerance to provide a flawless, metal-to-metal bearing interface. We also redesigned the lubrication system, with lubricant channels that distribute grease more efficiently without extending past the bearing seal.

ICON Vehicle Dynamics 48500DJ 21-23 BRONCO BILLET UCA DJ PRO KIT

Specifications:

Description_SHO	UCA KIT
Description_INV	48500DJ
Description_ASC	Factory Wheels & Tires Fitment: No
Description_ASC	Recommended Aftermarket Wheels: ICON Alloys - 17" x 8.5" with 4.75" Backspace / 0mm Offset
Description_ASC	Recommended Aftermarket Wheels: ICON Alloys - 18" x 9" with 5" Backspace / 0mm Offset
Description_ASC	Recommended Aftermarket Wheels: ICON Alloys - 20" x 9" with 5" Backspace / 0mm Offset
Description_ASC	Recommended Aftermarket Tires: 37" x 12.50"
Description_ASC	TECH NOTE: Not compatible with Bronco Raptor
Description_DES	21-23 BRONCO BILLET UCA DJ PRO KIT
Description_EXT	ICON billet UCAs are made from CNC machined 6061 aluminum and feature PTFE-lined rod ends and ICON’s Delta Joint PRO, a hardcore high-angle ball joint that combines the durability of a ball joint with the performance of a uniball.

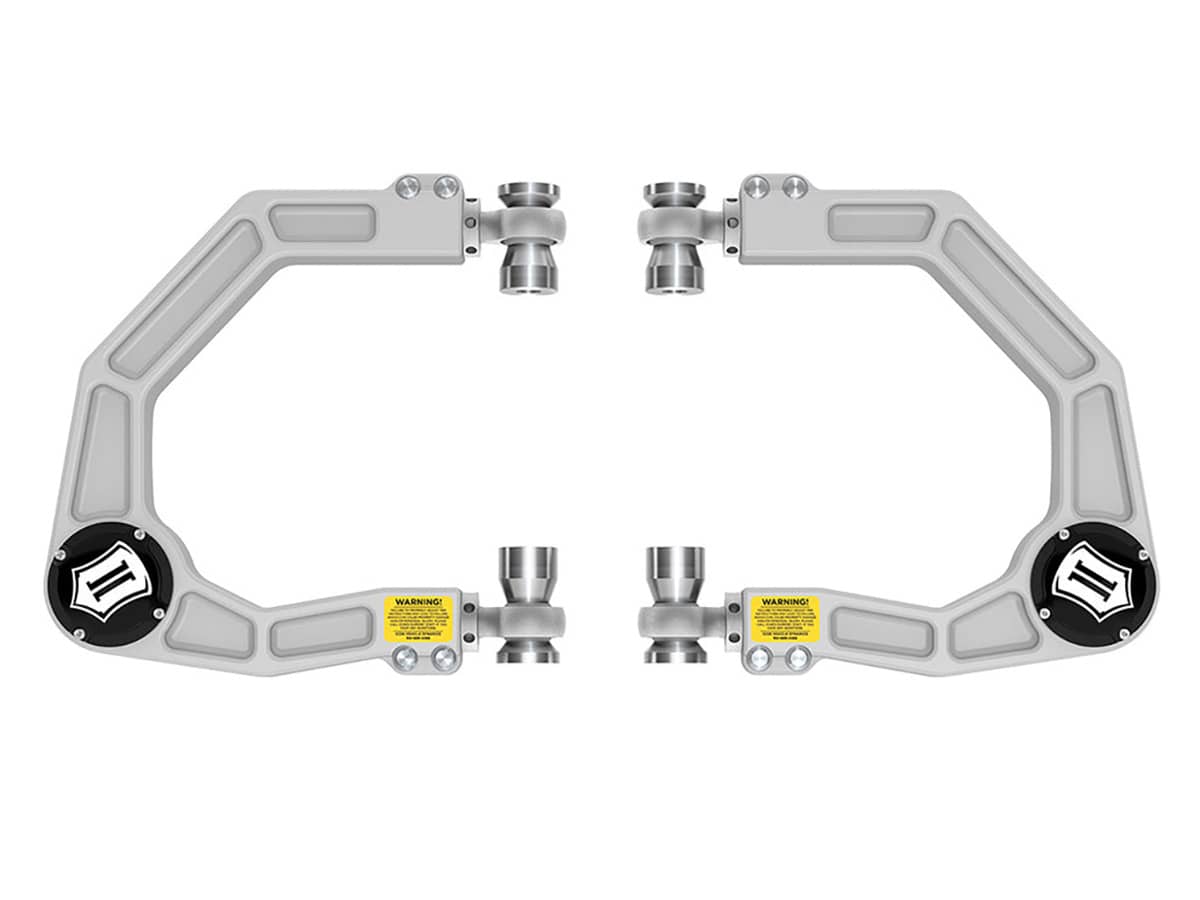

Description_MKT	This ICON billet aluminum upper control arm kit is designed to improve the overall performance of the new 2021-23 Ford Bronco with corrected front-end geometry, increased camber and caster adjustment, and improved suspension component clearance. Constructed of CNC machined 6061 billet aluminum utilizing a hybrid H-beam cross-section that is light-weight and resists bending forces better than tubular arms. Replacing the OE ball joint with the all-new, serviceable, and rebuildable ICON Delta Joint PRO allows for full bump and droop travel of the front suspension while eliminating bind. FK Rod End 3/4” heim joints provide precise and smooth function throughout the range of travel while ICON’s signature double adjuster sleeve allows for on-vehicle camber and caster adjustment.
Description_MKT	Delta Joint PRO is ICON's innovative new suspension articulation joint which combines the durability and longevity of factory style ball joints with performance and strength that exceeds traditional motorsports-style ball joints. Strength and durability are improved by using a larger ball with 56% more bearing surface than our standard Delta Joint, along with improved lubrication sealing. But improved performance is at the heart of the Delta Joint PRO, with a full 90 degrees of articulation, from one extreme to the other. This represents a 14% improvement in range of motion, over the highly capable original Delta Joint, allowing for maximum bind-free suspension movement through the complete range of travel. The Delta Joint PRO is built to take the abuse, with a chromoly ball and shaft that has a bearing surface hardened to Rockwell C 55. The replaceable races are made of graphite-impregnated sintered metal, machined to the finest tolerance to provide a flawless, metal-to-metal bearing interface. We also redesigned the lubrication system, with lubricant channels that distribute grease more efficiently without extending past the bearing seal.
Description_FAB	CNC machined 6061 billet aluminum construction with satin anodized finish
Description_FAB	Corrects suspension geometry and allows increased travel on lifted or stock height Broncos
Description_FAB	Quick, precise, on-vehicle adjustment for both caster and camber
Description_FAB	Delta Joint PRO allows maximum articulation without binding
Description_FAB	Delta Joint PRO is 100% serviceable and rebuildable
Description_FAB	FK Rod Ends at chassis pivots for strength and precision driving characteristics
Description_FAB	Built in O-ring sealed dust cover cap
Description_TLE	ICON 2021-2023 Ford Bronco, Billet Upper Control Arm/Delta Joint Pro Kit
Description_DEF	Suspension Control Arm Kit

This Part Fits:

Year	Make	Model	Submodel	Notes
2021	Ford	Bronco	Badlands	Recommended Aftermarket Wheel Size: 17x8.5" with 4.75” Backspace / 0mm Offset
2021	Ford	Bronco	Base	Recommended Aftermarket Wheel Size: 17x8.5" with 4.75” Backspace / 0mm Offset
2021	Ford	Bronco	Big Bend	Recommended Aftermarket Wheel Size: 17x8.5" with 4.75” Backspace / 0mm Offset
2021	Ford	Bronco	Black Diamond	Recommended Aftermarket Wheel Size: 17x8.5" with 4.75” Backspace / 0mm Offset
2022	Ford	Bronco	Everglades	Recommended Aftermarket Wheel Size: 17x8.5" with 4.75” Backspace / 0mm Offset
2021	Ford	Bronco	First Edition	Recommended Aftermarket Wheel Size: 17x8.5" with 4.75” Backspace / 0mm Offset
2023	Ford	Bronco	Heritage Edition	Recommended Aftermarket Wheel Size: 17x8.5" with 4.75” Backspace / 0mm Offset
2023	Ford	Bronco	Heritage Limited Edition	Recommended Aftermarket Wheel Size: 17x8.5" with 4.75” Backspace / 0mm Offset
2021	Ford	Bronco	Outer Banks	Recommended Aftermarket Wheel Size: 17x8.5" with 4.75” Backspace / 0mm Offset
2021	Ford	Bronco	Wildtrak	Recommended Aftermarket Wheel Size: 17x8.5" with 4.75” Backspace / 0mm Offset
