Last fall we announced our new leveling and SST lift kit offerings for the all-new GM 1500 trucks. We specifically did not include the factory lift kit-equipped GMC AT4 and Chevy Silverado Trail Boss. The AT4/Trail Boss are factory equipped with a 2" front lift. This front lift includes a longer front shock/strut assembly. When combining a traditional leveling kit on these factory lifted trucks, several issues present themselves including binding problems with the factory control arm ball joint and contact concerns with the lower strut/CV axle assembly. The 69-3920 SST Lift Kit works with the factory 2" front lift. This kit includes a top mount strut spacer along with a pre-load spacer to limit droop and the same premium grade upper control arms now available in our 66-3921 leveling kit. OE style 3" tall cast iron rear lift blocks and rear bump stop extension cups are also included to create a true AT4/Trail Boss-specific bolt-on lift kit that provides 2" of front lift and 1" of rear lift. This new lift kit concept is similar to our successful TRD Pro Plus 2 SST Lift Kit which is also engineered specifically to work with that factory OE suspension lift. Your trust in ReadyLIFT to provide high-quality, precision engineered products is extremely important to us. You can be assured that this all-new SST lift kits are the absolutely most reliable and best performing suspension upgrade option for the AT4/Trail Boss trucks. AT4 - Max tire 305/55-20, 20x9 0 offset wheel Trail Boss - Max tire 295/65-20, 20x9 0 offset wheel NOTE: Use of Auto 4 HI feature not recommended.. NOTE: This GM 1500 kit is NOT COMPATIBLE with vehicles equipped with rear composite mono-leaf springs. The mono-leaf is easily identifiable the U-bolt is round/circular around the top of the leaf spring. This kit only works with vehicle equipped with traditional steel leaf springs identified by square U-bolts. NOTE: Not compatible with Sierra AT4X or Silverado ZR2 Edition.

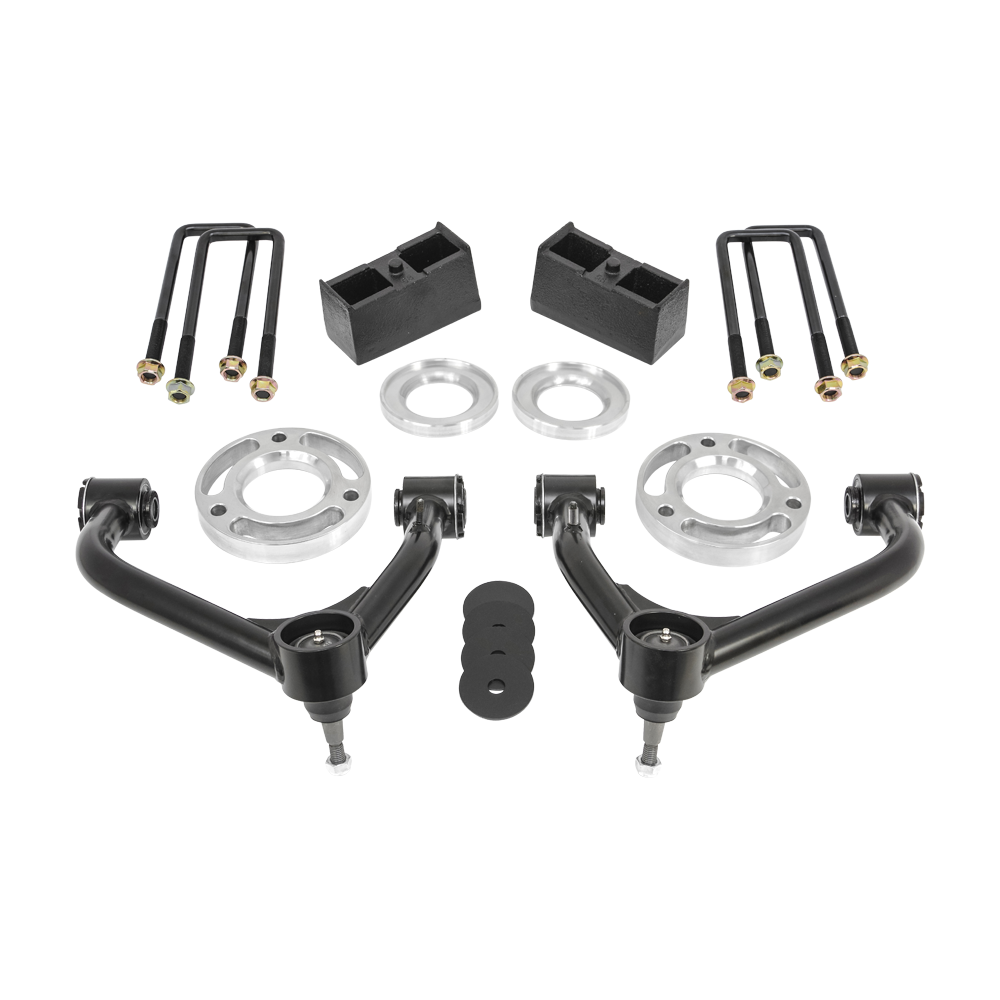

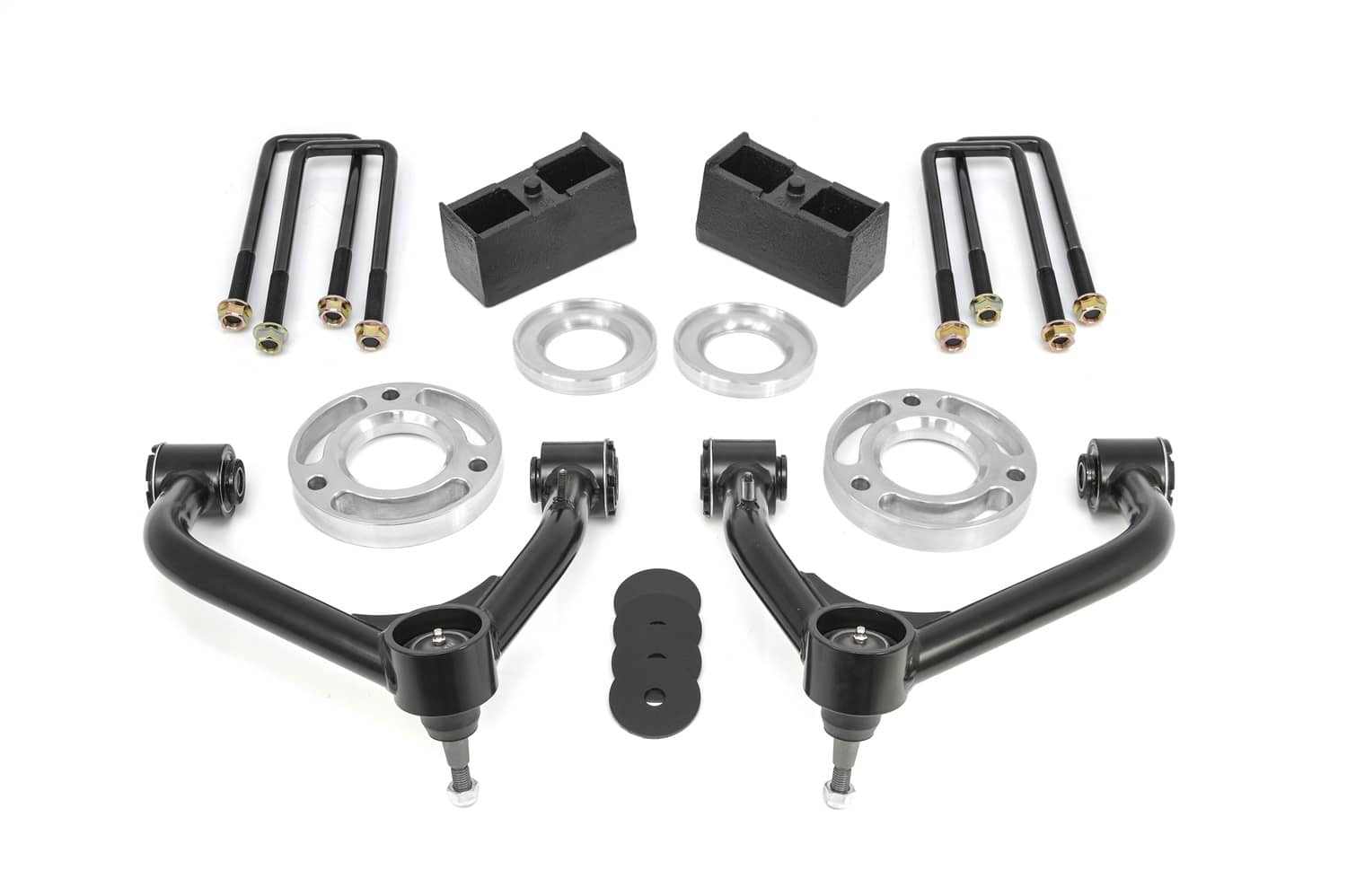

ReadyLift AT4/Trail Boss Plus 2.0" SST Lift Kit- GM 1500 AT4/Trail Boss 4WD 2019-2023 69-3920
Specifications:
| California Proposition 65 | WARNING: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer, and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/product. |
| Fitment | Direct Fitment |
| Front Lift Component | Spacer |
| Front Lift Height | 2 Inches |
| Front or Rear | Front and Rear |
| Install Difficulty | Difficult Requires Professional Installation |
| Installation Time | 5+ Hours |
| Max Tire Size | 305 |
| Prop65 Chem1 | Di(2-ethylhexyl)phthalate (DEHP) |
| Rear Lift Component | Block and U-bolt |
| Rear Lift Height | 1 Inch |
| 3097 | No |
| Description_INV | RL 2.0'' FRONT/1.0'' REAR SST LIFT KIT |
| Description_EXT | AT4/Trail Boss Plus 2.0" SST Lift Kit- GM 1500 AT4/Trail Boss 4WD 2019-2023 |
| Description_MKT | Last fall we announced our new leveling and SST lift kit offerings for the all-new GM 1500 trucks. We specifically did not include the factory lift kit-equipped GMC AT4 and Chevy Silverado Trail Boss. The AT4/Trail Boss are factory equipped with a 2" front lift. This front lift includes a longer front shock/strut assembly. When combining a traditional leveling kit on these factory lifted trucks, several issues present themselves including binding problems with the factory control arm ball joint and contact concerns with the lower strut/CV axle assembly. The 69-3920 SST Lift Kit works with the factory 2" front lift. This kit includes a top mount strut spacer along with a pre-load spacer to limit droop and the same premium grade upper control arms now available in our 66-3921 leveling kit. OE style 3" tall cast iron rear lift blocks and rear bump stop extension cups are also included to create a true AT4/Trail Boss-specific bolt-on lift kit that provides 2" of front lift and 1" of rear lift. This new lift kit concept is similar to our successful TRD Pro Plus 2 SST Lift Kit which is also engineered specifically to work with that factory OE suspension lift. Your trust in ReadyLIFT to provide high-quality, precision engineered products is extremely important to us. You can be assured that this all-new SST lift kits are the absolutely most reliable and best performing suspension upgrade option for the AT4/Trail Boss trucks. AT4 - Max tire 305/55-20, 20x9 0 offset wheel Trail Boss - Max tire 295/65-20, 20x9 0 offset wheel NOTE: Use of Auto 4 HI feature not recommended.. NOTE: This GM 1500 kit is NOT COMPATIBLE with vehicles equipped with rear composite mono-leaf springs. The mono-leaf is easily identifiable the U-bolt is round/circular around the top of the leaf spring. This kit only works with vehicle equipped with traditional steel leaf springs identified by square U-bolts. NOTE: Not compatible with Sierra AT4X or Silverado ZR2 Edition. |
| Description_FAB | 2" SST Lift Kit for 20192023 GM AT4 & Trail Boss models |
| Description_FAB | Not compatible with Sierra AT4X or Silverado ZR2 Edition |
| Description_FAB | Front lift combines with factory 2" lift |
| Description_FAB | CNCmachined billet Aluminum top spacer and preload spacer kit |
| Description_FAB | Heavyduty control arms with 1ton ball joints |
| Description_FAB | Maintenancefree pivot bushings |
| Description_FAB | Includes 3" tall OE style cast iron rear lift blocks |
| Description_FAB | Comes with new Ubolts |
| Description_FAB | Max tire size for AT4: 305/5520 on 20x9 0 offset wheel |
| Description_FAB | Max tire size for Trail Boss: 295/6520 on 20x |
| Description_FAB | 2" SST Lift Kit for 2019 2" SST Lift Kit for 20192023 GM AT4 & Trail Boss models |
| Description_FAB | CNC CNCmachined billet Aluminum top spacer and preload spacer kit |
| Description_FAB | Heavy Heavyduty control arms with 1ton ball joints |
| Description_FAB | Maintenance Maintenancefree pivot bushings |
| Description_FAB | Comes with new U Comes with new Ubolts |
| Description_FAB | Max tire size for AT4: 305/55 Max tire size for AT4: 305/5520 on 20x9 0 offset wheel |
| Description_FAB | Max tire size for Trail Boss: 295/65 Max tire size for Trail Boss: 295/6520 on 20x" |
| Description_DEF | Suspension Lift Kit |
This Part Fits:
| Year | Make | Model | Submodel | Notes |
|---|---|---|---|---|
| 2019 | Chevrolet | Silverado 1500 | ||
| 2020 | Chevrolet | Silverado 1500 | ||
| 2021 | Chevrolet | Silverado 1500 | ||
| 2022 | Chevrolet | Silverado 1500 | ||
| 2023 | Chevrolet | Silverado 1500 | ||
| 2024 | Chevrolet | Silverado 1500 | ||
| 2019 | GMC | Sierra 1500 | ||
| 2020 | GMC | Sierra 1500 | ||
| 2021 | GMC | Sierra 1500 | ||
| 2022 | GMC | Sierra 1500 | ||
| 2023 | GMC | Sierra 1500 | ||
| 2024 | GMC | Sierra 1500 |
