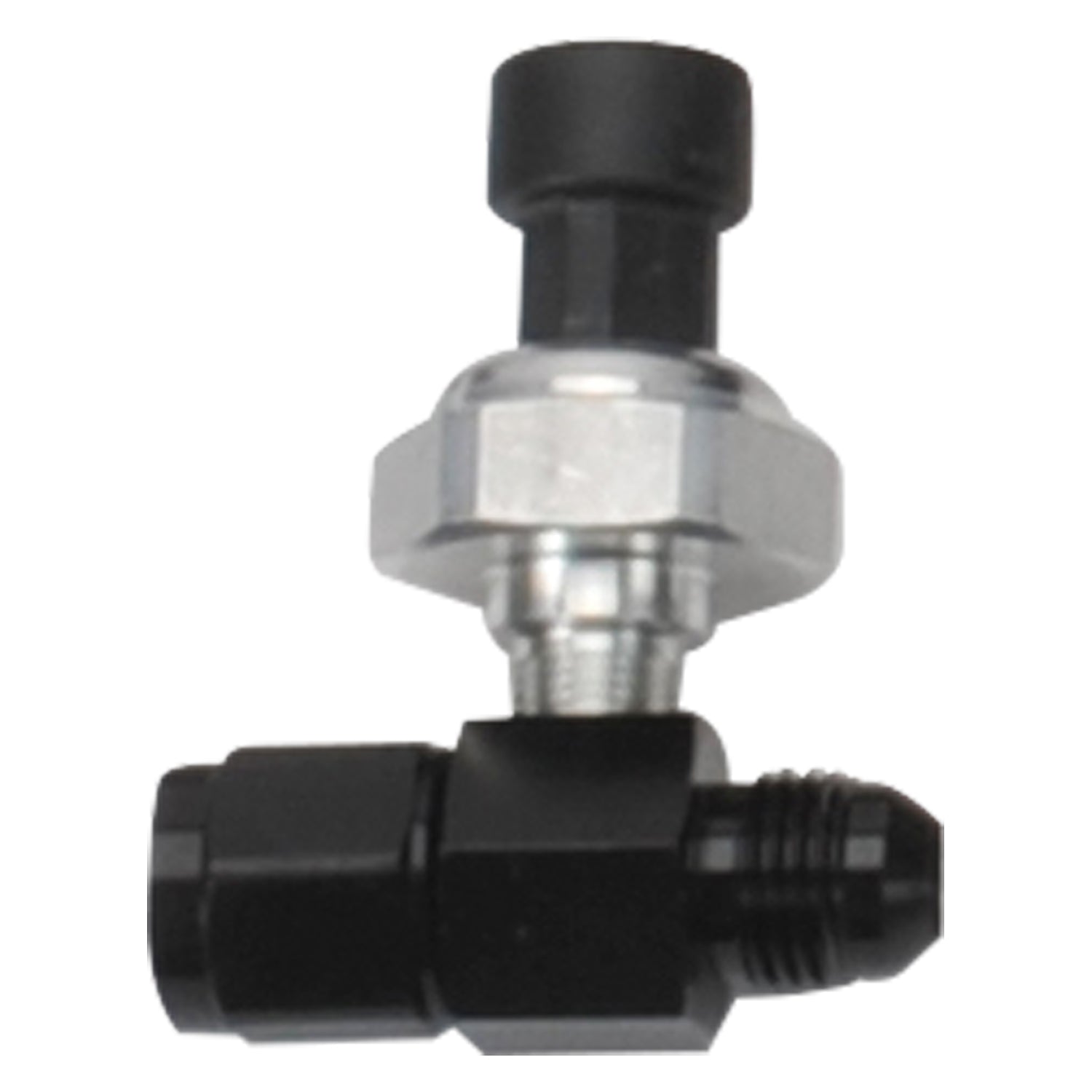

MAP, O2 and IAT sensors. The compact Pro-Flo 4+ ECU provides mounting versatility with a weather-resistant housing and features a unique self-learning capability that adjusts the fuel map as you drive, providing optimum performance with no need for laptop tuning or costly dyno sessions. Setup is quick and easy thanks to Edelbrock's E-Tuner 4 software for Android tablets and smartphones. Pro-Flo 4+ for the 2011-2014 Coyote uses a speed-density fueling strategy with an included MAP and IAT sensor. A non-adjustable Alternator Control is set to regulate at 14.5 volts. The Coyote's factory MAF sensor, air inlet piping and air box are eliminated, allowing unlimited configuration of your air intake design. Pro-Flo 4+ #36110 works with 80mm drive-by-wire throttle bodies as well as the 87mm GT350 throttle body. Minimal tuning adjustments are required when the provided base calibration is used, giving you great performance right out of the box. Pro-Flo 4+ is covered by a 2-year warranty and is backed by the industry's most extensive technical support team.'
Edelbrock Pro-Flo 4+ #36110 EFI engine management for 2011-14 Ford Coyote Engine Swap 36110
Specifications:
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| 3348 | Plastic |
| 3145 | Specific |

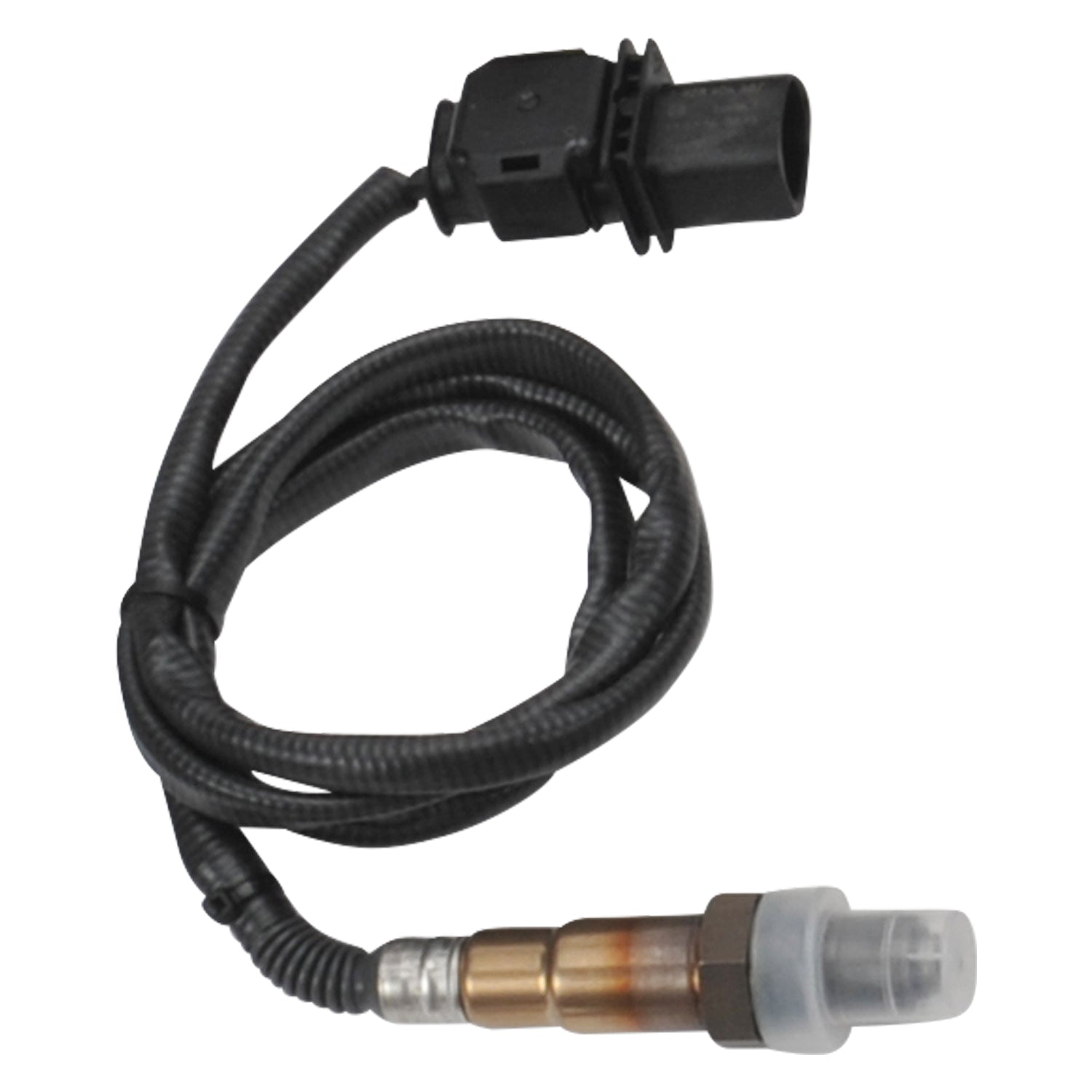

| Oxygen Sensor Included | Yes |
| 30 | Yes |
| Quantity | Kit |
| Width | Various |
| Terminal Type | Various |
| Thickness | Various |
| Terminal Gender | Female/Male |
| Terminal Quantity | Multiple |
| Display Included | Yes |
| Flash Programming Required | No |
| Flashable | No |
| Wiring Harness Length | Various |
| Wire Gauge Measurement | Various |
| System Type | Pro-Flo 4+ EFI |
| Wire Quantity | Multiple |
| Length | Various |
| Description_LAB | Pro-Flo 4+ EFI Engine Management System #36110 for 2011-14 Ford Coyote |
| Description_DES | Pro-Flo 4+ #36110 EFI engine management for 2011-14 Ford Coyote Engine Swap |
| Description_SHP | None |
| Description_ASM | Ford:Modular Coyote 4V:302 (5.0L) |
| Description_EXT | Edelbrock Pro-Flo 4+ kit #36110 is an EFI engine management system that greatly simplifies the process of installing a 2011-2014 Ford Coyote EFI engine into a non-EFI muscle car, truck or hot rod. |

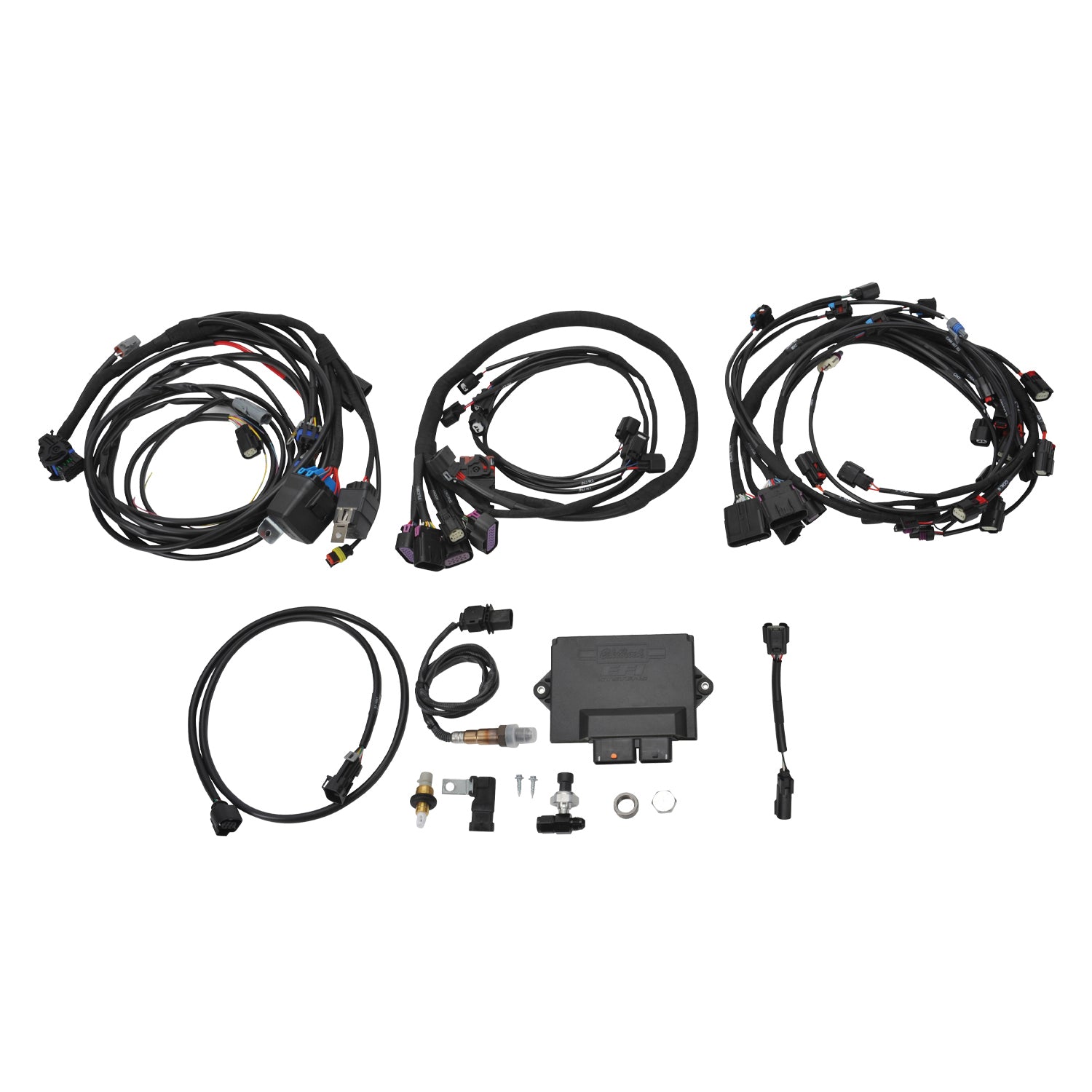

| Description_MKT | Edelbrock Pro-Flo 4+ kit #36110 is an EFI engine management system that greatly simplifies the process of installing a 2011-2014 Ford Coyote EFI engine into a non-EFI muscle car, truck or hot rod. Pro-Flo 4+ allows you to leave the factory ECU and wiring harnesses at the junkyard by providing a plug-and-play control system that is specially designed for the Gen I Coyote engine, implementing drive-by-wire throttle and variable camshaft timing (VCT) in hot rod engine swap applications. Pro-Flo 4+ kit #36110 includes an ECU with base calibration |

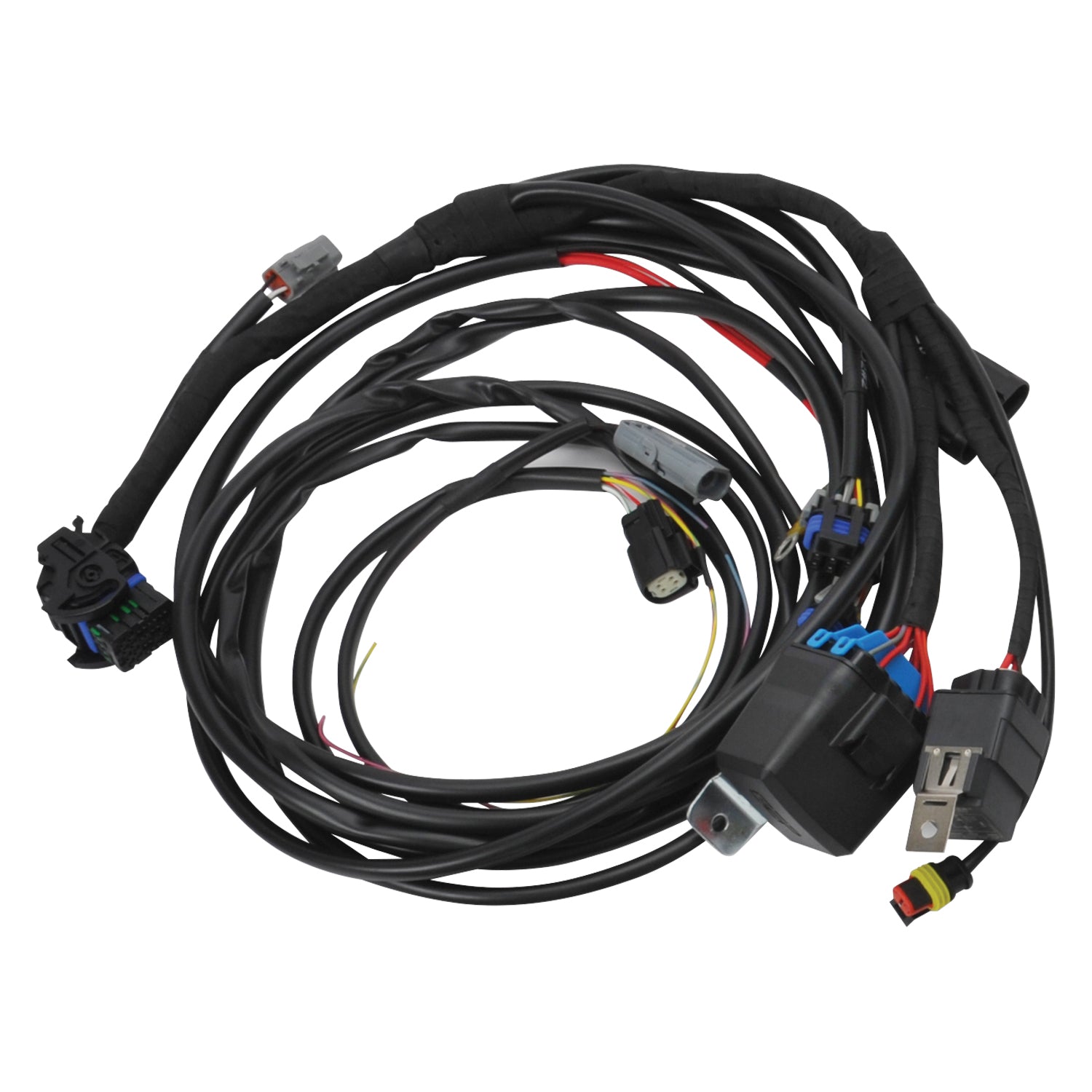

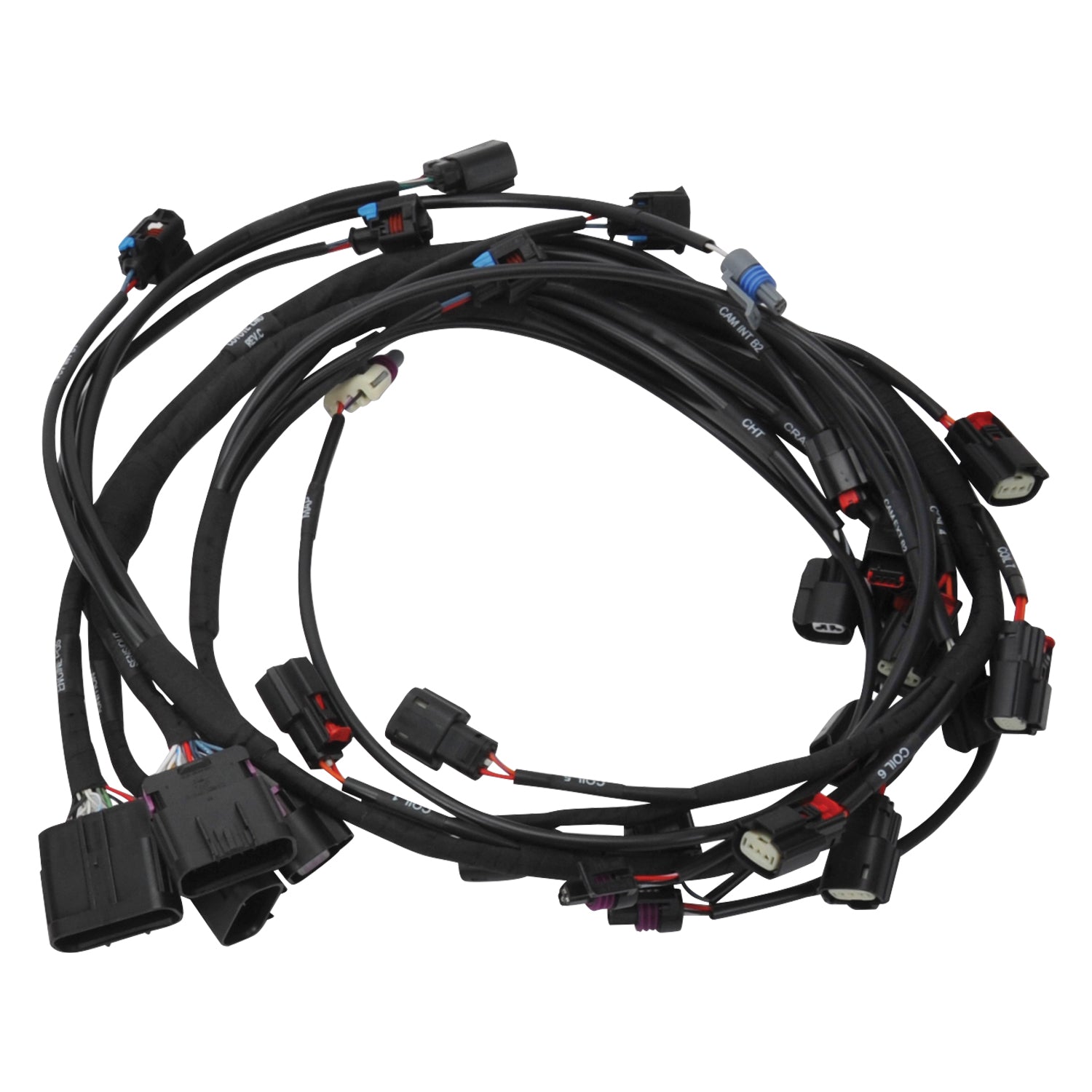

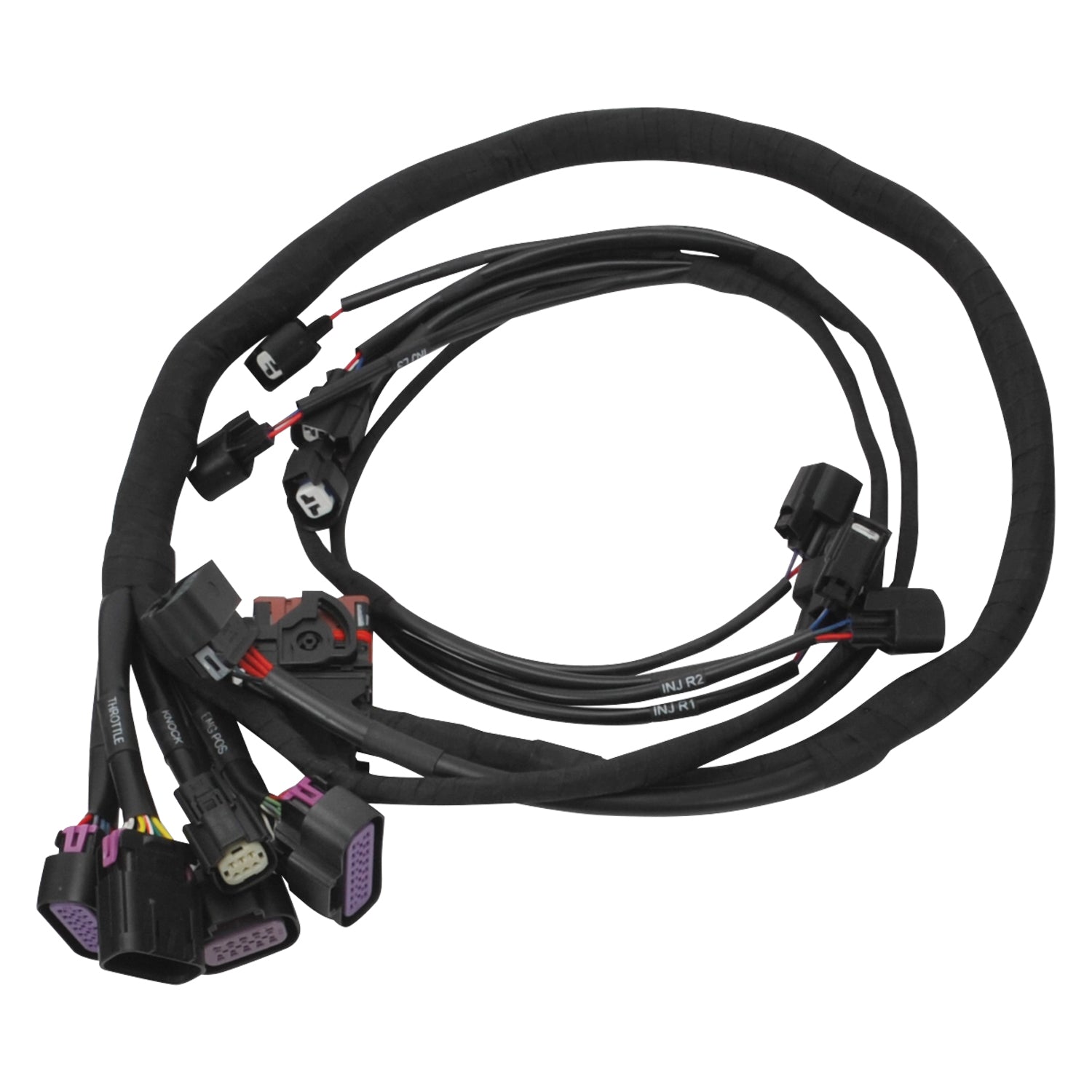

| Description_MKT | OEM-style wiring harnesses |

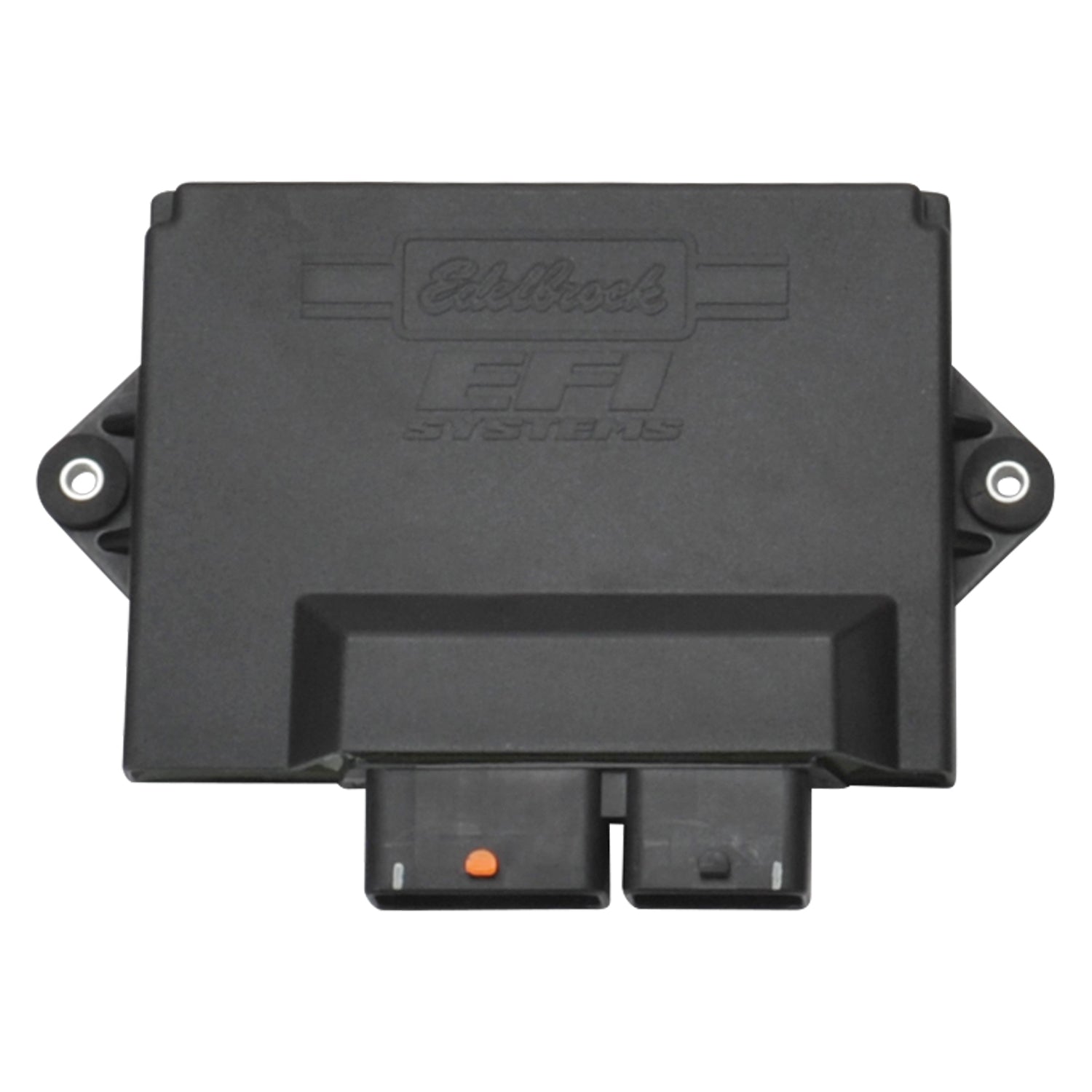

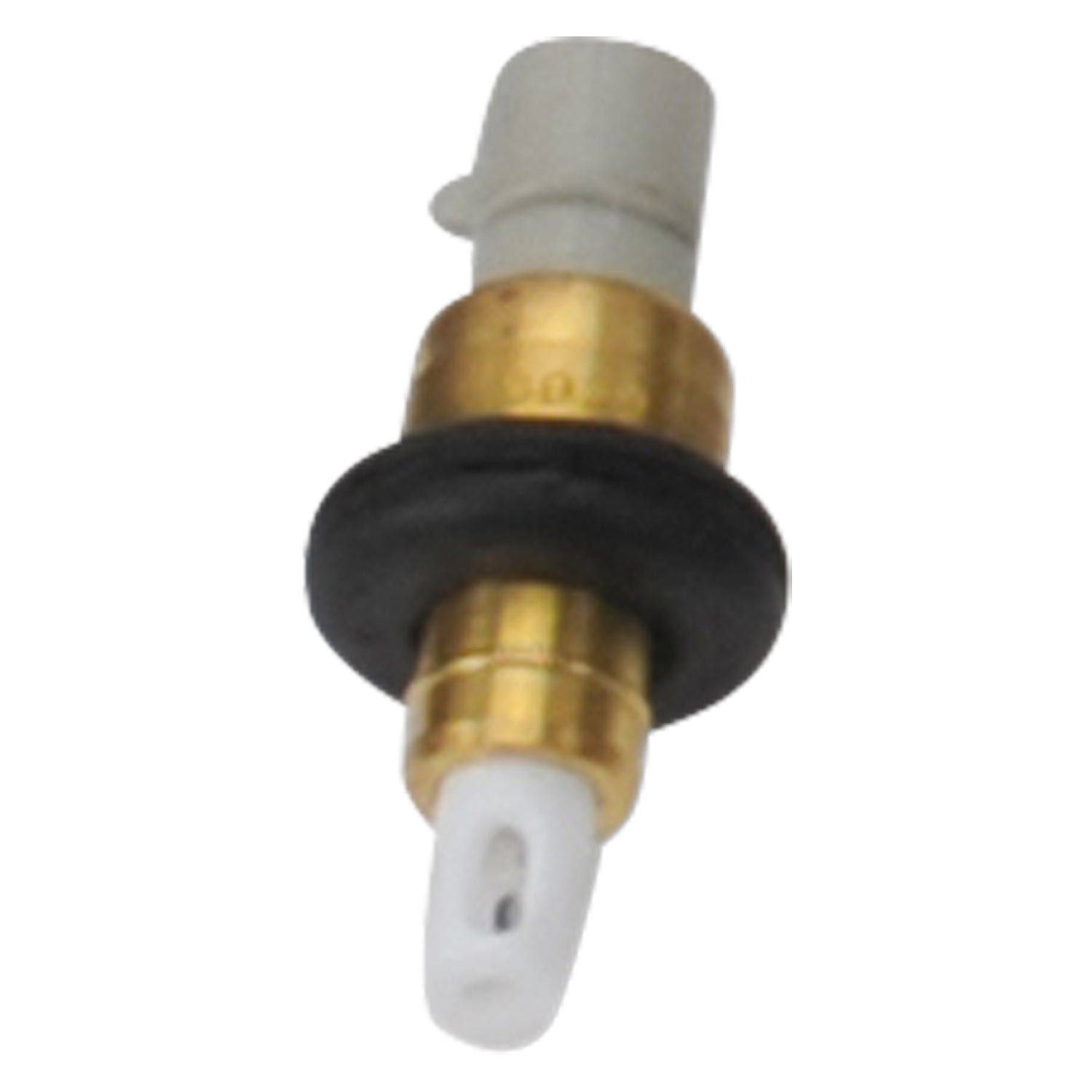

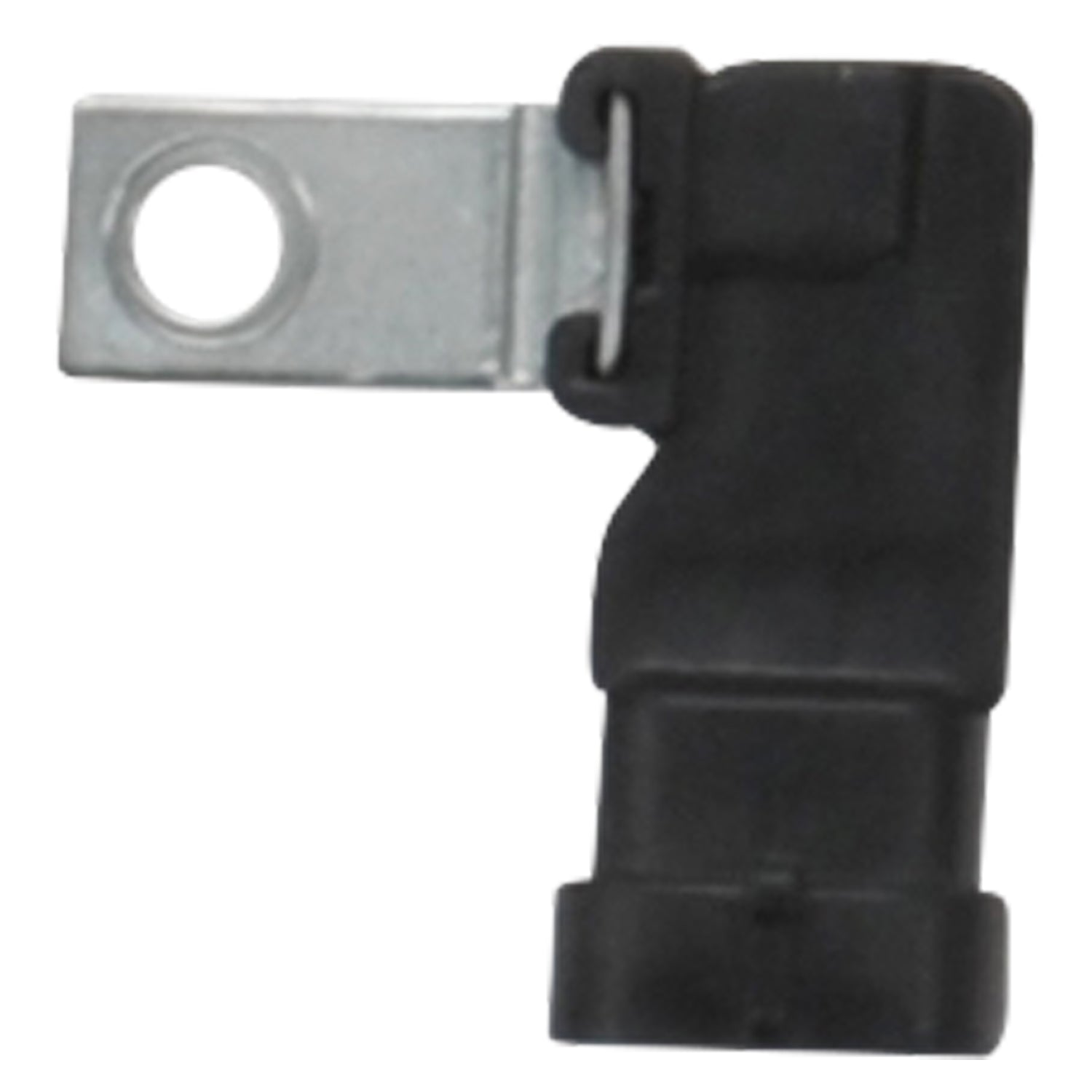

| Description_MKT | MAP, O2 and IAT sensors. The compact Pro-Flo 4+ ECU provides mounting versatility with a weather-resistant housing and features a unique self-learning capability that adjusts the fuel map as you drive, providing optimum performance with no need for laptop tuning or costly dyno sessions. Setup is quick and easy thanks to Edelbrock's E-Tuner 4 software for Android tablets and smartphones. Pro-Flo 4+ for the 2011-2014 Coyote uses a speed-density fueling strategy with an included MAP and IAT sensor. A non-adjustable Alternator Control is set to regulate at 14.5 volts. The Coyote's factory MAF sensor, air inlet piping and air box are eliminated, allowing unlimited configuration of your air intake design. Pro-Flo 4+ #36110 works with 80mm drive-by-wire throttle bodies as well as the 87mm GT350 throttle body. Minimal tuning adjustments are required when the provided base calibration is used, giving you great performance right out of the box. Pro-Flo 4+ is covered by a 2-year warranty and is backed by the industry's most extensive technical support team.' |
| Description_FAB | Simple plug-and-play installation, no laptop tuning required |
| Description_FAB | Works with most intake manifold configurations |
| Description_FAB | Works with stock-size Ford drive-by-wire throttle body or 87mm GT350 throttle body |
| Description_FAB | Improved drivability and throttle response |
| Description_ABR | ProFlo4+ EFI |
| Description_INV | Pro-Flo 4+ EFI Kit Ford Coyote 5.0L |
| Description_DEF | Fuel Injection Calibration Module |
