*item may differ from images

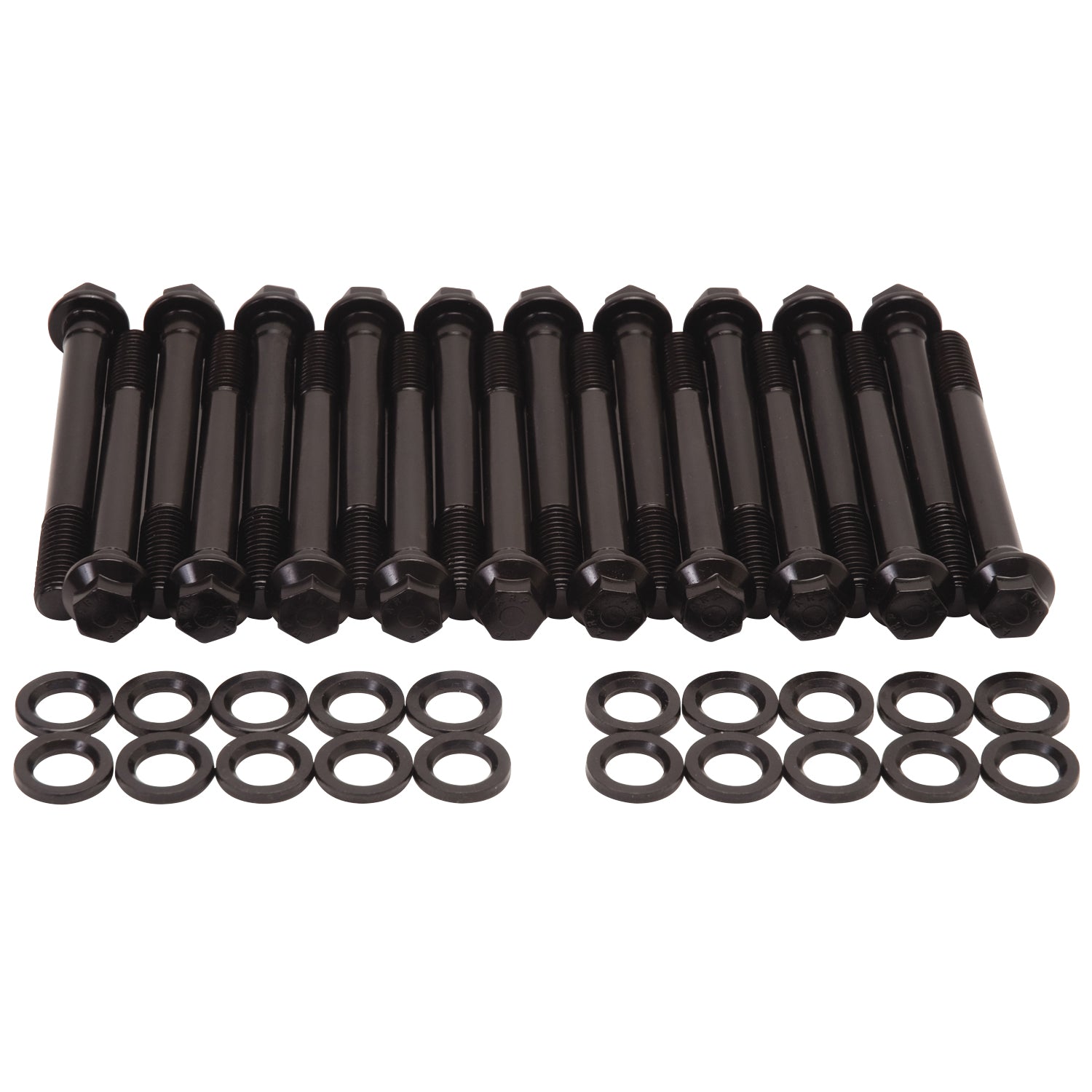

Edelbrock E-Series Cylinder Head Bolt Kit #85602 is a high-quality set of bolts for use with Ford 351C heads equipped with Edelbrock Performer RPM #61629 cylinder heads. This bolt kit contains all parts necessary to replace the factory head bolts. E-Series bolts have a yield tensile strength of 190,000 PSI for strong and reliable loading with generous filleting throughout to eliminate stress risers. Bolt threads are rolled after heat-treating for superior form and strength, while a small hex head provides extra space for socket clearance in tight situations. E-Series Cylinder Head Bolts have a durable black oxide finish with sealer and come with the distinctive Edelbrock E stamped into the head.
Edelbrock Edelbrock E-Series Cylinder Head Bolt Kit #85602 for Ford 351C engines 85602
Specifications:
| RGL | WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| 9 | Hex |
| 10 | 8740 Chromoly |
| 546 | Coarse |
| 557 | 0.5 |
| 2596 | 4.5 |
| 3072 | Yes |
| Finish | Black Oxide |
| Grade Type | Performance |
| Quantity | Kit |
| Length | (20) 4.50 |
| Description_MKT | Edelbrock E-Series Cylinder Head Bolt Kit #85602 is a high-quality set of bolts for use with Ford 351C heads equipped with Edelbrock Performer RPM #61629 cylinder heads. This bolt kit contains all parts necessary to replace the factory head bolts. E-Series bolts have a yield tensile strength of 190,000 PSI for strong and reliable loading with generous filleting throughout to eliminate stress risers. Bolt threads are rolled after heat-treating for superior form and strength, while a small hex head provides extra space for socket clearance in tight situations. E-Series Cylinder Head Bolts have a durable black oxide finish with sealer and come with the distinctive Edelbrock E stamped into the head. |
| Description_FAB | For Ford 351C with Performer RPM heads |
| Description_FAB | Yield tensile strength of 190,000 PSI |
| Description_FAB | Heat treating with rolled threads for superior form and strength |
| Description_FAB | black-oxide finish with sealer |
| Description_FAB | Edelbrock E logo stamped on bolt head |
| Description_TRA | The Edelbrock #8560 is made specifically for Ford Cleveland V8 |
| Description_TRA | Installation is the same as for original equipment cylinder heads. Consult service manual for specific procedures, if necessary. |
| Description_TRA | Be sure that the surface of the block and the surface of the head are thoroughly cleaned to remove any oily film before installation. |
| Description_TRA | Use alcohol or lacquer thinner on a lint-free rag to clean. Apply oil or suitable thread lubricant to head bolt threads and the underside of bolt heads and washers. |
| Description_TRA | Torque 1/2" bolts to 100-110 ft./lbs (1/2" bolts) in four steps (30, 60, 90, 100-110) following the factory tightening sequence. |
| Description_ABR | HeadBoltKit |
| Description_INV | Edelbrock Cylinder Head Bolt Kit #85602 |
| Description_LAB | Edelbrock E-Series Cylinder Head Bolt Kit #85602 for Ford 351C engines |
| Description_DES | Edelbrock E-Series Cylinder Head Bolt Kit #85602 for Ford 351C engines |
| Description_SHP | None |
| Description_ASM | Ford:Cleveland:351C (5.8L) |
| Description_EXT | Edelbrock #85602 is a Head Bolt Kit for 1970-74 S/B Ford 351 Cleveland Engines with Edelbrock #61629, 61625, and 61609 Performer RPM Cylinder Heads. Complete set of Head Bolts & Washers for a pair of heads. |
| Description_DEF | Engine Cylinder Head Bolt Set |
