*item may differ from images

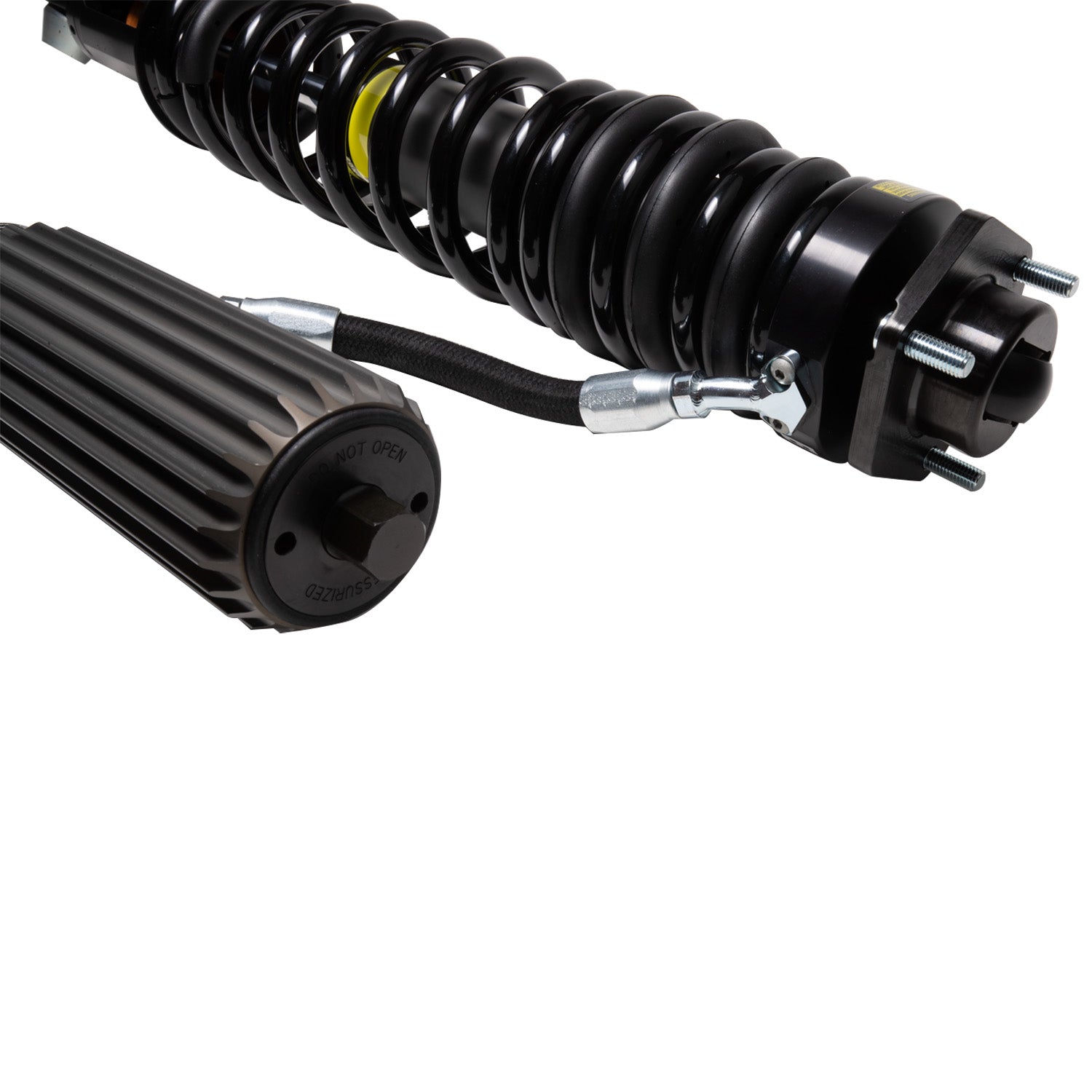

Bilstein B8 8112 (ZoneControl CR DSA+) is a direct fit, 3-way adjustable, 60mm, position sensitive coilover shock designed for light trucks and SUV’s. ZoneControl CR DSA+ is a revolutionary technology delivering position sensitive damping plus user Dual Speed Adjustability. The system incorporates a triple piston design, offering 3 stages of compression valving and 2 stages of rebound valving. Click adjuster knobs allow easy and precise Dual Speed Adjustment of both low and high speed compression plus an adjustable JCO (internal hydraulic bump stop). The coilover module utilizes a threaded spring seat for ride height adjustability ranging from 0-3” (depending on application). It is supplied with a remote reservoir for increased cooling along with an accompanied, bolt-on anodized reservoir chassis mount. Bilstein B8 8112 (ZoneControl CR DSA+) position sensitive Dual Speed Adjustable coilovers offer unparalleled ride comfort during every day driving combined with maximum control over large suspension inputs with the ability to quickly adjust the shock to tackle any terrain.

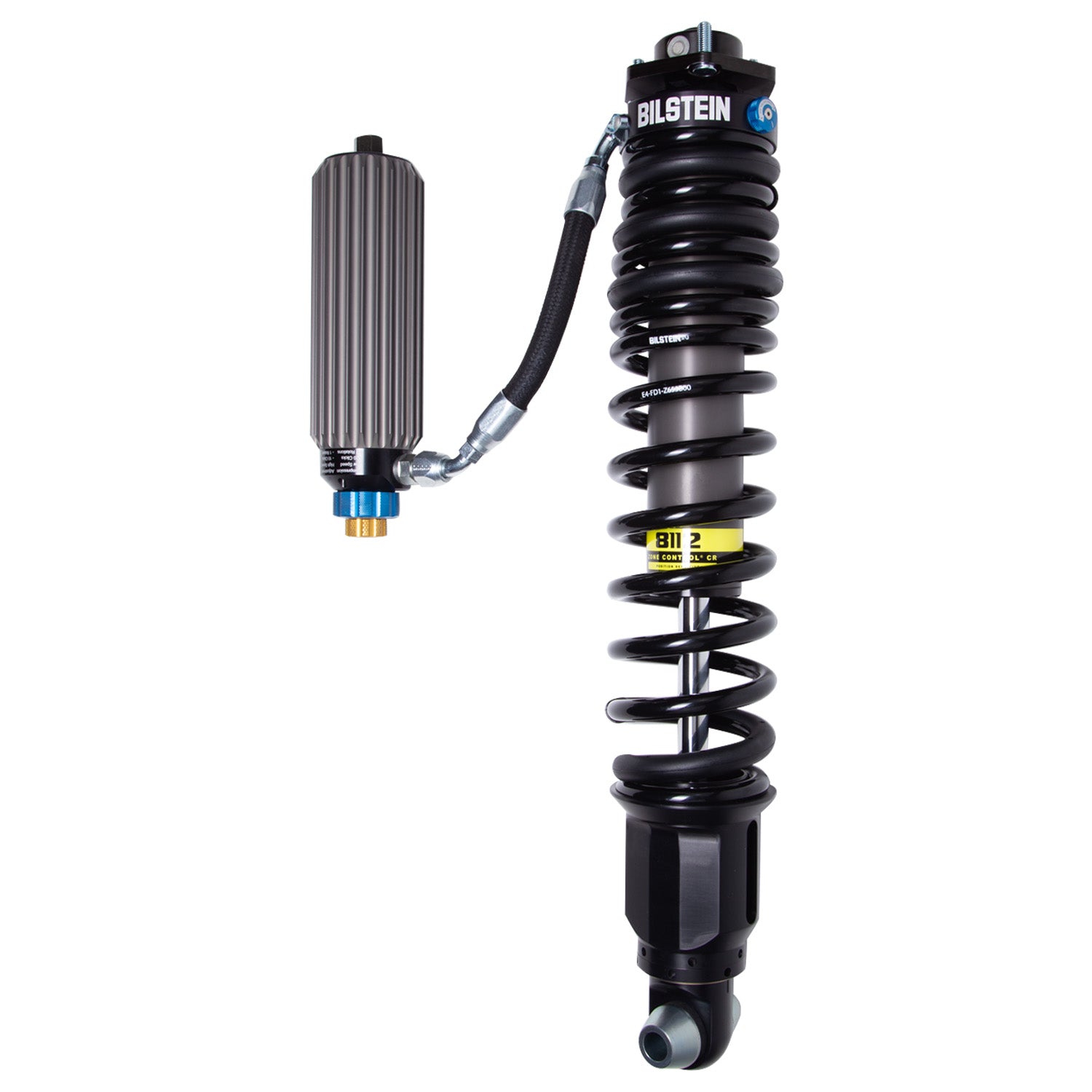

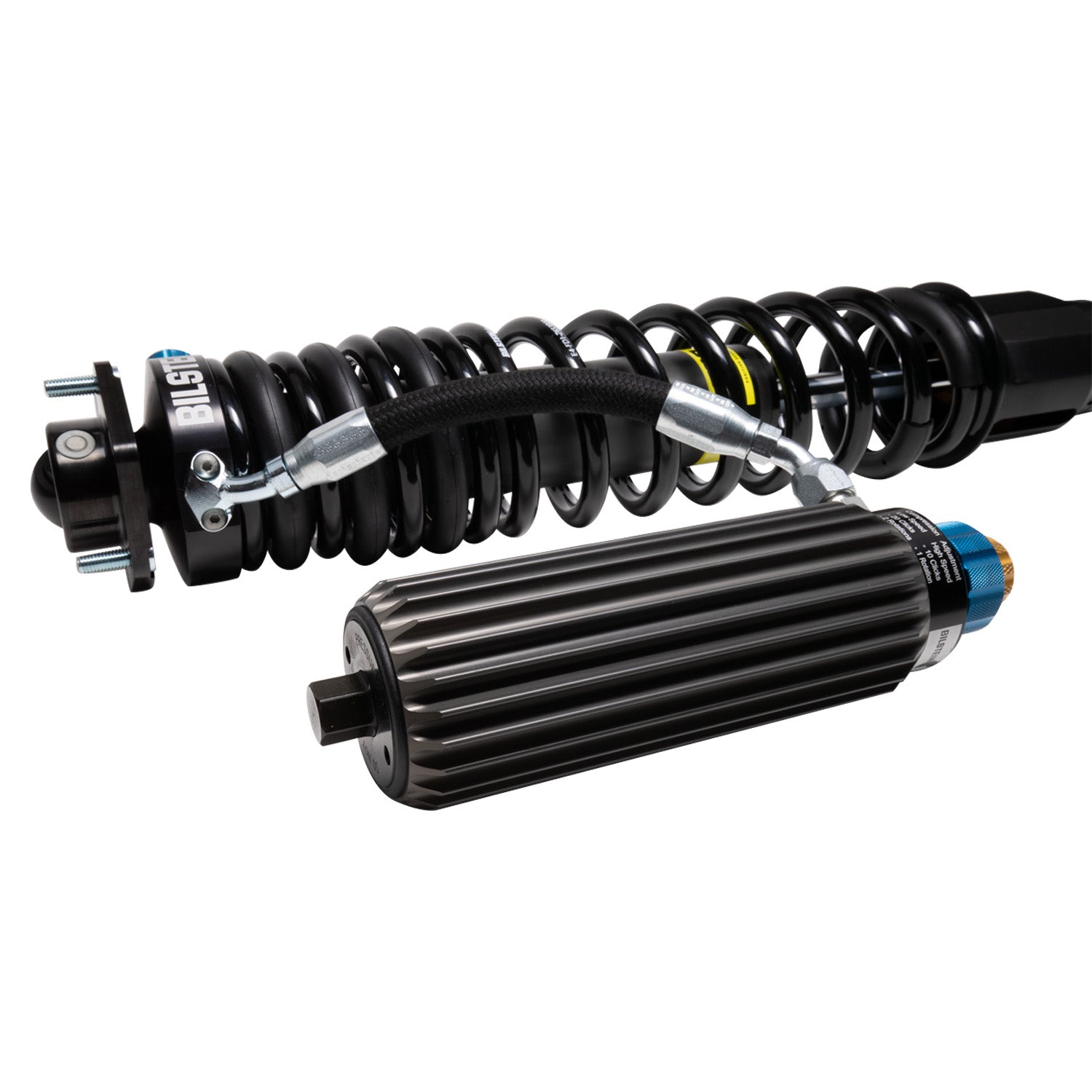

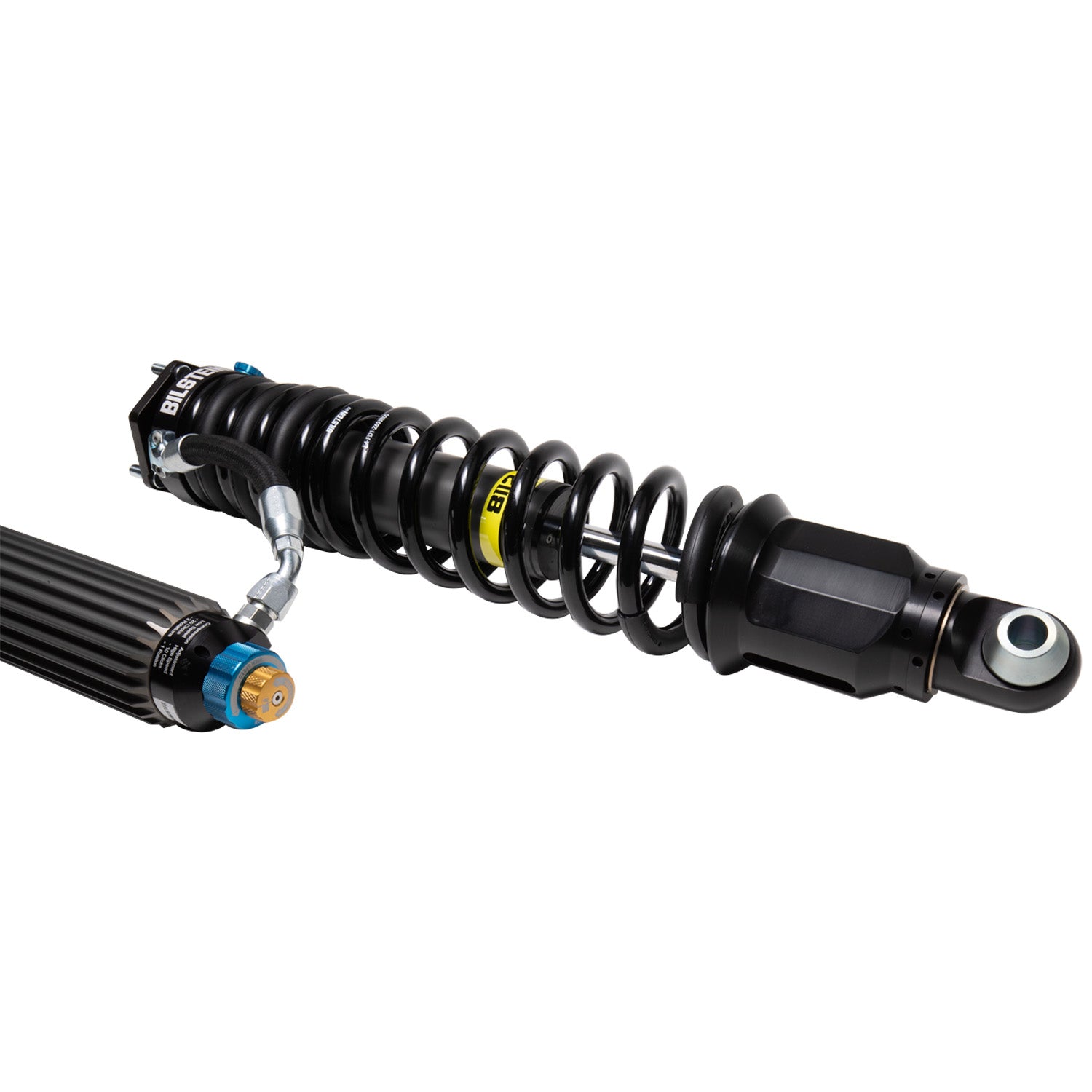

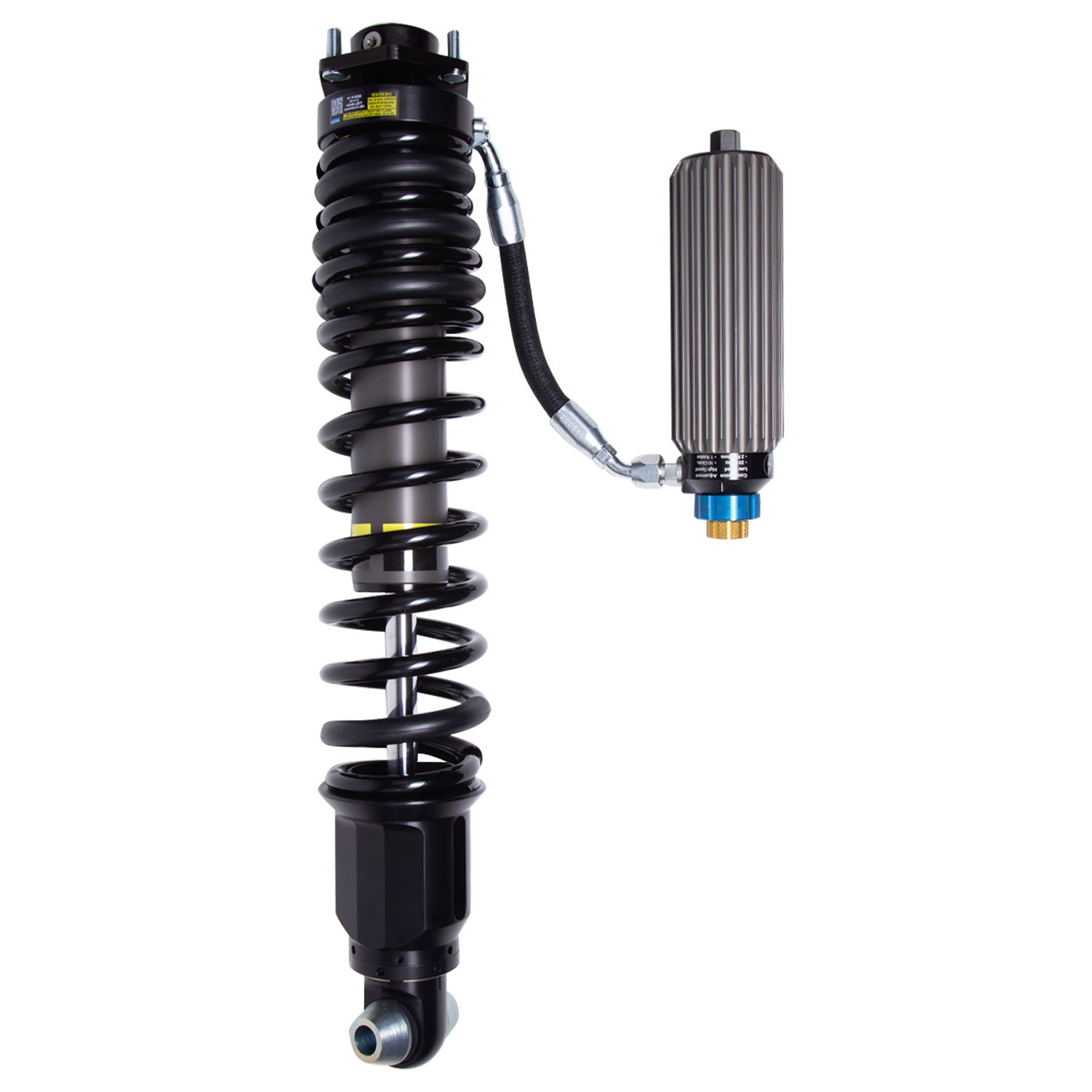

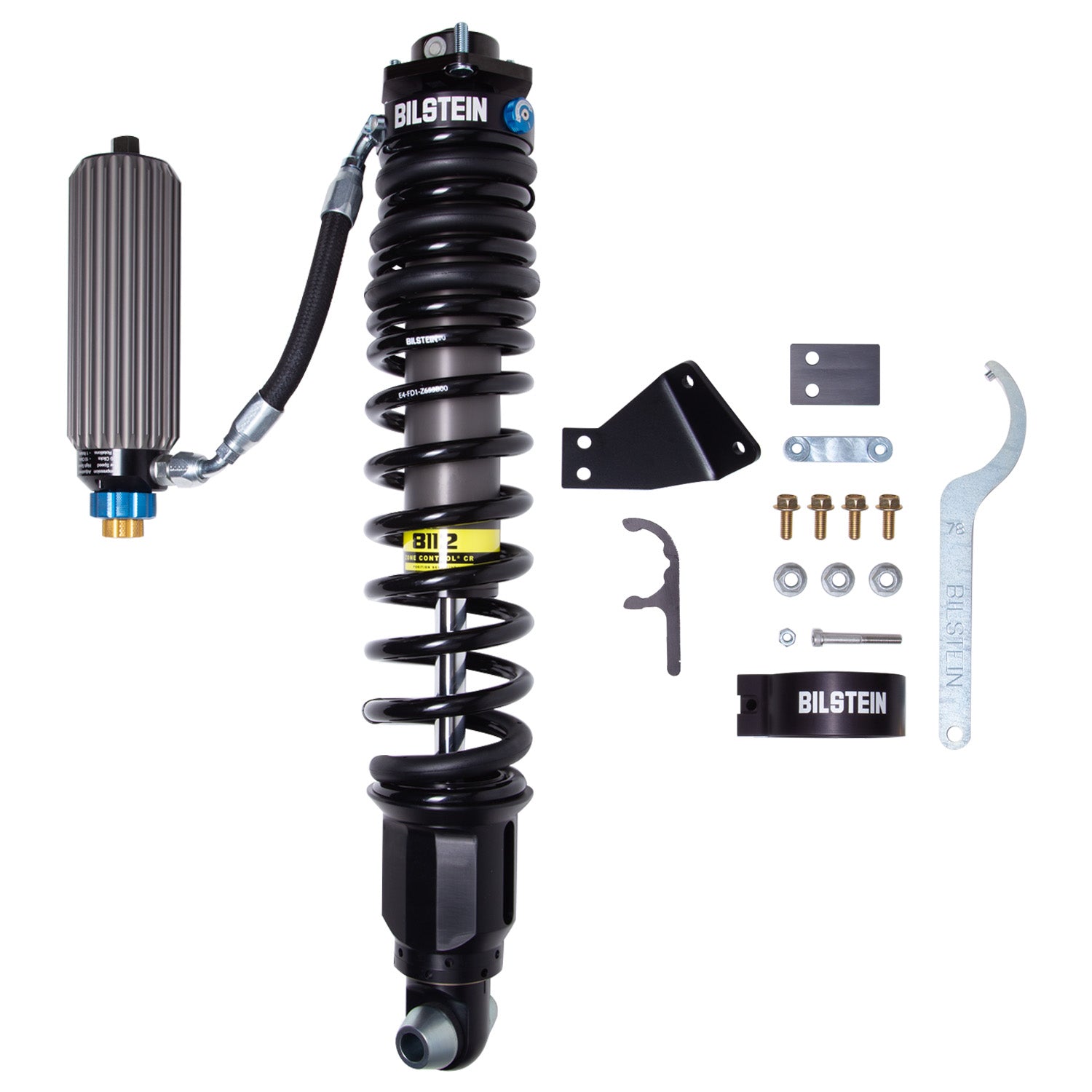

Bilstein B8 8112 (ZoneControl CR DSA+) - Rear Left Corner Module 41-314326
Specifications:
| Body Design | Smooth Body (Coilover) |
| Title | Bilstein Shock Absorbers |
| Segment | Light Truck |
| PartType | Shocks / Struts |
| Spring Seat Included | Yes |
| Internal Design | Monotube |
| Boot Included | No |
| Extended Length (IN) | 26.60 |
| Adjustable Damping | Click Adjusters for High and Low Speed Compression plus internal Bump Stop (JCO) |
| Collapsed Length (IN) | 18.40 |
| Reservoir | Yes - Finned Aluminum |
| Body Material | Aluminum |
| Prop 65 (Y/N) | Y |
| Prop 65 - Short Label | WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov |
| Series | B8 8112 (ZoneControl CR DSA+) |
| Collapsed Length (MM) | 467.1 |
| Finish | Dampers: EVO Grey/Springs: Black |
| Body Diameter (ID) | 60mm |
| Extended Length (MM) | 674.6 |
| Upper Mount Type | Special |

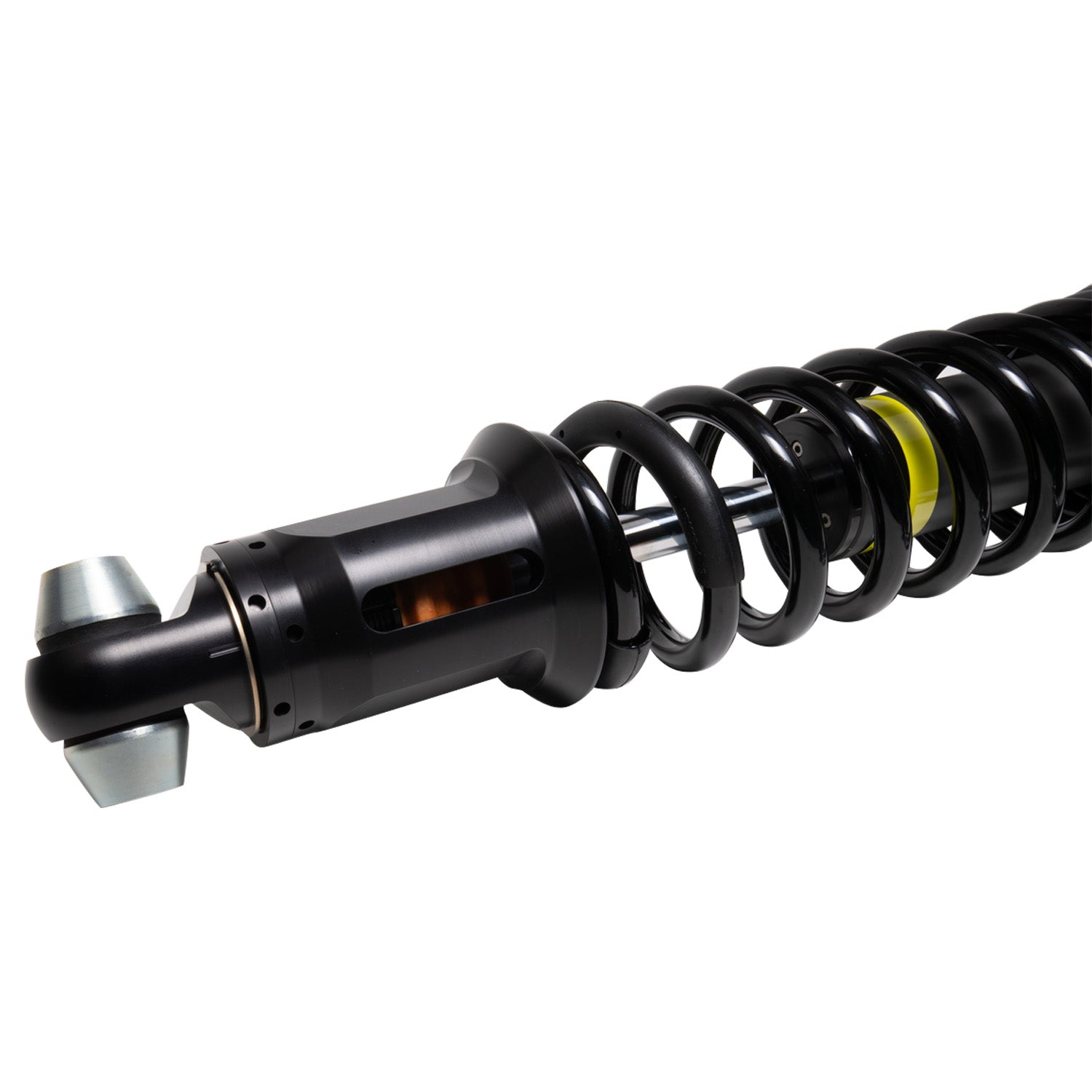

| Lower Mount Type | Eye 25.4mm with Heim Spacers |
| Description_INV | Ford Bronco;'21+; RL; B8 8112 DSA+ EVO-A |
| Description_LAB | B8 8112 (ZoneControl CR DSA+) - Rear Left Corner Module |
| Description_ASM | Ford Bronco 2024-2021 |
| Description_MKT | Bilstein B8 8112 (ZoneControl CR DSA+) is a direct fit, 3-way adjustable, 60mm, position sensitive coilover shock designed for light trucks and SUV’s. ZoneControl CR DSA+ is a revolutionary technology delivering position sensitive damping plus user Dual Speed Adjustability. The system incorporates a triple piston design, offering 3 stages of compression valving and 2 stages of rebound valving. Click adjuster knobs allow easy and precise Dual Speed Adjustment of both low and high speed compression plus an adjustable JCO (internal hydraulic bump stop). The coilover module utilizes a threaded spring seat for ride height adjustability ranging from 0-3” (depending on application). It is supplied with a remote reservoir for increased cooling along with an accompanied, bolt-on anodized reservoir chassis mount. Bilstein B8 8112 (ZoneControl CR DSA+) position sensitive Dual Speed Adjustable coilovers offer unparalleled ride comfort during every day driving combined with maximum control over large suspension inputs with the ability to quickly adjust the shock to tackle any terrain. |

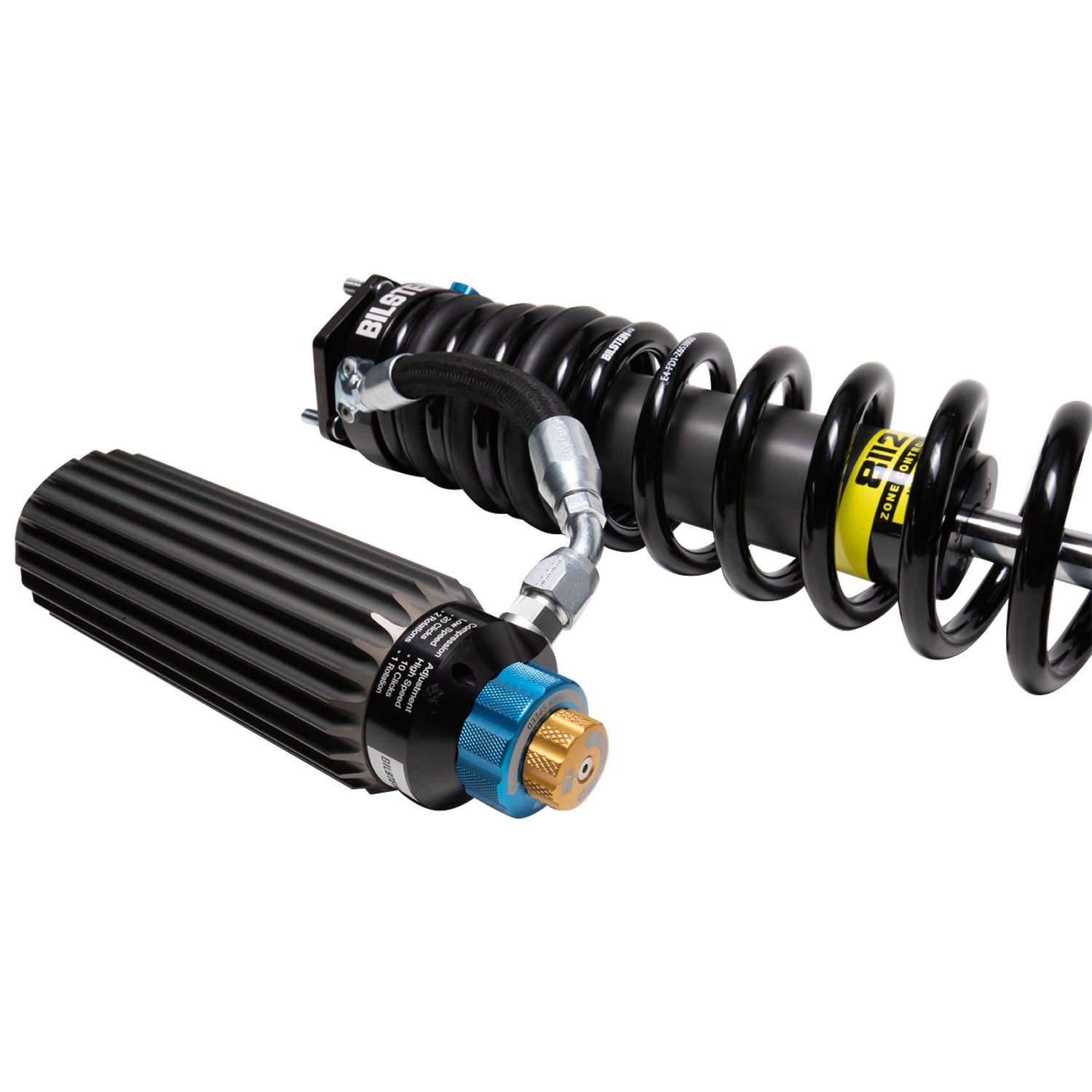

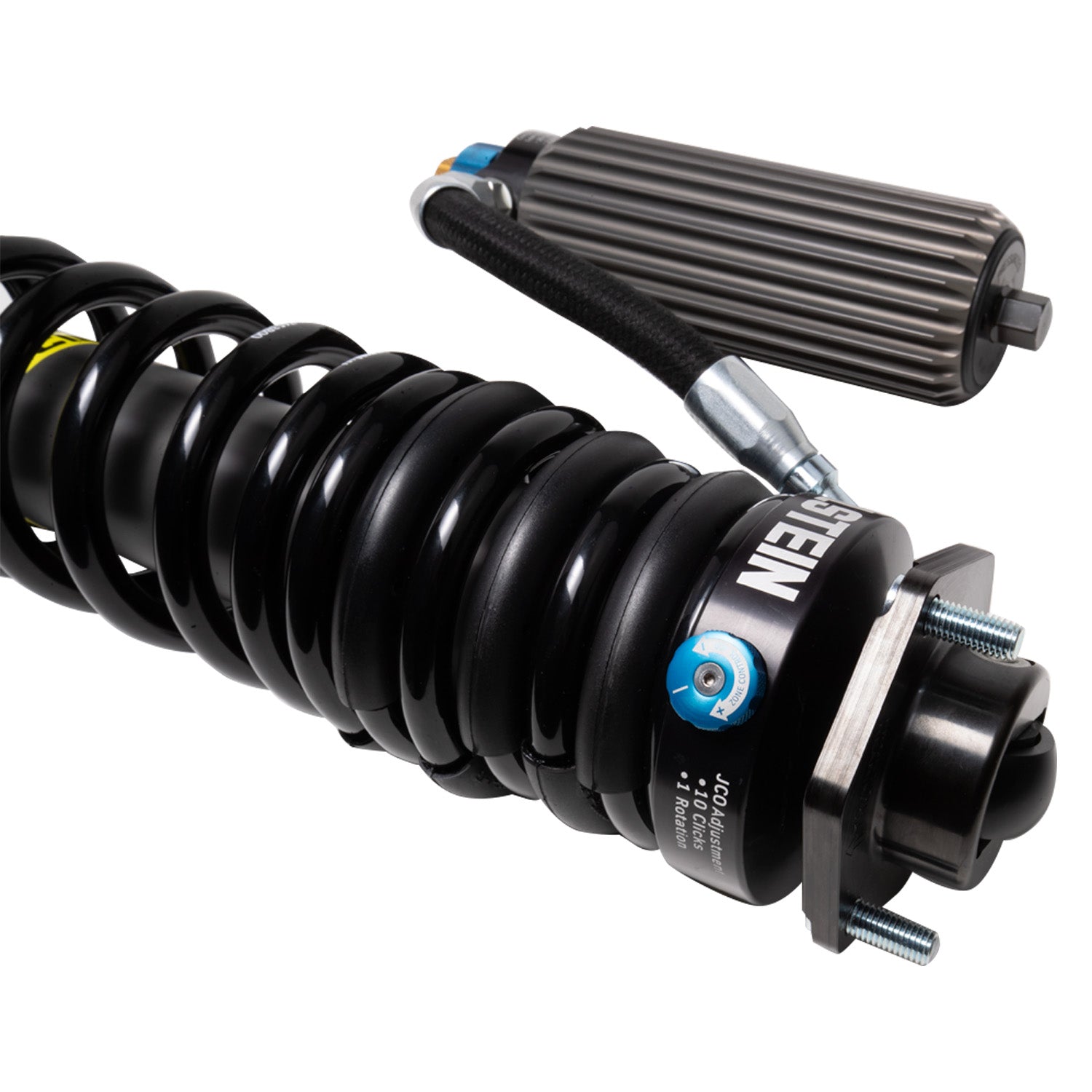

| Description_FAB | Click adjuster knobs allow easy and precise Dual Speed Adjustment of both low and high speed compression plus an adjustable JCO (internal hydraulic bump stop) |
| Description_FAB | Click adjuster knobs allow easy and precise Dual Speed Adjustment of both low and high speed compression plus an adjustable JCO (internal hydraulic bump stop) |
| Description_SHO | Rear Corner Module |
| Description_DEF | Suspension Shock Absorber and Coil Spring Assembly |
| Description_DES | B8 8112 (ZoneControl CR DSA+) - Rear Left Corner Module |
| Description_EXT | 60mm Rear Left Corner Module |
| Description_FAB | ZoneControl® CR: Position sensitive damping with 3 compression zones and 2 rebound zones, controlled by 3 independent pistons |
This Part Fits:
| Year | Make | Model | Submodel | Notes |
|---|---|---|---|---|
| 2021 | Ford | Bronco | Badlands | Provides 2.1-2.9" Rear Lift Without Sasquatch Package; 1.0-1.7" Rear Lift With Sasquatch Package,Provides 1.6-2.2" Rear Lift Without Sasquatch Package; 0.5-1.1" Rear Lift With Sasquatch Package,Provides 2.1-2.9" Rear Lift Without Sasquatch Package; 1.0-1.7" Rear Lift With Sasquatch Package,Provides 2.1-2.9" Rear Lift Without Sasquatch Package; 1.0-1.7" Rear Lift With Sasquatch Package |
| 2022 | Ford | Bronco | Badlands | Provides 2.1-2.9" Rear Lift Without Sasquatch Package; 1.0-1.7" Rear Lift With Sasquatch Package,Provides 1.6-2.2" Rear Lift Without Sasquatch Package; 0.5-1.1" Rear Lift With Sasquatch Package,Provides 2.1-2.9" Rear Lift Without Sasquatch Package; 1.0-1.7" Rear Lift With Sasquatch Package,Provides 2.1-2.9" Rear Lift Without Sasquatch Package; 1.0-1.7" Rear Lift With Sasquatch Package |
| 2023 | Ford | Bronco | Badlands | Provides 2.1-2.9" Rear Lift Without Sasquatch Package; 1.0-1.7" Rear Lift With Sasquatch Package,Provides 1.6-2.2" Rear Lift Without Sasquatch Package; 0.5-1.1" Rear Lift With Sasquatch Package,Provides 2.1-2.9" Rear Lift Without Sasquatch Package; 1.0-1.7" Rear Lift With Sasquatch Package,Provides 2.1-2.9" Rear Lift Without Sasquatch Package; 1.0-1.7" Rear Lift With Sasquatch Package |
| 2024 | Ford | Bronco | Badlands | Provides 2.1-2.9" Rear Lift Without Sasquatch Package; 1.0-1.7" Rear Lift With Sasquatch Package,Provides 1.6-2.2" Rear Lift Without Sasquatch Package; 0.5-1.1" Rear Lift With Sasquatch Package,Provides 2.1-2.9" Rear Lift Without Sasquatch Package; 1.0-1.7" Rear Lift With Sasquatch Package,Provides 2.1-2.9" Rear Lift Without Sasquatch Package; 1.0-1.7" Rear Lift With Sasquatch Package |
| 2021 | Ford | Bronco | Base | Provides 2.7-3.3" Rear Lift Without Sasquatch Package; 0.5-1.1" Rear Lift With Sasquatch Package,Provides 2.8" Rear Lift Without Sasquatch Package; 1.0-1.7" Rear Lift With Sasquatch Package,Provides 2.7-3.3" Rear Lift Without Sasquatch Package; 0.5-1.1" Rear Lift With Sasquatch Package |
| 2022 | Ford | Bronco | Base | Provides 2.7-3.3" Rear Lift Without Sasquatch Package; 0.5-1.1" Rear Lift With Sasquatch Package,Provides 2.8" Rear Lift Without Sasquatch Package; 1.0-1.7" Rear Lift With Sasquatch Package,Provides 2.7-3.3" Rear Lift Without Sasquatch Package; 0.5-1.1" Rear Lift With Sasquatch Package |
| 2023 | Ford | Bronco | Base | Provides 2.7-3.3" Rear Lift Without Sasquatch Package; 0.5-1.1" Rear Lift With Sasquatch Package,Provides 2.8" Rear Lift Without Sasquatch Package; 1.0-1.7" Rear Lift With Sasquatch Package,Provides 2.7-3.3" Rear Lift Without Sasquatch Package; 0.5-1.1" Rear Lift With Sasquatch Package |
| 2021 | Ford | Bronco | Big Bend | Provides 2.7-3.3" Rear Lift Without Sasquatch Package; 0.5-1.1" Rear Lift With Sasquatch Package,Provides 2.8" Rear Lift Without Sasquatch Package; 1.0-1.7" Rear Lift With Sasquatch Package,Provides 2.8" Rear Lift Without Sasquatch Package; 1.0-1.7" Rear Lift With Sasquatch Package,Provides 2.7-3.3" Rear Lift Without Sasquatch Package; 0.5-1.1" Rear Lift With Sasquatch Package |
| 2022 | Ford | Bronco | Big Bend | Provides 2.7-3.3" Rear Lift Without Sasquatch Package; 0.5-1.1" Rear Lift With Sasquatch Package,Provides 2.8" Rear Lift Without Sasquatch Package; 1.0-1.7" Rear Lift With Sasquatch Package,Provides 2.8" Rear Lift Without Sasquatch Package; 1.0-1.7" Rear Lift With Sasquatch Package,Provides 2.7-3.3" Rear Lift Without Sasquatch Package; 0.5-1.1" Rear Lift With Sasquatch Package |
| 2023 | Ford | Bronco | Big Bend | Provides 2.7-3.3" Rear Lift Without Sasquatch Package; 0.5-1.1" Rear Lift With Sasquatch Package,Provides 2.8" Rear Lift Without Sasquatch Package; 1.0-1.7" Rear Lift With Sasquatch Package,Provides 2.8" Rear Lift Without Sasquatch Package; 1.0-1.7" Rear Lift With Sasquatch Package,Provides 2.7-3.3" Rear Lift Without Sasquatch Package; 0.5-1.1" Rear Lift With Sasquatch Package |
| 2024 | Ford | Bronco | Big Bend | Provides 2.7-3.3" Rear Lift Without Sasquatch Package; 0.5-1.1" Rear Lift With Sasquatch Package,Provides 2.8" Rear Lift Without Sasquatch Package; 1.0-1.7" Rear Lift With Sasquatch Package,Provides 2.8" Rear Lift Without Sasquatch Package; 1.0-1.7" Rear Lift With Sasquatch Package,Provides 2.7-3.3" Rear Lift Without Sasquatch Package; 0.5-1.1" Rear Lift With Sasquatch Package |
| 2021 | Ford | Bronco | Black Diamond | Provides 2.7-3.3" Rear Lift Without Sasquatch Package; 0.5-1.1" Rear Lift With Sasquatch Package,Provides 2.7-3.3" Rear Lift Without Sasquatch Package; 0.5-1.1" Rear Lift With Sasquatch Package,Provides 2.7-3.3" Rear Lift Without Sasquatch Package; 0.5-1.1" Rear Lift With Sasquatch Package,Provides 2.7-3.3" Rear Lift Without Sasquatch Package; 0.5-1.1" Rear Lift With Sasquatch Package |
| 2022 | Ford | Bronco | Black Diamond | Provides 2.7-3.3" Rear Lift Without Sasquatch Package; 0.5-1.1" Rear Lift With Sasquatch Package,Provides 2.7-3.3" Rear Lift Without Sasquatch Package; 0.5-1.1" Rear Lift With Sasquatch Package,Provides 2.7-3.3" Rear Lift Without Sasquatch Package; 0.5-1.1" Rear Lift With Sasquatch Package,Provides 2.7-3.3" Rear Lift Without Sasquatch Package; 0.5-1.1" Rear Lift With Sasquatch Package |
| 2023 | Ford | Bronco | Black Diamond | Provides 2.7-3.3" Rear Lift Without Sasquatch Package; 0.5-1.1" Rear Lift With Sasquatch Package,Provides 2.7-3.3" Rear Lift Without Sasquatch Package; 0.5-1.1" Rear Lift With Sasquatch Package,Provides 2.7-3.3" Rear Lift Without Sasquatch Package; 0.5-1.1" Rear Lift With Sasquatch Package,Provides 2.7-3.3" Rear Lift Without Sasquatch Package; 0.5-1.1" Rear Lift With Sasquatch Package |
| 2024 | Ford | Bronco | Black Diamond | Provides 2.7-3.3" Rear Lift Without Sasquatch Package; 0.5-1.1" Rear Lift With Sasquatch Package,Provides 2.7-3.3" Rear Lift Without Sasquatch Package; 0.5-1.1" Rear Lift With Sasquatch Package,Provides 2.7-3.3" Rear Lift Without Sasquatch Package; 0.5-1.1" Rear Lift With Sasquatch Package,Provides 2.7-3.3" Rear Lift Without Sasquatch Package; 0.5-1.1" Rear Lift With Sasquatch Package |
| 2022 | Ford | Bronco | Everglades | Provides 0.5-1.1" Rear Lift,Provides 0.5-1.1" Rear Lift,Provides 0.5-1.1" Rear Lift |
| 2023 | Ford | Bronco | Everglades | Provides 0.5-1.1" Rear Lift,Provides 0.5-1.1" Rear Lift,Provides 0.5-1.1" Rear Lift |
| 2024 | Ford | Bronco | Everglades | Provides 0.5-1.1" Rear Lift,Provides 0.5-1.1" Rear Lift,Provides 0.5-1.1" Rear Lift |
| 2021 | Ford | Bronco | First Edition | Provides 1.0-1.7" Rear Lift |
| 2023 | Ford | Bronco | Heritage Edition | Provides 0.5-1.1" Rear Lift,Provides 0.5-1.1" Rear Lift |
| 2024 | Ford | Bronco | Heritage Edition | Provides 0.5-1.1" Rear Lift,Provides 0.5-1.1" Rear Lift |
| 2023 | Ford | Bronco | Heritage Limited Edition | Provides 1.0-1.7" Rear Lift,Provides 0.5-1.1" Rear Lift |
| 2024 | Ford | Bronco | Heritage Limited Edition | Provides 1.0-1.7" Rear Lift,Provides 0.5-1.1" Rear Lift |
| 2021 | Ford | Bronco | Outer Banks | Provides 2.7-3.3" Rear Lift Without Sasquatch Package; 0.5-1.1" Rear Lift With Sasquatch Package,Provides 2.8" Rear Lift Without Sasquatch Package; 1.0-1.7" Rear Lift With Sasquatch Package,Provides 2.8" Rear Lift Without Sasquatch Package; 1.0-1.7" Rear Lift With Sasquatch Package,Provides 2.8" Rear Lift Without Sasquatch Package; 1.0-1.7" Rear Lift With Sasquatch Package |
| 2022 | Ford | Bronco | Outer Banks | Provides 2.7-3.3" Rear Lift Without Sasquatch Package; 0.5-1.1" Rear Lift With Sasquatch Package,Provides 2.8" Rear Lift Without Sasquatch Package; 1.0-1.7" Rear Lift With Sasquatch Package,Provides 2.8" Rear Lift Without Sasquatch Package; 1.0-1.7" Rear Lift With Sasquatch Package,Provides 2.8" Rear Lift Without Sasquatch Package; 1.0-1.7" Rear Lift With Sasquatch Package |
| 2023 | Ford | Bronco | Outer Banks | Provides 2.7-3.3" Rear Lift Without Sasquatch Package; 0.5-1.1" Rear Lift With Sasquatch Package,Provides 2.8" Rear Lift Without Sasquatch Package; 1.0-1.7" Rear Lift With Sasquatch Package,Provides 2.8" Rear Lift Without Sasquatch Package; 1.0-1.7" Rear Lift With Sasquatch Package,Provides 2.8" Rear Lift Without Sasquatch Package; 1.0-1.7" Rear Lift With Sasquatch Package |
| 2024 | Ford | Bronco | Outer Banks | Provides 2.7-3.3" Rear Lift Without Sasquatch Package; 0.5-1.1" Rear Lift With Sasquatch Package,Provides 2.8" Rear Lift Without Sasquatch Package; 1.0-1.7" Rear Lift With Sasquatch Package,Provides 2.8" Rear Lift Without Sasquatch Package; 1.0-1.7" Rear Lift With Sasquatch Package,Provides 2.8" Rear Lift Without Sasquatch Package; 1.0-1.7" Rear Lift With Sasquatch Package |
| 2021 | Ford | Bronco | Wildtrak | Provides 1.0-1.7" Rear Lift,Provides 1.0-1.7" Rear Lift,Provides 0.5-1.1" Rear Lift,Provides 1.0-1.7" Rear Lift |
| 2022 | Ford | Bronco | Wildtrak | Provides 1.0-1.7" Rear Lift,Provides 1.0-1.7" Rear Lift,Provides 0.5-1.1" Rear Lift,Provides 1.0-1.7" Rear Lift |
| 2023 | Ford | Bronco | Wildtrak | Provides 1.0-1.7" Rear Lift,Provides 1.0-1.7" Rear Lift,Provides 0.5-1.1" Rear Lift,Provides 1.0-1.7" Rear Lift |
| 2024 | Ford | Bronco | Wildtrak | Provides 1.0-1.7" Rear Lift,Provides 1.0-1.7" Rear Lift,Provides 0.5-1.1" Rear Lift,Provides 1.0-1.7" Rear Lift |
