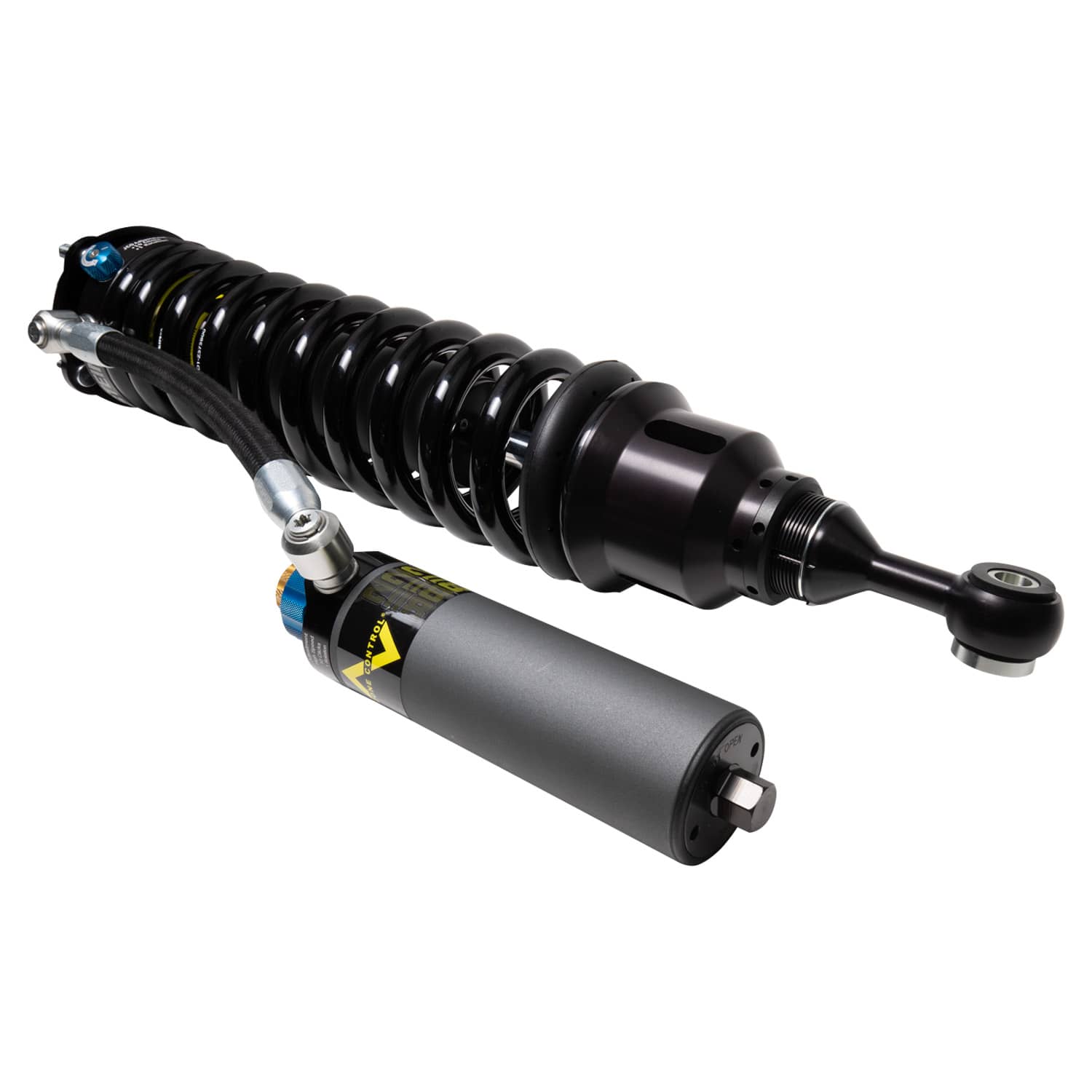

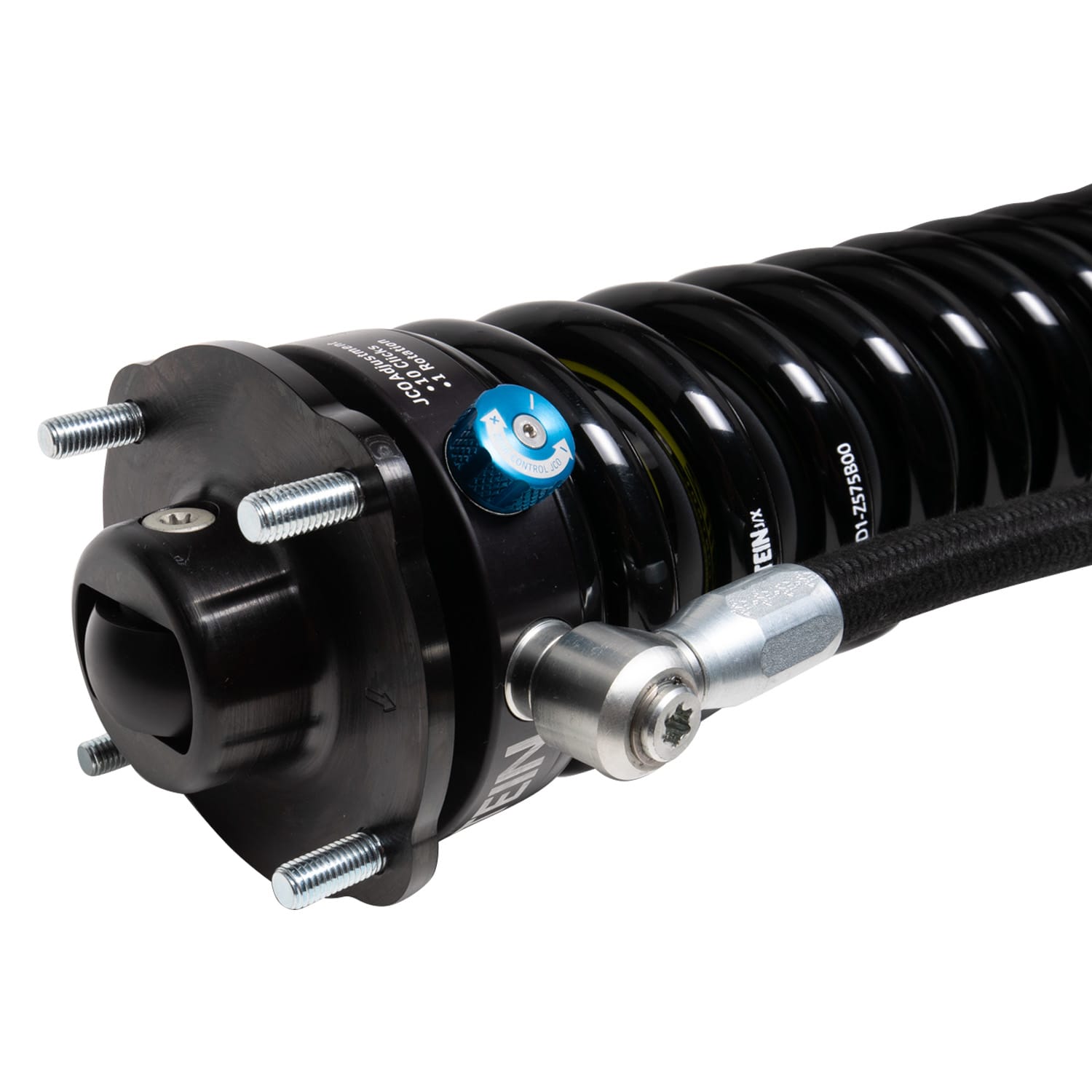

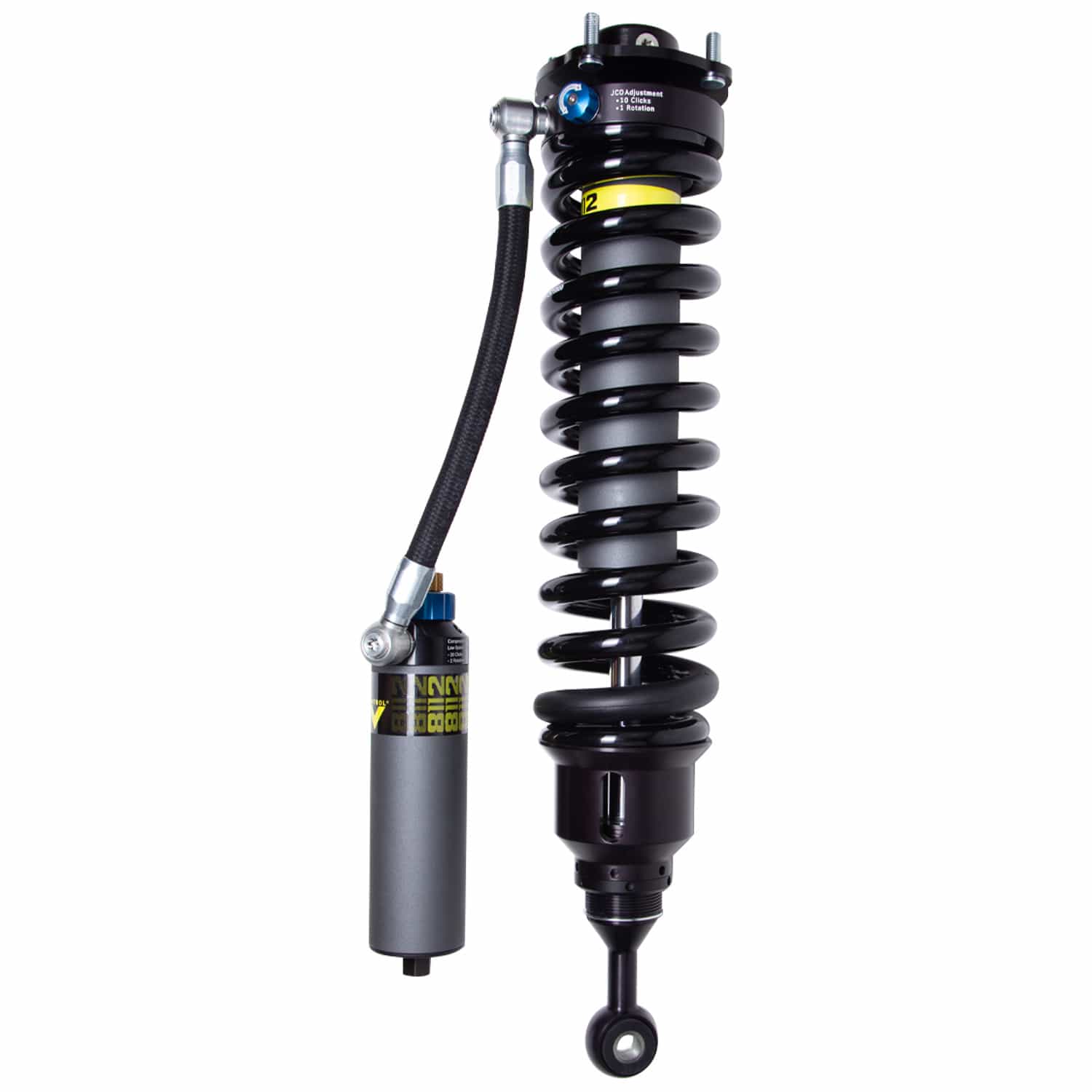

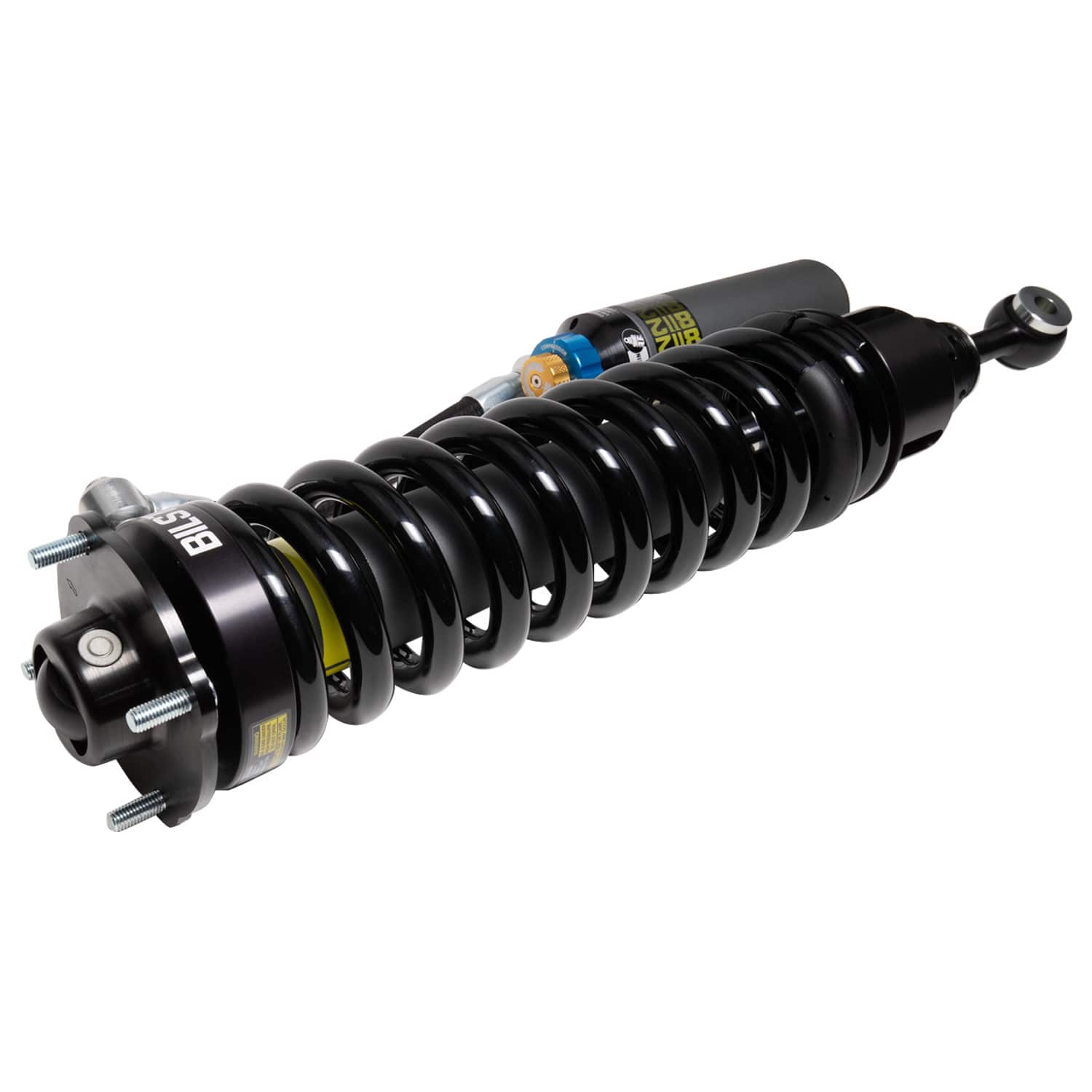

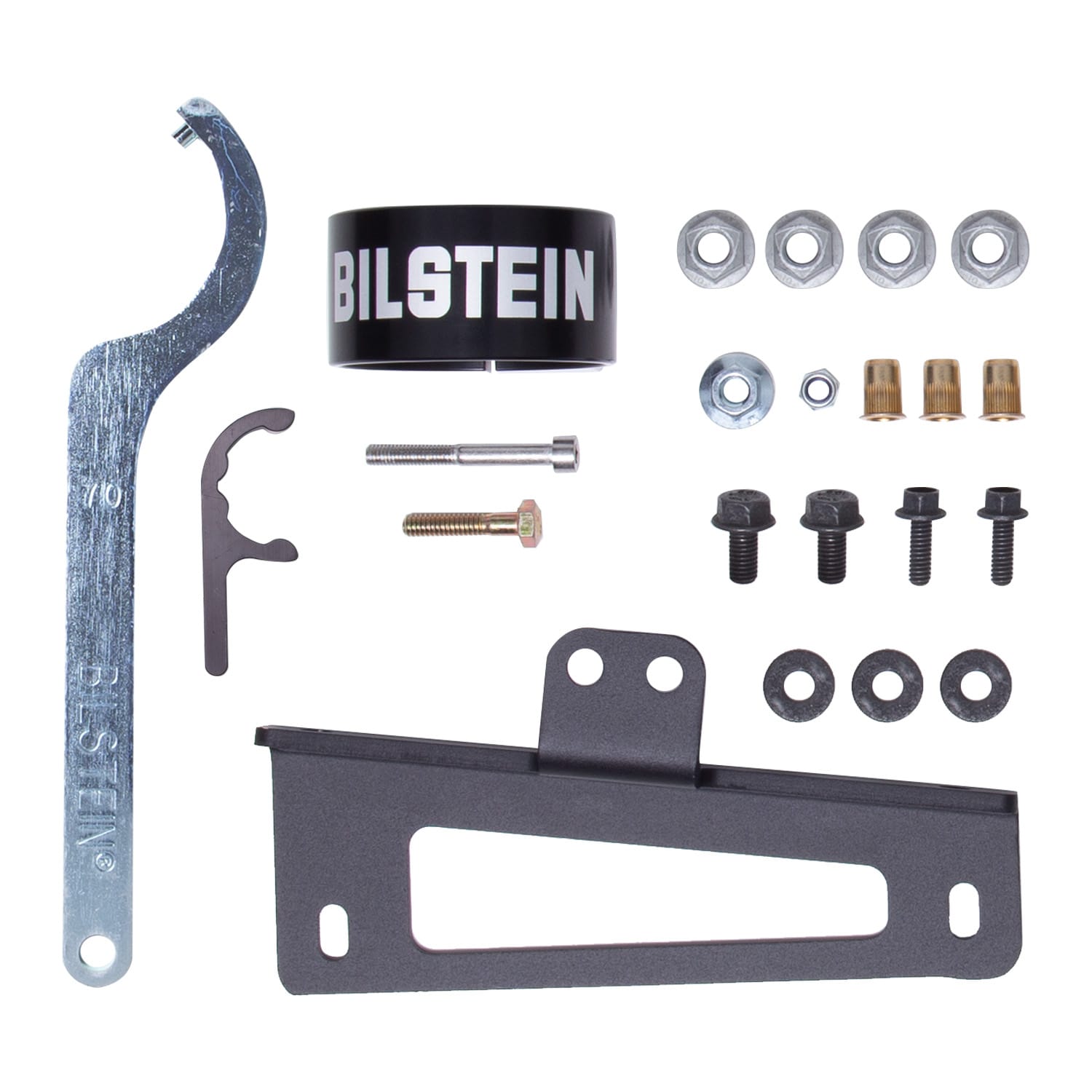

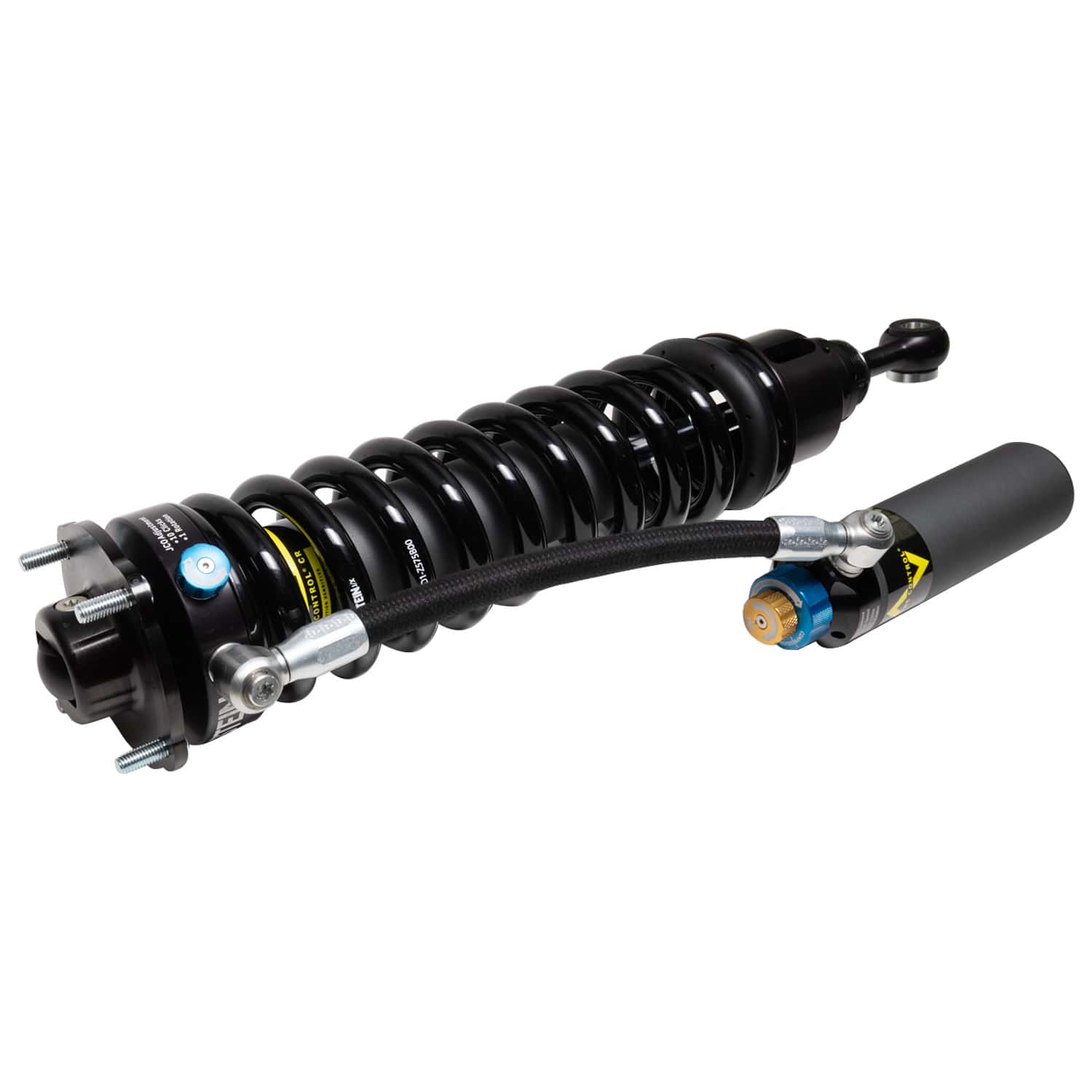

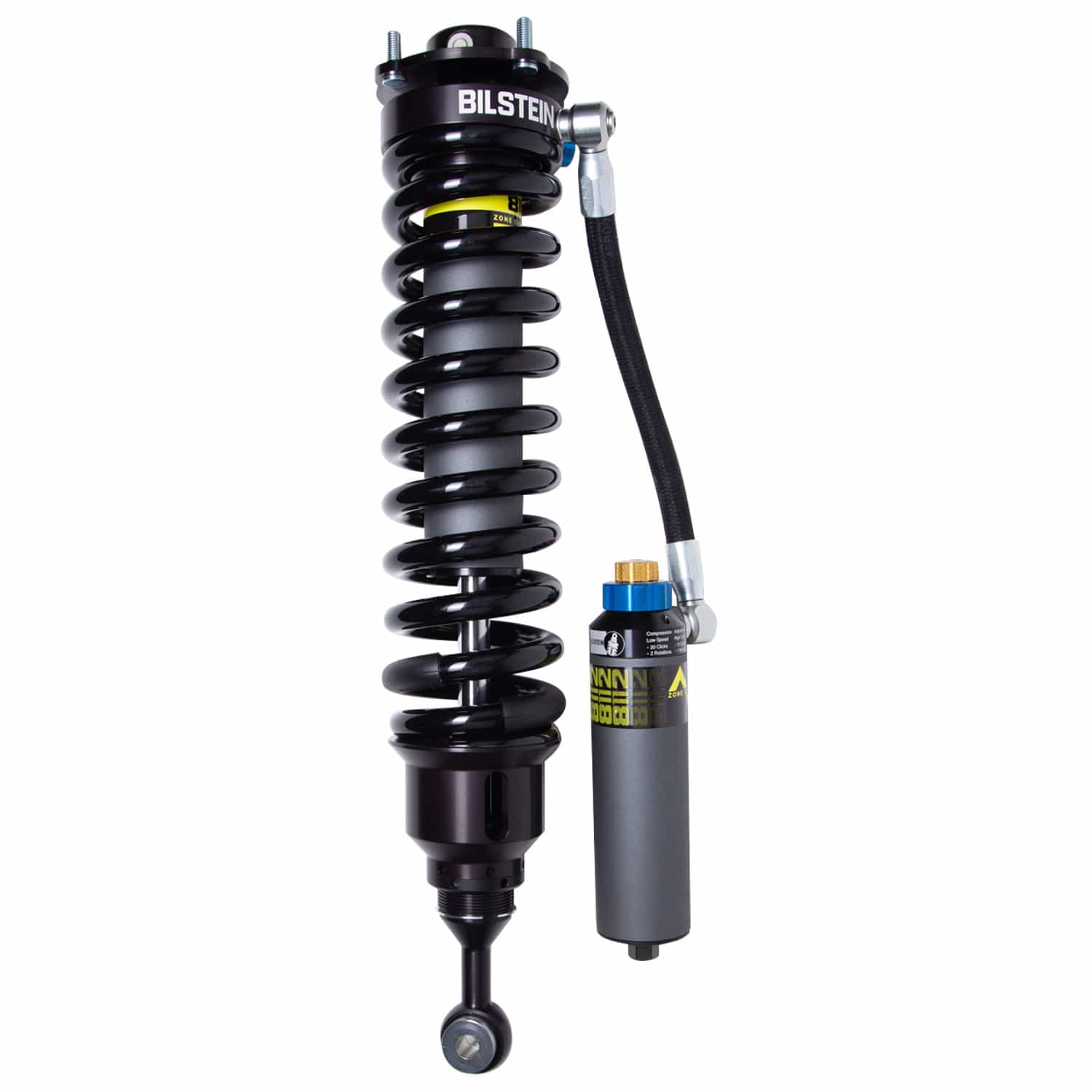

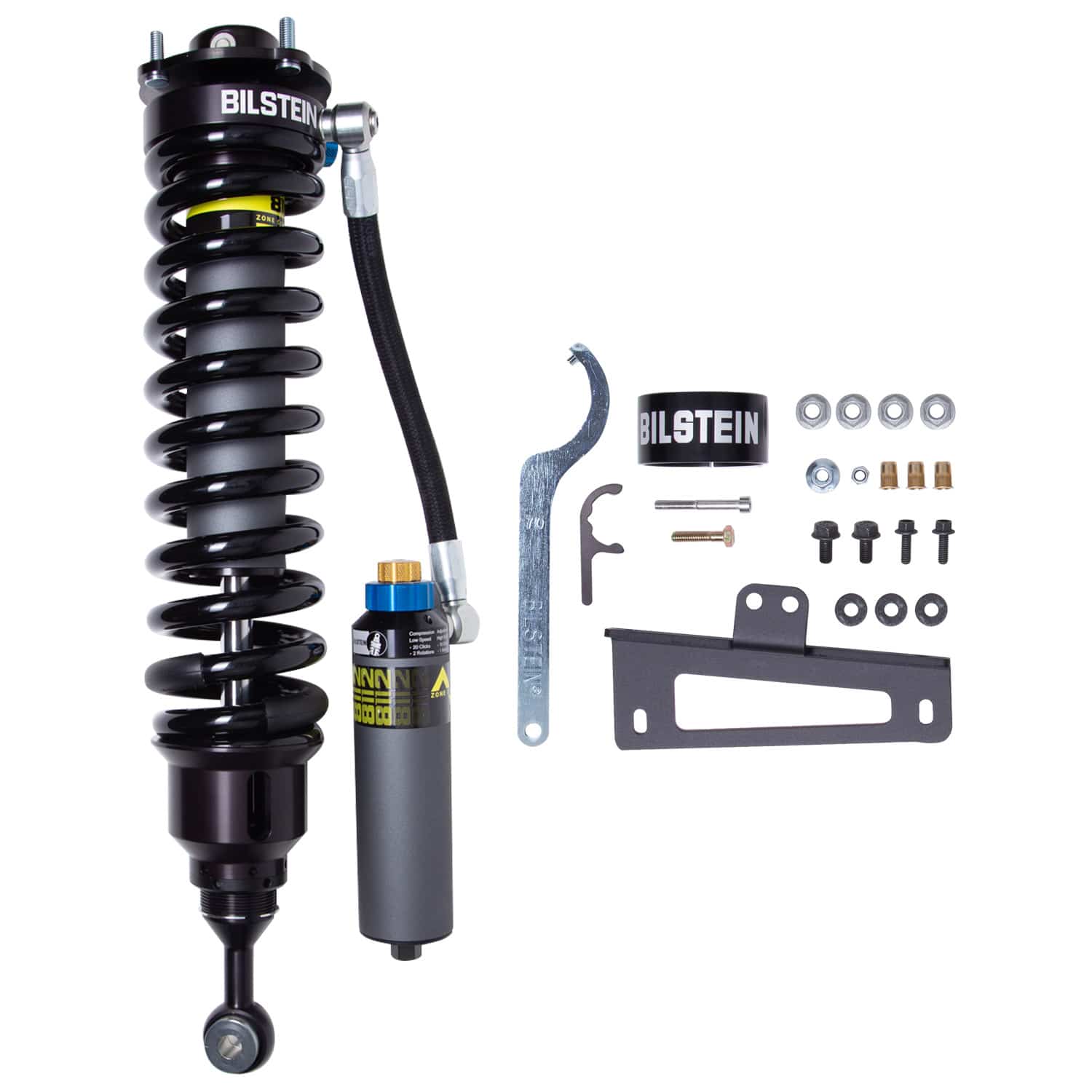

Bilstein B8 8112 (ZoneControl CR DSA+) is a direct fit, 3-way adjustable, 60mm, position sensitive coilover shock designed for light trucks and SUV’s. ZoneControl CR DSA+ is a revolutionary technology delivering position sensitive damping plus user Dual Speed Adjustability. The system incorporates a triple piston design, offering 3 stages of compression valving and 2 stages of rebound valving. Click adjuster knobs allow easy and precise Dual Speed Adjustment of both low and high speed compression plus an adjustable JCO (internal hydraulic bump stop). The coilover module utilizes a threaded spring seat for ride height adjustability ranging from 0-3” (depending on application). It is supplied with a remote reservoir for increased cooling along with an accompanied, bolt-on anodized reservoir chassis mount. Bilstein B8 8112 (ZoneControl CR DSA+) position sensitive Dual Speed Adjustable coilovers offer unparalleled ride comfort during every day driving combined with maximum control over large suspension inputs with the ability to quickly adjust the shock to tackle any terrain.

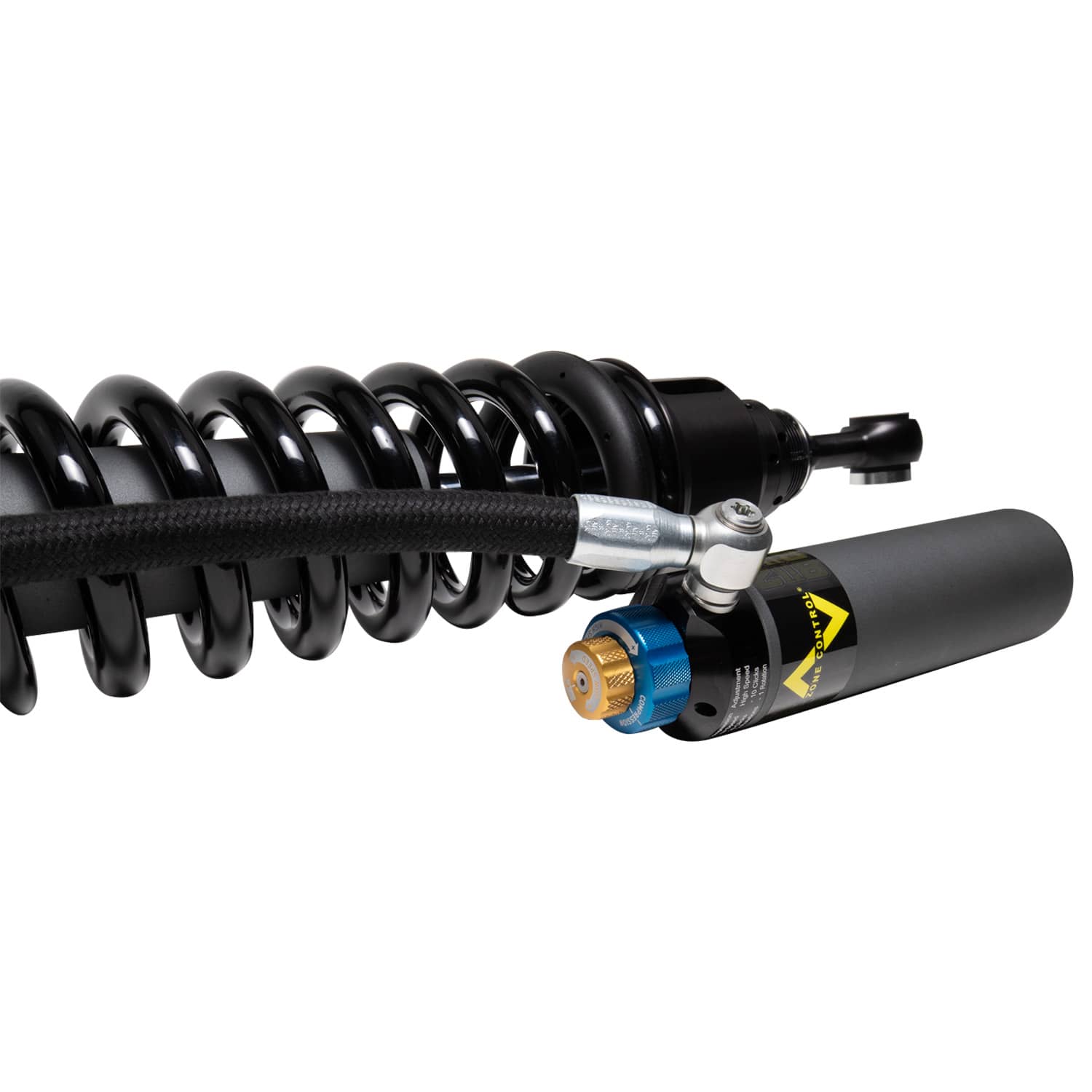

Bilstein B8 8112 (ZoneControl CR DSA+) - Front Left Corner Module 41-326084
Specifications:
| Internal Design | Monotube |
| Body Design | Smooth Body (Coilover) |
| PartType | Shocks / Struts |
| Reservoir | Yes |
| Title | Bilstein Shock Absorbers |
| Body Material | Steel |
| Spring Seat Included | Yes |
| Finish | Dampers: EVO Grey/Springs: Black |
| Adjustable Damping | Click Adjusters for High and Low Speed Compression plus internal Bump Stop (JCO) |
| Body Diameter (ID) | 60mm |
| Collapsed Length (MM) | 479.3 |
| Extended Length (MM) | 640.8 |
| Segment | Light Truck |
| Collapsed Length (IN) | 18.90 |
| Extended Length (IN) | 25.20 |
| Upper Mount Type | Special |
| Boot Included | No |
| Series | B8 8112 (ZoneControl CR DSA+) |
| Lower Mount Type | Eye 19.05mm |
| Prop 65 (Y/N) | Y |
| Prop 65 - Short Label | WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov |
| Description_FAB | ZoneControl® CR: Position sensitive damping with 3 compression zones and 2 rebound zones, controlled by 3 independent pistons |
| Description_SHO | Front Corner Module |
| Description_DEF | Suspension Shock Absorber and Coil Spring Assembly |
| Description_DES | B8 8112 (ZoneControl CR DSA+) - Front Left Corner Module |
| Description_EXT | 60mm Front Left Corner Module |
| Description_INV | Toyota Tundra '07-21; FL B8 8112 DSA+EVO |
| Description_LAB | B8 8112 (ZoneControl CR DSA+) - Front Left Corner Module |
| Description_ASM | Toyota Tundra 2021-2007 |
| Description_MKT | Bilstein B8 8112 (ZoneControl CR DSA+) is a direct fit, 3-way adjustable, 60mm, position sensitive coilover shock designed for light trucks and SUV’s. ZoneControl CR DSA+ is a revolutionary technology delivering position sensitive damping plus user Dual Speed Adjustability. The system incorporates a triple piston design, offering 3 stages of compression valving and 2 stages of rebound valving. Click adjuster knobs allow easy and precise Dual Speed Adjustment of both low and high speed compression plus an adjustable JCO (internal hydraulic bump stop). The coilover module utilizes a threaded spring seat for ride height adjustability ranging from 0-3” (depending on application). It is supplied with a remote reservoir for increased cooling along with an accompanied, bolt-on anodized reservoir chassis mount. Bilstein B8 8112 (ZoneControl CR DSA+) position sensitive Dual Speed Adjustable coilovers offer unparalleled ride comfort during every day driving combined with maximum control over large suspension inputs with the ability to quickly adjust the shock to tackle any terrain. |
| Description_FAB | Click adjuster knobs allow easy and precise Dual Speed Adjustment of both low and high speed compression plus an adjustable JCO (internal hydraulic bump stop) |
| Description_FAB | Click adjuster knobs allow easy and precise Dual Speed Adjustment of both low and high speed compression plus an adjustable JCO (internal hydraulic bump stop) |
This Part Fits:
| Year | Make | Model | Submodel | Notes |
|---|---|---|---|---|
| 2014 | Toyota | Tundra | 1794 Edition | |
| 2015 | Toyota | Tundra | 1794 Edition | |
| 2016 | Toyota | Tundra | 1794 Edition | |
| 2017 | Toyota | Tundra | 1794 Edition | |
| 2018 | Toyota | Tundra | 1794 Edition | |
| 2019 | Toyota | Tundra | 1794 Edition | |
| 2020 | Toyota | Tundra | 1794 Edition | |
| 2021 | Toyota | Tundra | 1794 Edition | |
| 2007 | Toyota | Tundra | Base | |
| 2008 | Toyota | Tundra | Base | |
| 2009 | Toyota | Tundra | Base | |
| 2010 | Toyota | Tundra | Base | |
| 2011 | Toyota | Tundra | Base | |
| 2012 | Toyota | Tundra | Base | |
| 2013 | Toyota | Tundra | Base | |
| 2007 | Toyota | Tundra | Limited | |
| 2008 | Toyota | Tundra | Limited | |
| 2009 | Toyota | Tundra | Limited | |
| 2010 | Toyota | Tundra | Limited | |
| 2011 | Toyota | Tundra | Limited | |
| 2012 | Toyota | Tundra | Limited | |
| 2013 | Toyota | Tundra | Limited | |
| 2014 | Toyota | Tundra | Limited | |
| 2015 | Toyota | Tundra | Limited | |
| 2016 | Toyota | Tundra | Limited | |
| 2017 | Toyota | Tundra | Limited | |
| 2018 | Toyota | Tundra | Limited | |
| 2019 | Toyota | Tundra | Limited | |
| 2020 | Toyota | Tundra | Limited | |
| 2021 | Toyota | Tundra | Limited | |
| 2021 | Toyota | Tundra | Nightshade | |
| 2013 | Toyota | Tundra | Platinum | |
| 2014 | Toyota | Tundra | Platinum | |
| 2015 | Toyota | Tundra | Platinum | |
| 2016 | Toyota | Tundra | Platinum | |
| 2017 | Toyota | Tundra | Platinum | |
| 2018 | Toyota | Tundra | Platinum | |
| 2019 | Toyota | Tundra | Platinum | |
| 2020 | Toyota | Tundra | Platinum | |
| 2021 | Toyota | Tundra | Platinum | |
| 2014 | Toyota | Tundra | SR | |
| 2015 | Toyota | Tundra | SR | |
| 2016 | Toyota | Tundra | SR | |
| 2017 | Toyota | Tundra | SR | |
| 2018 | Toyota | Tundra | SR | |
| 2019 | Toyota | Tundra | SR | |
| 2020 | Toyota | Tundra | SR | |
| 2021 | Toyota | Tundra | SR | |
| 2021 | Toyota | Tundra | Trail |
