Bilstein AS2 Series Suspension Shock Absorbers are designed for motorsports applications and provide the user with the option to rebuild them. The modular aluminum design is offered in non-, single and double adjustable configurations which provide superior on-vehicle tuning capabilities. The threaded body provides precise height adjustments for coilover setups and dissipates heat quickly. The hard anodized coating reduces internal friction and improves strength and durability (pistons, piston bands and heims are sold separately to allow for a variety of combinations). AS2 Series Suspension Shock Absorbers are ideal for racers demanding a lightweight design with upgrade capability.

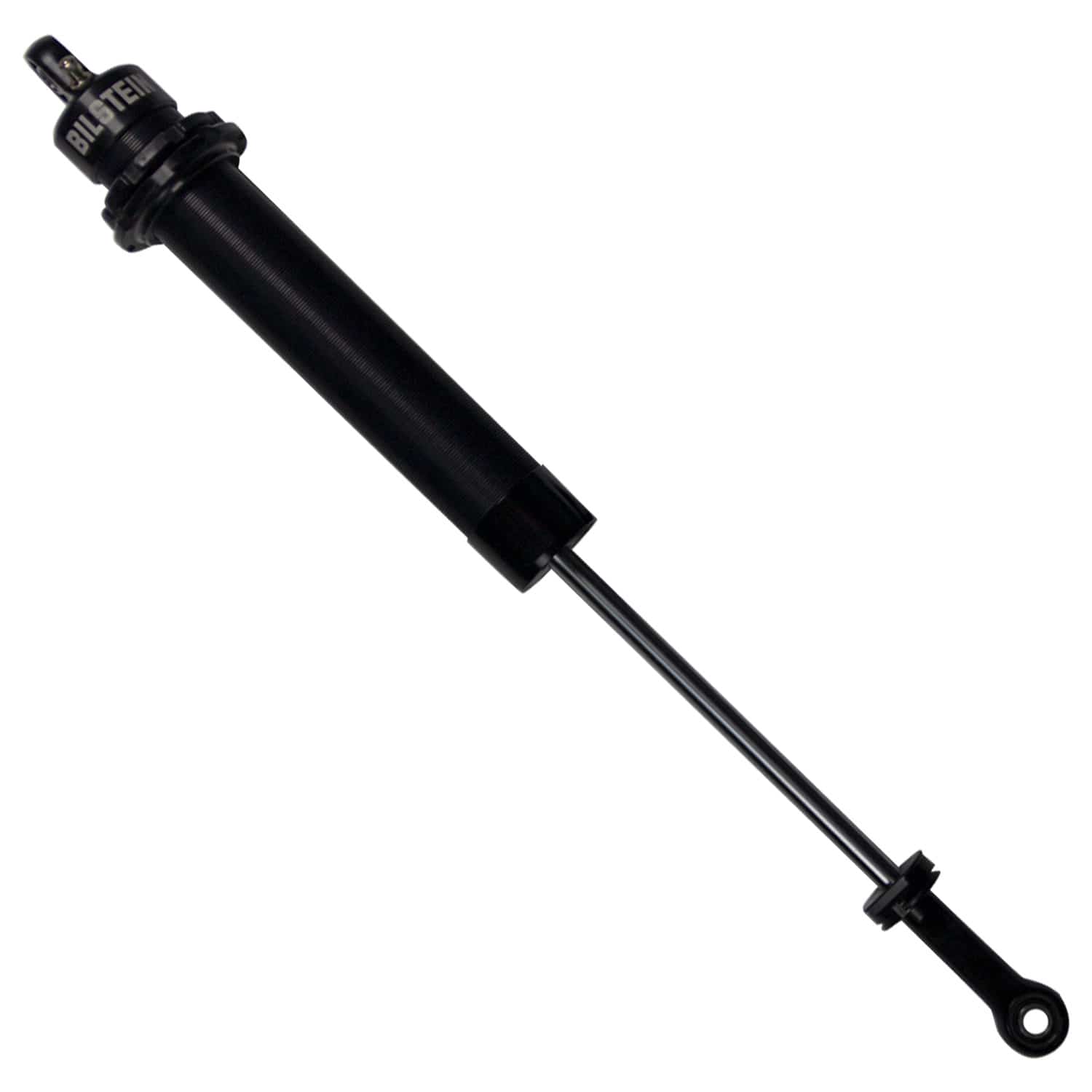

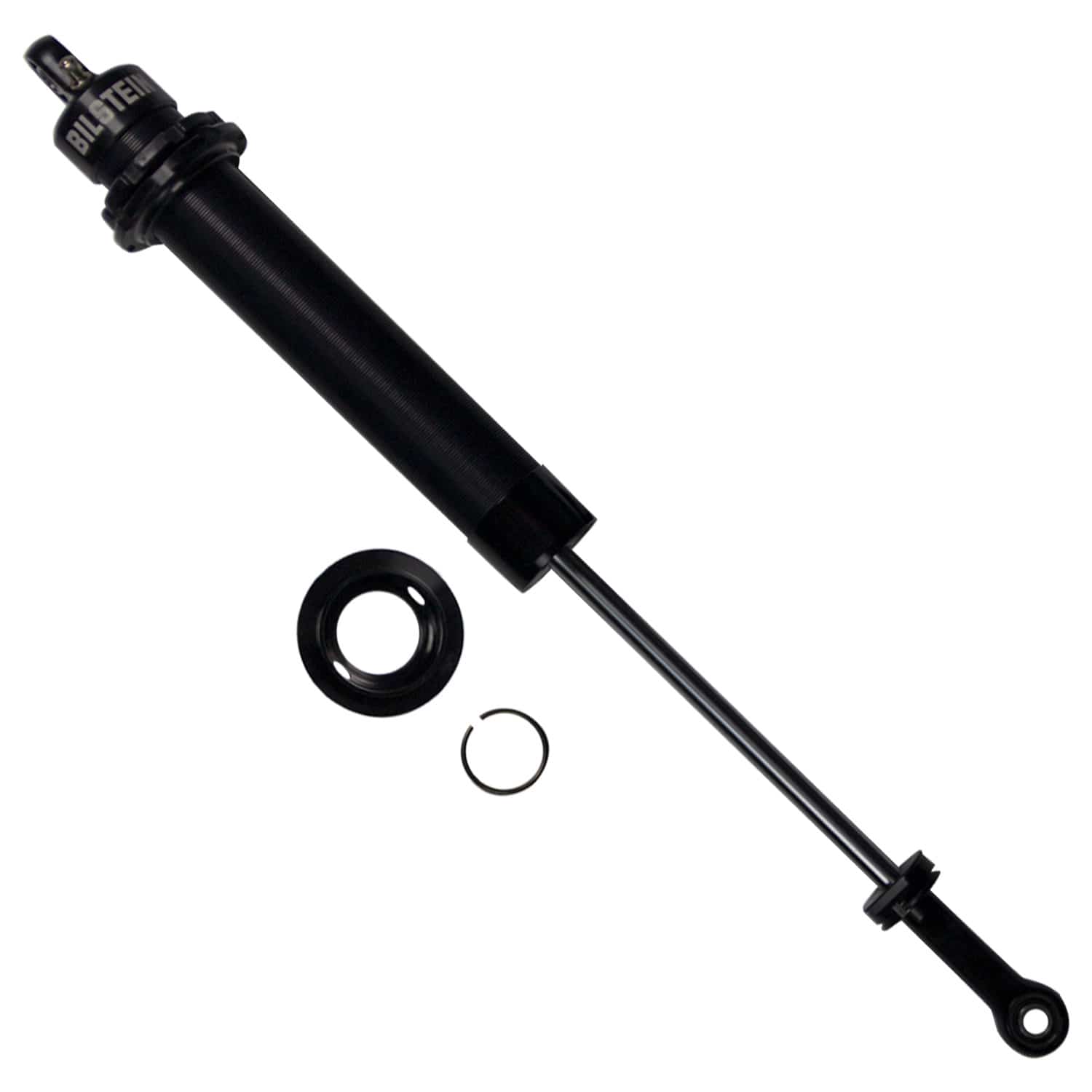

Bilstein 46mm Monotube Suspension Shock Absorber 33-334103
Specifications:
| PartType | Shocks / Struts |
| Internal Design | Monotube |

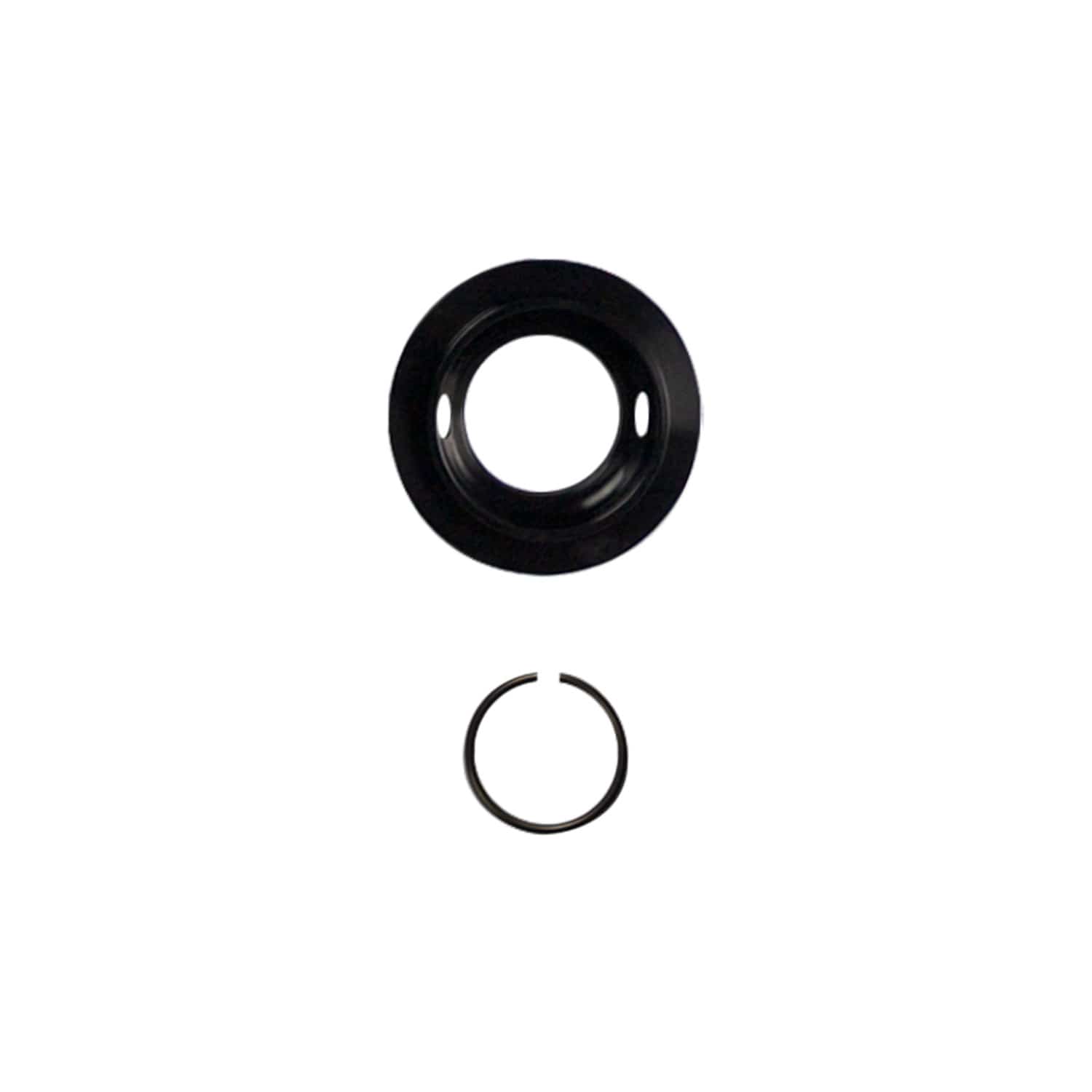

| Spring Seat Included | Yes |
| Body Diameter (ID) | 46mm |
| Finish | Clear Anodized |
| Extended Length (MM) | 656.6 |
| Adjustable Damping | Non-Adjustable |
| Extended Length (IN) | 25.85 |
| Series | AS2 Series |
| Prop 65 (Y/N) | Y |
| Prop 65 - Short Label | WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov |
| Collapsed Length (MM) | 429.3 |
| Title | Bilstein Shock Absorbers |
| Body Material | Aluminum |
| Collapsed Length (IN) | 16.90 |
| Upper Mount Type | 1/2in teflon heim |
| Body Design | Threaded Body Screw Top (Coilover) |
| Boot Included | No |
| Lower Mount Type | 1/2in teflon heim |
| Piston Type | Digressive |
| Segment | Motorsports |
| Description_FAB | Fine thread body provides precise adjustments in coilover applications |
| Description_FAB | Fine thread body provides precise adjustments in coilover applications |
| Description_SHO | Shock |
| Description_DEF | Suspension Shock Absorber |
| Description_DES | AS2 Series - Suspension Shock Absorber |
| Description_EXT | 46mm Monotube Suspension Shock Absorber |
| Description_INV | AS2, Left Rear Behind BIG Crate NA |
| Description_LAB | AS2 Series - Suspension Shock Absorber |
| Description_ASM | No Applications |
| Description_MKT | Bilstein AS2 Series Suspension Shock Absorbers are designed for motorsports applications and provide the user with the option to rebuild them. The modular aluminum design is offered in non-, single and double adjustable configurations which provide superior on-vehicle tuning capabilities. The threaded body provides precise height adjustments for coilover setups and dissipates heat quickly. The hard anodized coating reduces internal friction and improves strength and durability (pistons, piston bands and heims are sold separately to allow for a variety of combinations). AS2 Series Suspension Shock Absorbers are ideal for racers demanding a lightweight design with upgrade capability. |
| Description_FAB | 46mm lightweight extruded aluminum body for superior heat dissipation |
