*item may differ from images

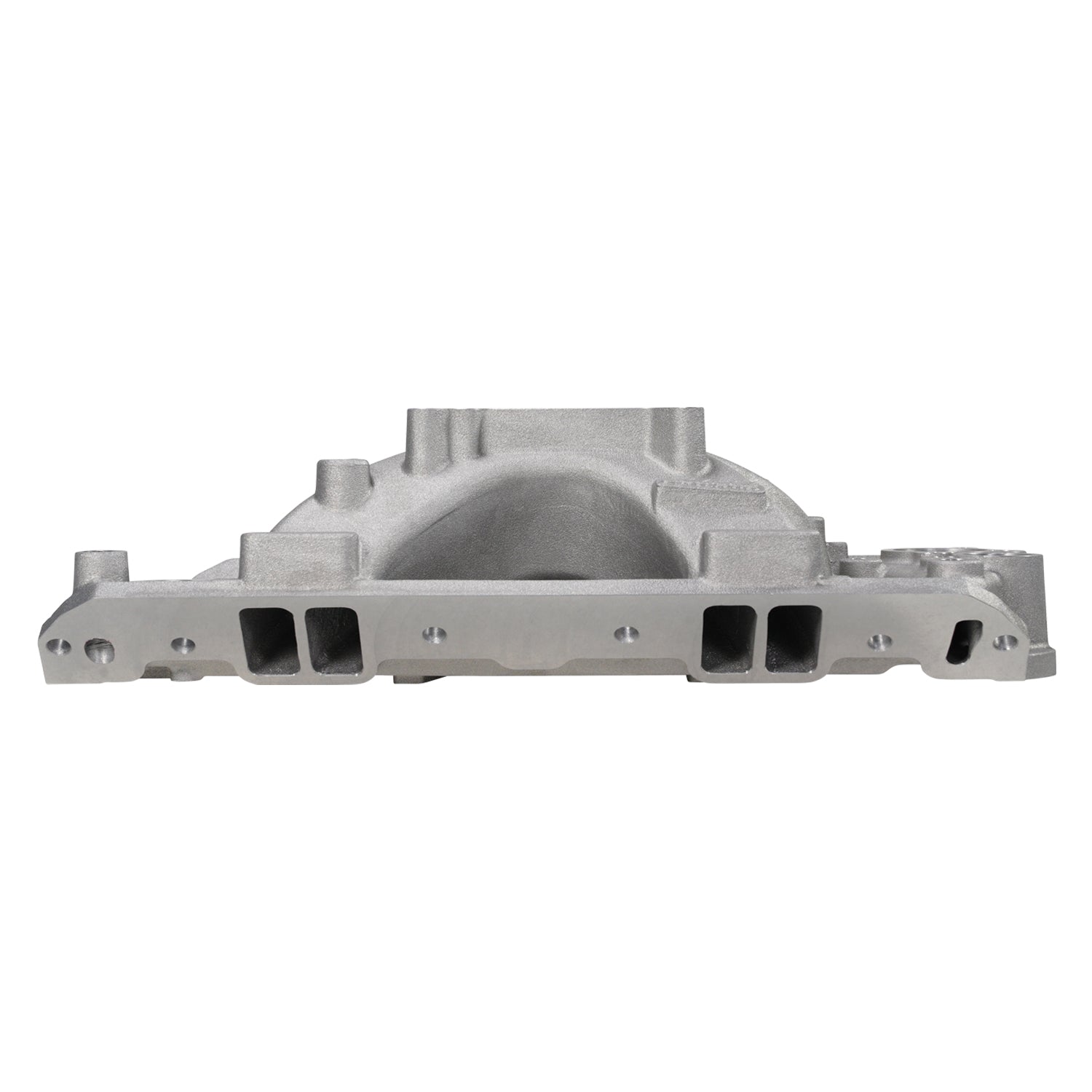

Edelbrock part #28110 Victor Jr. AMC intake manifold is designed for 1970-91 AMC 304-401 c.i.d. V8 engines in Carbureted applications.
Edelbrock Engine Intake Manifold 28110
Specifications:
| Port Exit Dimensions | 1.06 x 2.13 |
| Finish | Satin |
| Recommended Use | Carbureted Applications |
| EGR Port | No |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Mounting Hole Quantity | (Carb Bolt) 4 |
| Mounting Hole Diameter | (Carb Bolt) 5/16-18 UNC |
| Material | Aluminum |
| Angle | (Carb) 0 |
| Front Maximum Height | (A) 5.74 |
| Grade Type | Performance |
| Rear Maximum Height | (B) (Measured To Engine Block) 5.74 |
| CNC Ported | No |
| Bolt Hole Centerline To Port Roof | 1.16 |
| Flange Type | 4150 |
| Bolt Hole Centerline To Port Floor | 0.97 |
| Vehicle Model | AMC |
| Quantity | Sold Individually |
| Center Maximum Height | 5.74 |
| Basic Operating RPM Range | 3500-7500 |
| Single Or Dual Plane Type | Single Plane |
| Series | Victor |
| Gasket Or Seal Included | No |
| Description_EXT | Victor Jr. Intake Manifold Designed for 1970-91 AMC 304-360-390-401 c.i.d. V8 engines in Carbureted applications. |
| Description_MKT | Edelbrock part #28110 Victor Jr. AMC intake manifold is designed for 1970-91 AMC 304-401 c.i.d. V8 engines in Carbureted applications. |
| Description_DEF | Engine Intake Manifold |
| Description_ABR | Intake Mnfld |
| Description_INV | Victor Jr AMC 1970-91 Manifold Carburete |
| Description_LAB | Victor Jr. Intake Manifold #28110 For 1970-91 AMC 304-401 Carbureted V8, Satin |
| Description_ASM | AMC:Small-Block:304 (5.0L)/343 (5.6)/360 (5.9L)/390 (6.4)/401 (6.6L) |
