*item may differ from images
Developed from our off-road race shocks, FOX Factory Race Series combines race-proven technology with new, cutting-edge features to provide enhanced ride-quality and winning damping performance you can bolt onto your truck or SUV.

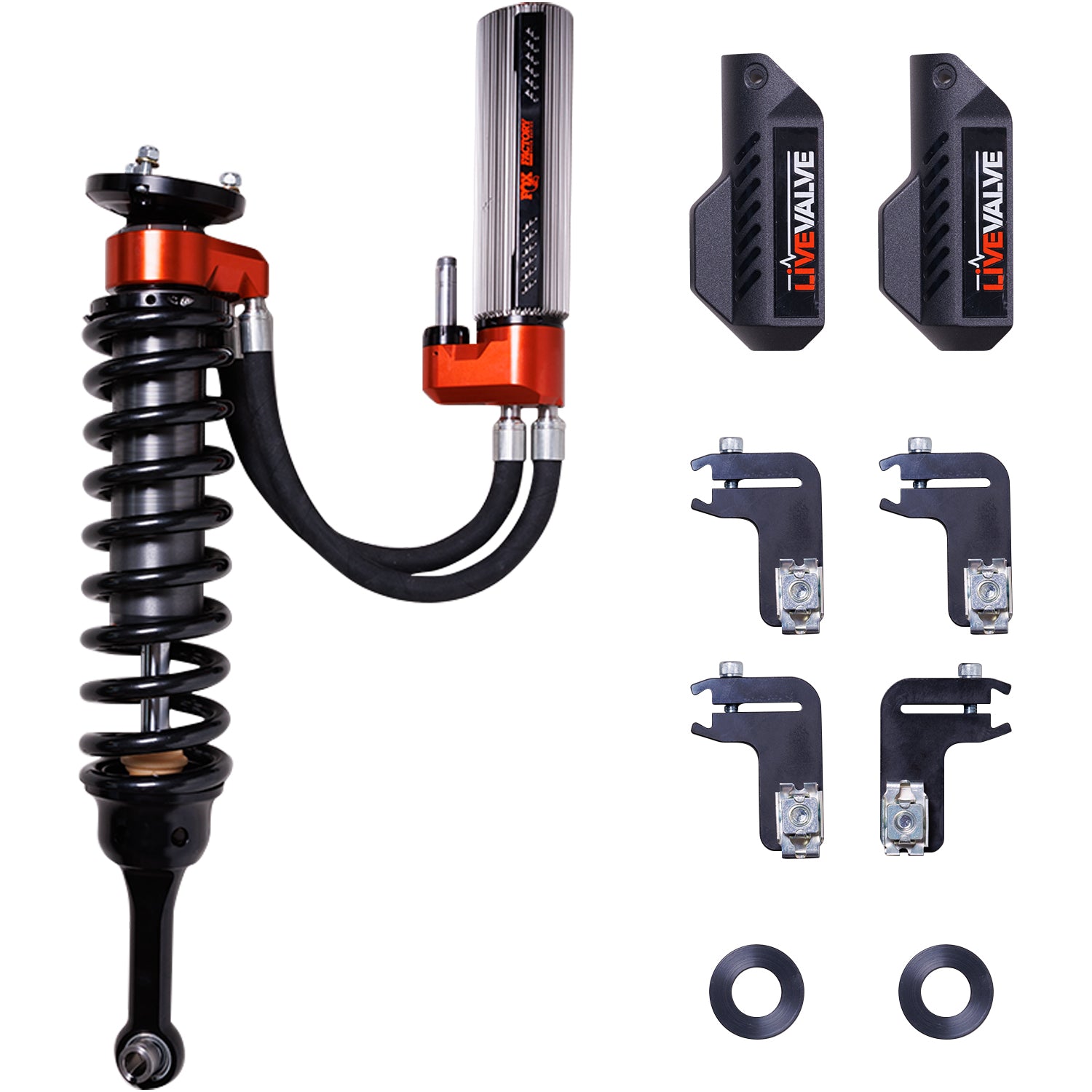

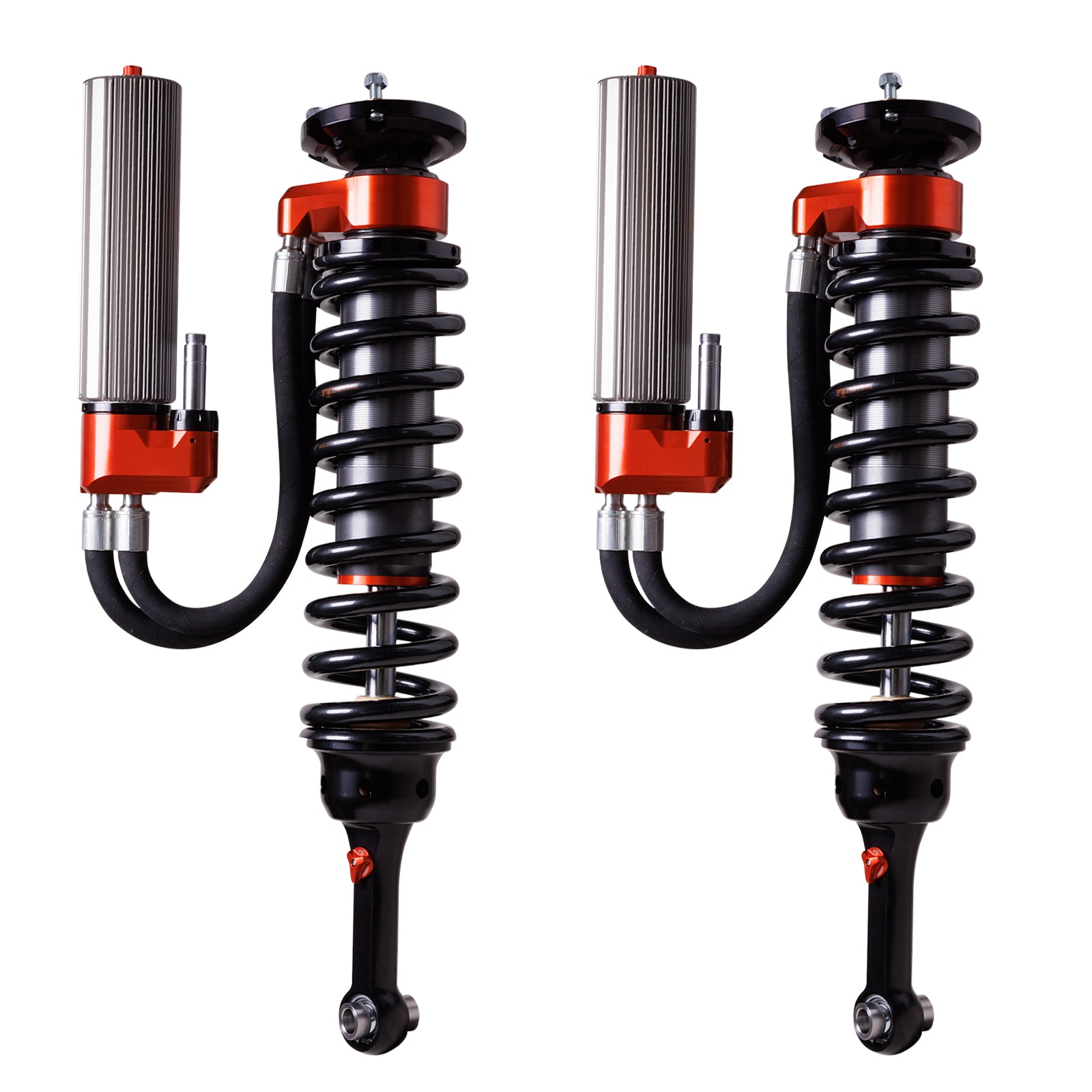

FOX Offroad Shocks FACTORY RACE SERIES 3.0 LIVE VALVE INTERNAL BYPASS COIL-OVER (PAIR) - ADJUSTABLE 883-06-182
Specifications:
| Title | FACTORY RACE SERIES 3.0 LIVE VALVE INTERNAL BYPASS COIL-OVER (PAIR) - ADJUSTABLE |
| Top Mount | OEM |
| Travel (in) | 6.85 |
| Reservoir Type | Remote |
| Series | Factory Race |
| Type | Coil-Over Internal Bypass |
| Adjuster Type | Live Valve |
| Body Material | Aluminum |
| Bottom Mount | Eyelet |
| California Proposition 65 | ! WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Compressed Length (in) | 22.36 |
| Extended Length (in) | 29.21 |
| Fox Catalog | TRUCK |
| Label Name | Kit: 21.5-ON Ford Raptor Front, Coilover, Live Valve, Internal Bypass,3.0 Series, R/R, 35"/37" Tire 0-1"/0-.5" Lift |
| Body Diameter (in) | 3.0 |
| Prop 65 Y/n | Y |
| Description_DES | FACTORY RACE SERIES 3.0 LIVE VALVE INTERNAL BYPASS COIL-OVER (PAIR) - ADJUSTABLE |
| Description_LAB | Kit: 21.5-ON Ford Raptor Front, C/O, Live Valve, Internal Bypass,3.0 Series, R/R |
| Description_SHO | 3.0 Bypass Shocks |
| Description_ASC | Uncompromised performance through FOX’s patented internal bypass technology delivers the feel of near-endless suspension travel. Exclusive internal bypass technology allows oil to flow around the piston at some points of the stroke – while creating humongous pressure at other points – supporting the vehicle like no other product can.Floating through terrain is accomplished with FOX’s ride zone – combining a race-developed shock piston, internal bypass and Dual Speed Compression adjustment – allowing fine tuning for weight, terrain and speed.Dominate any terrain with the brute strength of 3- and 2.5-inch aluminum bodies, cactus cooler reservoirs and 7/8” shafts with redundant seals, all proven in the harshest of environments under the toughest of conditions. |
| Description_INV | FOX 3.0 FACTORY LIVE VALVE INT BP SHOCKS |
| Description_EXT | Application specific valving to maximize performance. |
| Description_FAB | Performance Tuned Specifically For Raptor |
| Description_FAB | Finned External Reservoir System Dissipates Heat Fast |
| Description_FAB | Quick Switch Compression And Rebound Adjusters |
| Description_FAB | Live Valve Terrain Adaptive Technology |
| Description_FAB | Black Anodized CNC Machined Aluminum Components |
| Description_MKT | Developed from our off-road race shocks, FOX Factory Race Series combines race-proven technology with new, cutting-edge features to provide enhanced ride-quality and winning damping performance you can bolt onto your truck or SUV. |
| Description_DEF | Suspension Shock Absorber Kit |
This Part Fits:
| Year | Make | Model | Submodel | Notes |
|---|---|---|---|---|
| 2021 | Ford | F-150 | Raptor | Lift: 1; 0.5" lift achievable with 37" Tire package. Does not fit Dual Valve Equipped Trucks,Lift: 1; 0.5" lift achievable with 37" Tire package. Does not fit Dual Valve Equipped Trucks,Lift: 1; 0.5" lift achievable with 37" Tire package. Does not fit Dual Valve Equipped Trucks,Lift: 1; 0.5" lift achievable with 37" Tire package. Does not fit Dual Valve Equipped Trucks,Lift: 1; 0.5" lift achievable with 37" Tire package. Does not fit Dual Valve Equipped Trucks |
| 2022 | Ford | F-150 | Raptor | Lift: 1; 0.5" lift achievable with 37" Tire package. Does not fit Dual Valve Equipped Trucks,Lift: 1; 0.5" lift achievable with 37" Tire package. Does not fit Dual Valve Equipped Trucks,Lift: 1; 0.5" lift achievable with 37" Tire package. Does not fit Dual Valve Equipped Trucks,Lift: 1; 0.5" lift achievable with 37" Tire package. Does not fit Dual Valve Equipped Trucks,Lift: 1; 0.5" lift achievable with 37" Tire package. Does not fit Dual Valve Equipped Trucks |
| 2023 | Ford | F-150 | Raptor | Lift: 1; 0.5" lift achievable with 37" Tire package. Does not fit Dual Valve Equipped Trucks,Lift: 1; 0.5" lift achievable with 37" Tire package. Does not fit Dual Valve Equipped Trucks,Lift: 1; 0.5" lift achievable with 37" Tire package. Does not fit Dual Valve Equipped Trucks,Lift: 1; 0.5" lift achievable with 37" Tire package. Does not fit Dual Valve Equipped Trucks,Lift: 1; 0.5" lift achievable with 37" Tire package. Does not fit Dual Valve Equipped Trucks |
| 2024 | Ford | F-150 | Raptor | Lift: 1; 0.5" lift achievable with 37" Tire package. Does not fit Dual Valve Equipped Trucks,Lift: 1; 0.5" lift achievable with 37" Tire package. Does not fit Dual Valve Equipped Trucks,Lift: 1; 0.5" lift achievable with 37" Tire package. Does not fit Dual Valve Equipped Trucks,Lift: 1; 0.5" lift achievable with 37" Tire package. Does not fit Dual Valve Equipped Trucks,Lift: 1; 0.5" lift achievable with 37" Tire package. Does not fit Dual Valve Equipped Trucks |
| 2025 | Ford | F-150 | Raptor | Lift: 1; 0.5" lift achievable with 37" Tire package. Does not fit Dual Valve Equipped Trucks,Lift: 1; 0.5" lift achievable with 37" Tire package. Does not fit Dual Valve Equipped Trucks,Lift: 1; 0.5" lift achievable with 37" Tire package. Does not fit Dual Valve Equipped Trucks,Lift: 1; 0.5" lift achievable with 37" Tire package. Does not fit Dual Valve Equipped Trucks,Lift: 1; 0.5" lift achievable with 37" Tire package. Does not fit Dual Valve Equipped Trucks |
