ReadyLIFT offers a pre-load lift style SST Lift Kit for the 2005-2023 Toyota Tacoma 2WD/4WD 6-lug trucks. Our traditional top mount strut extension 3" SST lift kits have been extremely popular for the past decade, but some customers favor a pre-load style lift kit, so we have added this lift technology to our product portfolio. Now you have more ReadyLIFT quality choices when it comes to lifting a Toyota Tacoma! ReadyLIFT's 69-5530 3/2 SST lift kit provides 3" total lift in front and 2" of lift in the rear. This new kit utilizes a precision crafted CNC-machined billet Aluminum pre-load spacer that installs between the factory spring and the top hat. This design slightly increases front spring rate, reducing nose dive during braking and improving front roll during hard turning at speed. Like our traditional Tacoma lift kits, the new 69-5530 lift kit includes 1" differential drop spacers and hardware, sway bar drop spacers, and skid plate spacers. For the rear we include our legendary OE style cast iron rear lift blocks with proper taper and longer U-bolts. This new Tacoma 6-lug SST Lift Kit enhances the factory driving mannerisms with a slightly more firm ride and handling characteristics thanks to the pre-load spacer. This kit allows for up to a 285/65-18 tire on an 18x9 wheel with +18 mm offset. (Minor trimming may be required depending on tire brand and tread design).

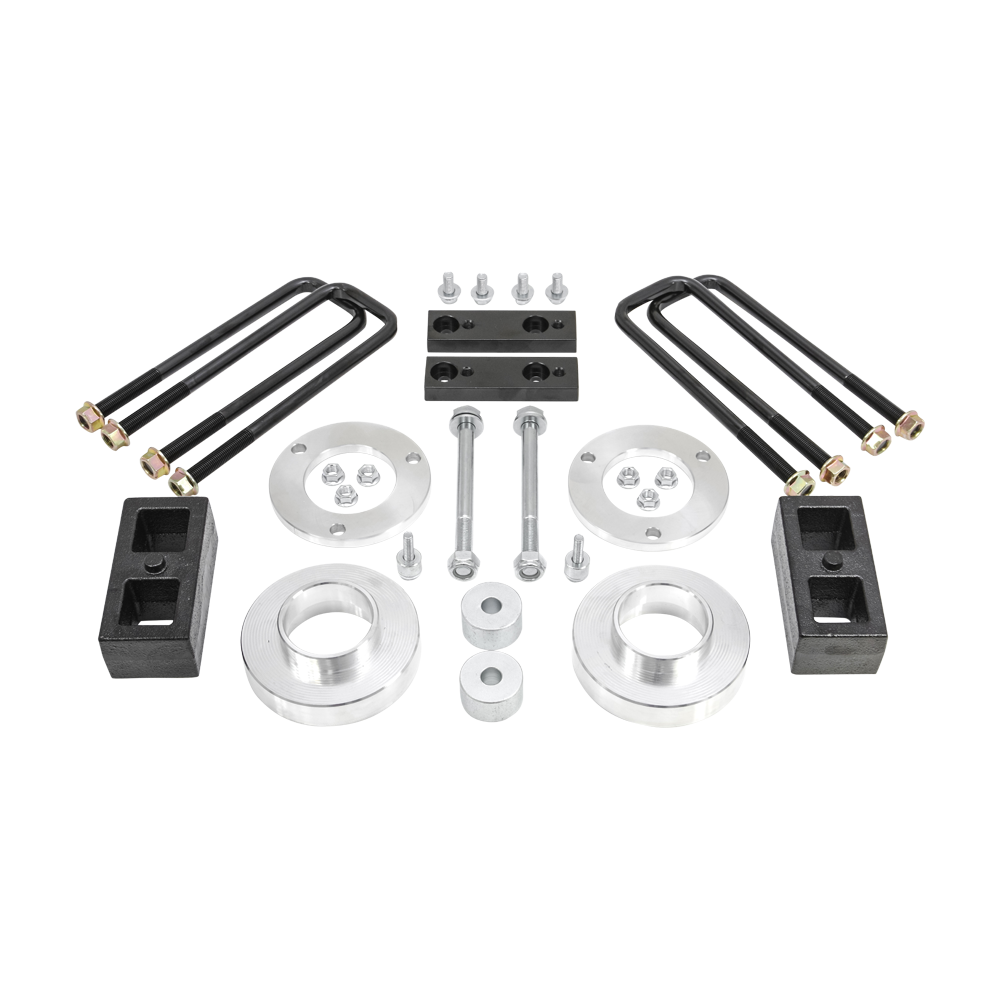

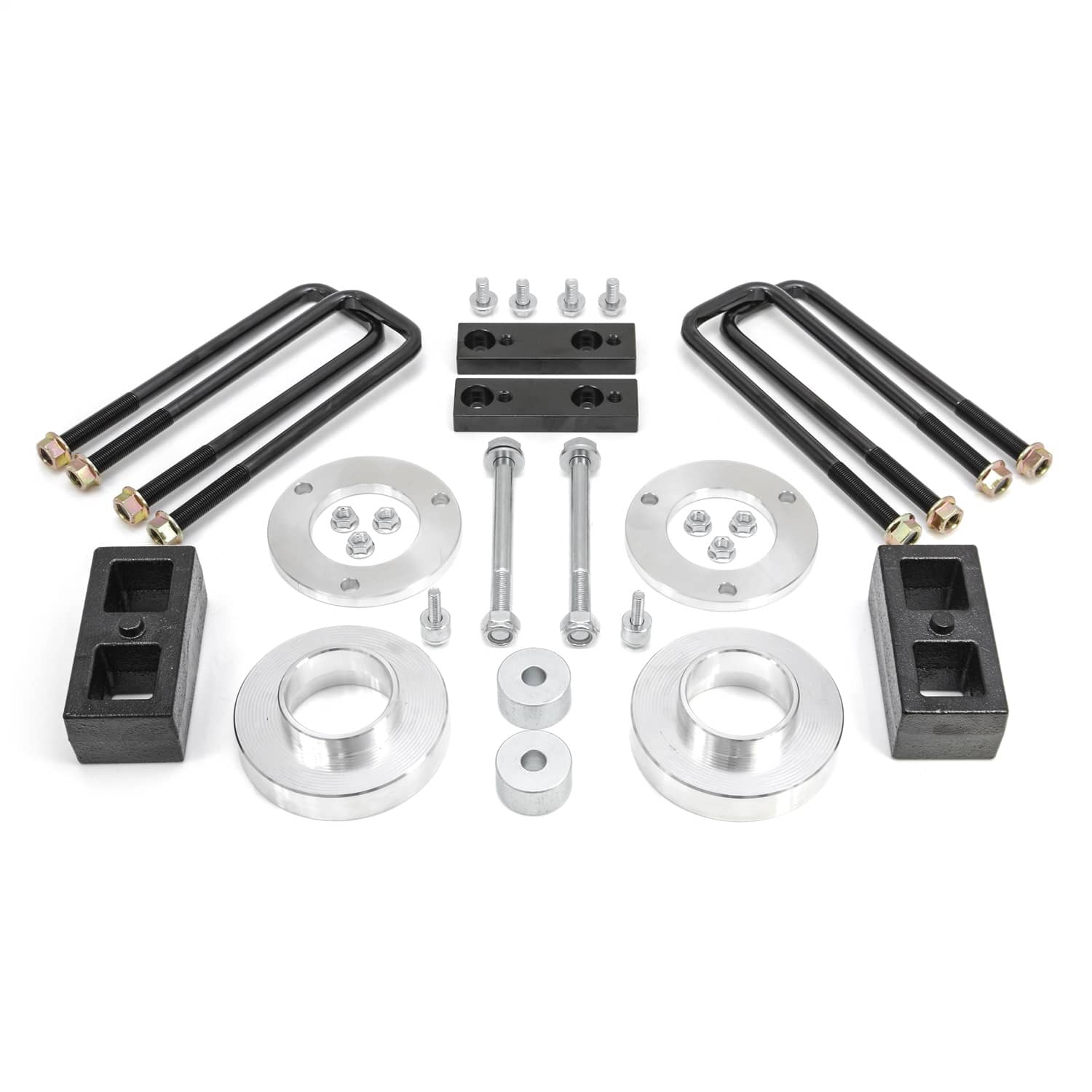

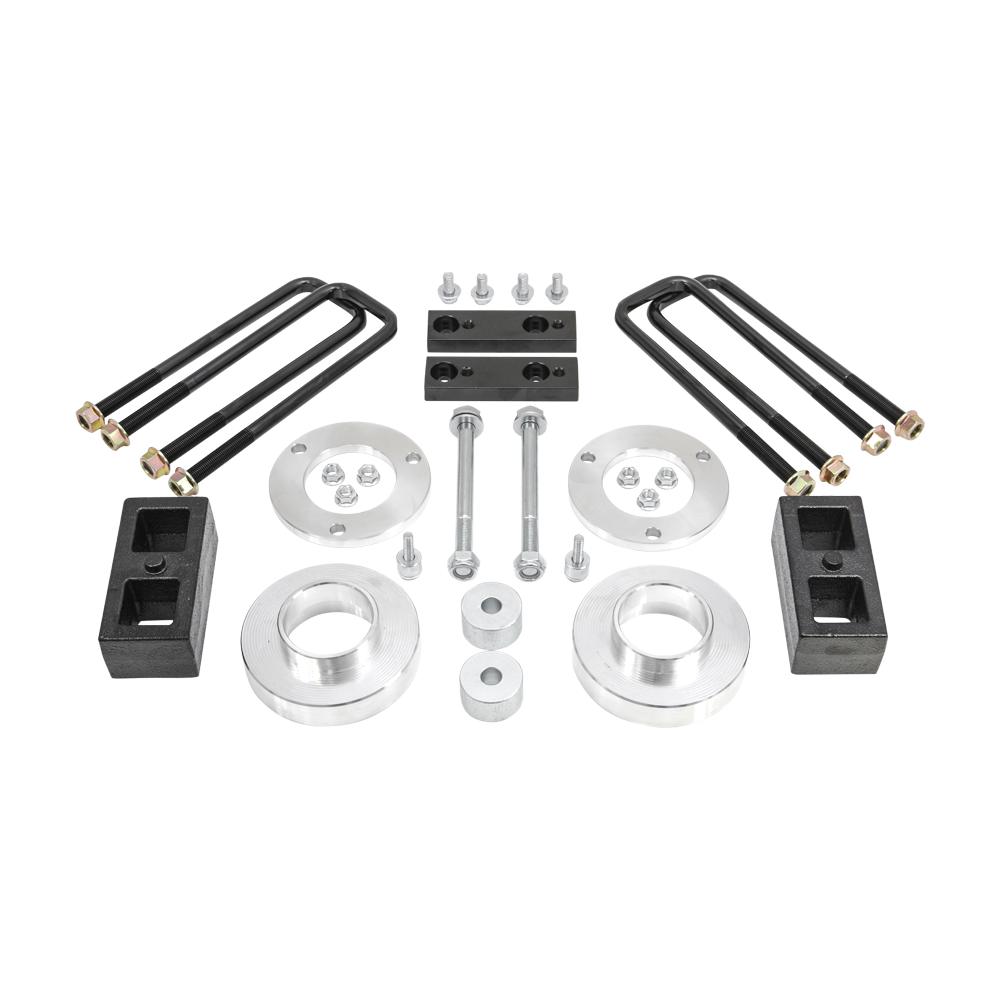

ReadyLift Suspension Lift Kit 69-5530
Specifications:
| California Proposition 65 | WARNING: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer, and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/product. |
| Fitment | Direct Fitment |
| Front Lift Component | Spacer |
| Front Lift Height | 3 Inches |
| Front or Rear | Front and Rear |
| Install Difficulty | Difficult Requires Professional Installation |
| Installation Time | 5+ Hours |
| Max Tire Size | 285 |
| Prop65 Chem1 | Di(2-ethylhexyl)phthalate (DEHP) |
| Rear Lift Component | Block and U-bolt |
| Rear Lift Height | 2 Inches |
| 3097 | No |
| Description_INV | RL 3'' SST LIFT KIT TACOMA PRE-LOAD |
| Description_EXT | 3"F / 2"R SST Lift Kit Pre-load Spacer - Toyota Tacoma TRD / SR5 / Rock Warrior 2005-2023 |
| Description_MKT | ReadyLIFT offers a pre-load lift style SST Lift Kit for the 2005-2023 Toyota Tacoma 2WD/4WD 6-lug trucks. Our traditional top mount strut extension 3" SST lift kits have been extremely popular for the past decade, but some customers favor a pre-load style lift kit, so we have added this lift technology to our product portfolio. Now you have more ReadyLIFT quality choices when it comes to lifting a Toyota Tacoma! ReadyLIFT's 69-5530 3/2 SST lift kit provides 3" total lift in front and 2" of lift in the rear. This new kit utilizes a precision crafted CNC-machined billet Aluminum pre-load spacer that installs between the factory spring and the top hat. This design slightly increases front spring rate, reducing nose dive during braking and improving front roll during hard turning at speed. Like our traditional Tacoma lift kits, the new 69-5530 lift kit includes 1" differential drop spacers and hardware, sway bar drop spacers, and skid plate spacers. For the rear we include our legendary OE style cast iron rear lift blocks with proper taper and longer U-bolts. This new Tacoma 6-lug SST Lift Kit enhances the factory driving mannerisms with a slightly more firm ride and handling characteristics thanks to the pre-load spacer. This kit allows for up to a 285/65-18 tire on an 18x9 wheel with +18 mm offset. (Minor trimming may be required depending on tire brand and tread design). |
| Description_FAB | Specifically designed for 20052023 Toyota Tacoma 6lug 2WD/4WD trucks |
| Description_FAB | Utilizes preload style lift engineering to maintain factory alignment geometry |
| Description_FAB | Increases front spring rate for improved nose dive control during braking |
| Description_FAB | Helps eliminate nose side roll during hard turning |
| Description_FAB | Easy bolton installation with no permanent modifications required |
| Description_FAB | Increases ground clearance for offroad use |
| Description_FAB | Allows for larger offroad wheels and tires |
| Description_FAB | Can accommodate up to a 285/6518 tire on an 18x9 wheel with +18 mm offset |
| Description_FAB | Made in the USA for quality and reliability. |
| Description_FAB | Specifically designed for 2005 Specifically designed for 20052023 Toyota Tacoma 6lug 2WD/4WD trucks |
| Description_FAB | Utilizes pre Utilizes preload style lift engineering to maintain factory alignment geometry |
| Description_FAB | Easy bolt Easy bolton installation with no permanent modifications required |
| Description_FAB | Increases ground clearance for off Increases ground clearance for offroad use |
| Description_FAB | Allows for larger off Allows for larger offroad wheels and tires |
| Description_FAB | Can accommodate up to a 285/65 Can accommodate up to a 285/6518 tire on an 18x9 wheel with +18 mm offset |
| Description_DEF | Suspension Lift Kit |
This Part Fits:
| Year | Make | Model | Submodel | Notes |
|---|---|---|---|---|
| 2005 | Toyota | Tacoma | Base | |
| 2006 | Toyota | Tacoma | Base | |
| 2007 | Toyota | Tacoma | Base | |
| 2008 | Toyota | Tacoma | Base | |
| 2009 | Toyota | Tacoma | Base | |
| 2010 | Toyota | Tacoma | Base | |
| 2011 | Toyota | Tacoma | Base | |
| 2012 | Toyota | Tacoma | Base | |
| 2013 | Toyota | Tacoma | Base | |
| 2014 | Toyota | Tacoma | Base | |
| 2015 | Toyota | Tacoma | Base | |
| 2006 | Toyota | Tacoma | Base Prerunner | |
| 2016 | Toyota | Tacoma | Edicion Especial | |
| 2017 | Toyota | Tacoma | Edicion Especial | |
| 2018 | Toyota | Tacoma | Edicion Especial | |
| 2019 | Toyota | Tacoma | Edicion Especial | |
| 2020 | Toyota | Tacoma | Edicion Especial | |
| 2021 | Toyota | Tacoma | Edicion Especial | |
| 2022 | Toyota | Tacoma | Edicion Especial | |
| 2023 | Toyota | Tacoma | Edicion Especial | |
| 2016 | Toyota | Tacoma | Limited | |
| 2017 | Toyota | Tacoma | Limited | |
| 2018 | Toyota | Tacoma | Limited | |
| 2019 | Toyota | Tacoma | Limited | |
| 2020 | Toyota | Tacoma | Limited | |
| 2021 | Toyota | Tacoma | Limited | |
| 2022 | Toyota | Tacoma | Limited | |
| 2023 | Toyota | Tacoma | Limited | |
| 2021 | Toyota | Tacoma | Nightshade | |
| 2022 | Toyota | Tacoma | Nightshade | |
| 2023 | Toyota | Tacoma | Nightshade | |
| 2005 | Toyota | Tacoma | Pre Runner | |
| 2006 | Toyota | Tacoma | Pre Runner | |
| 2007 | Toyota | Tacoma | Pre Runner | |
| 2008 | Toyota | Tacoma | Pre Runner | |
| 2009 | Toyota | Tacoma | Pre Runner | |
| 2010 | Toyota | Tacoma | Pre Runner | |
| 2011 | Toyota | Tacoma | Pre Runner | |
| 2012 | Toyota | Tacoma | Pre Runner | |
| 2013 | Toyota | Tacoma | Pre Runner | |
| 2014 | Toyota | Tacoma | Pre Runner | |
| 2015 | Toyota | Tacoma | Pre Runner | |
| 2017 | Toyota | Tacoma | Sport | |
| 2018 | Toyota | Tacoma | Sport | |
| 2019 | Toyota | Tacoma | Sport | |
| 2020 | Toyota | Tacoma | Sport | |
| 2021 | Toyota | Tacoma | Sport | |
| 2022 | Toyota | Tacoma | Sport | |
| 2023 | Toyota | Tacoma | Sport | |
| 2016 | Toyota | Tacoma | SR | |
| 2017 | Toyota | Tacoma | SR | |
| 2018 | Toyota | Tacoma | SR | |
| 2019 | Toyota | Tacoma | SR | |
| 2020 | Toyota | Tacoma | SR | |
| 2021 | Toyota | Tacoma | SR | |
| 2022 | Toyota | Tacoma | SR | |
| 2023 | Toyota | Tacoma | SR | |
| 2016 | Toyota | Tacoma | SR5 | |
| 2017 | Toyota | Tacoma | SR5 | |
| 2018 | Toyota | Tacoma | SR5 | |
| 2019 | Toyota | Tacoma | SR5 | |
| 2020 | Toyota | Tacoma | SR5 | |
| 2021 | Toyota | Tacoma | SR5 | |
| 2022 | Toyota | Tacoma | SR5 | |
| 2023 | Toyota | Tacoma | SR5 | |
| 2006 | Toyota | Tacoma | SR5 Prerunner | |
| 2007 | Toyota | Tacoma | SR5 Prerunner | |
| 2008 | Toyota | Tacoma | SR5 Prerunner | |
| 2009 | Toyota | Tacoma | SR5 Prerunner | |
| 2021 | Toyota | Tacoma | Trail | |
| 2016 | Toyota | Tacoma | TRD Off-Road | |
| 2017 | Toyota | Tacoma | TRD Off-Road | |
| 2018 | Toyota | Tacoma | TRD Off-Road | |
| 2019 | Toyota | Tacoma | TRD Off-Road | |
| 2020 | Toyota | Tacoma | TRD Off-Road | |
| 2021 | Toyota | Tacoma | TRD Off-Road | |
| 2022 | Toyota | Tacoma | TRD Off-Road | |
| 2023 | Toyota | Tacoma | TRD Off-Road | |
| 2010 | Toyota | Tacoma | TRD Sport | |
| 2011 | Toyota | Tacoma | TRD Sport | |
| 2012 | Toyota | Tacoma | TRD Sport | |
| 2013 | Toyota | Tacoma | TRD Sport | |
| 2014 | Toyota | Tacoma | TRD Sport | |
| 2015 | Toyota | Tacoma | TRD Sport | |
| 2016 | Toyota | Tacoma | TRD Sport | |
| 2017 | Toyota | Tacoma | TRD Sport | |
| 2018 | Toyota | Tacoma | TRD Sport | |
| 2019 | Toyota | Tacoma | TRD Sport | |
| 2020 | Toyota | Tacoma | TRD Sport | |
| 2021 | Toyota | Tacoma | TRD Sport | |
| 2022 | Toyota | Tacoma | TRD Sport | |
| 2023 | Toyota | Tacoma | TRD Sport | |
| 2006 | Toyota | Tacoma | TRD Sport Prerunner | |
| 2007 | Toyota | Tacoma | TRD Sport Prerunner | |
| 2008 | Toyota | Tacoma | TRD Sport Prerunner | |
| 2009 | Toyota | Tacoma | TRD Sport Prerunner | |
| 2005 | Toyota | Tacoma | X-Runner | |
| 2006 | Toyota | Tacoma | X-Runner | |
| 2007 | Toyota | Tacoma | X-Runner | |
| 2008 | Toyota | Tacoma | X-Runner | |
| 2009 | Toyota | Tacoma | X-Runner | |
| 2010 | Toyota | Tacoma | X-Runner | |
| 2011 | Toyota | Tacoma | X-Runner | |
| 2012 | Toyota | Tacoma | X-Runner | |
| 2013 | Toyota | Tacoma | X-Runner |
