*item may differ from images

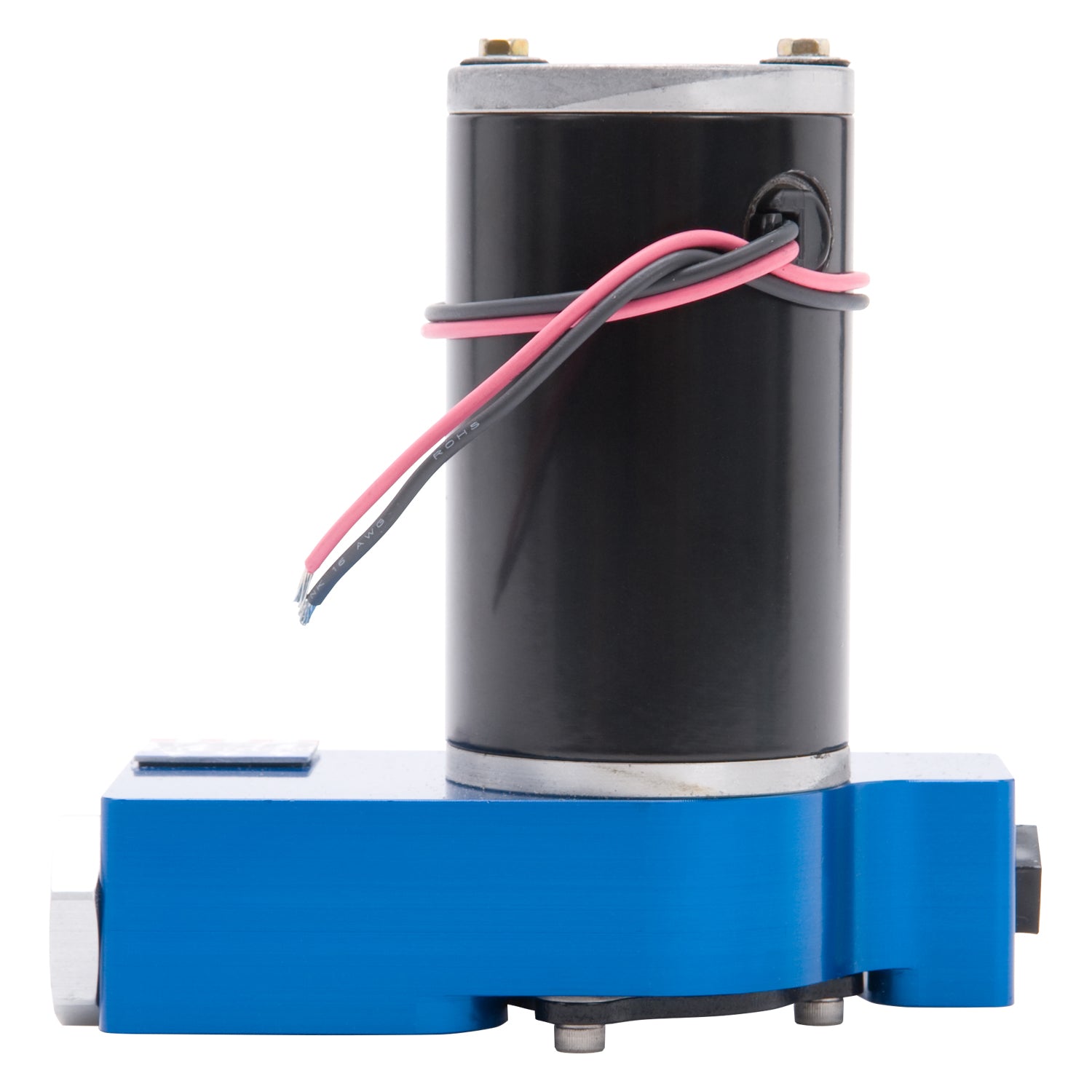

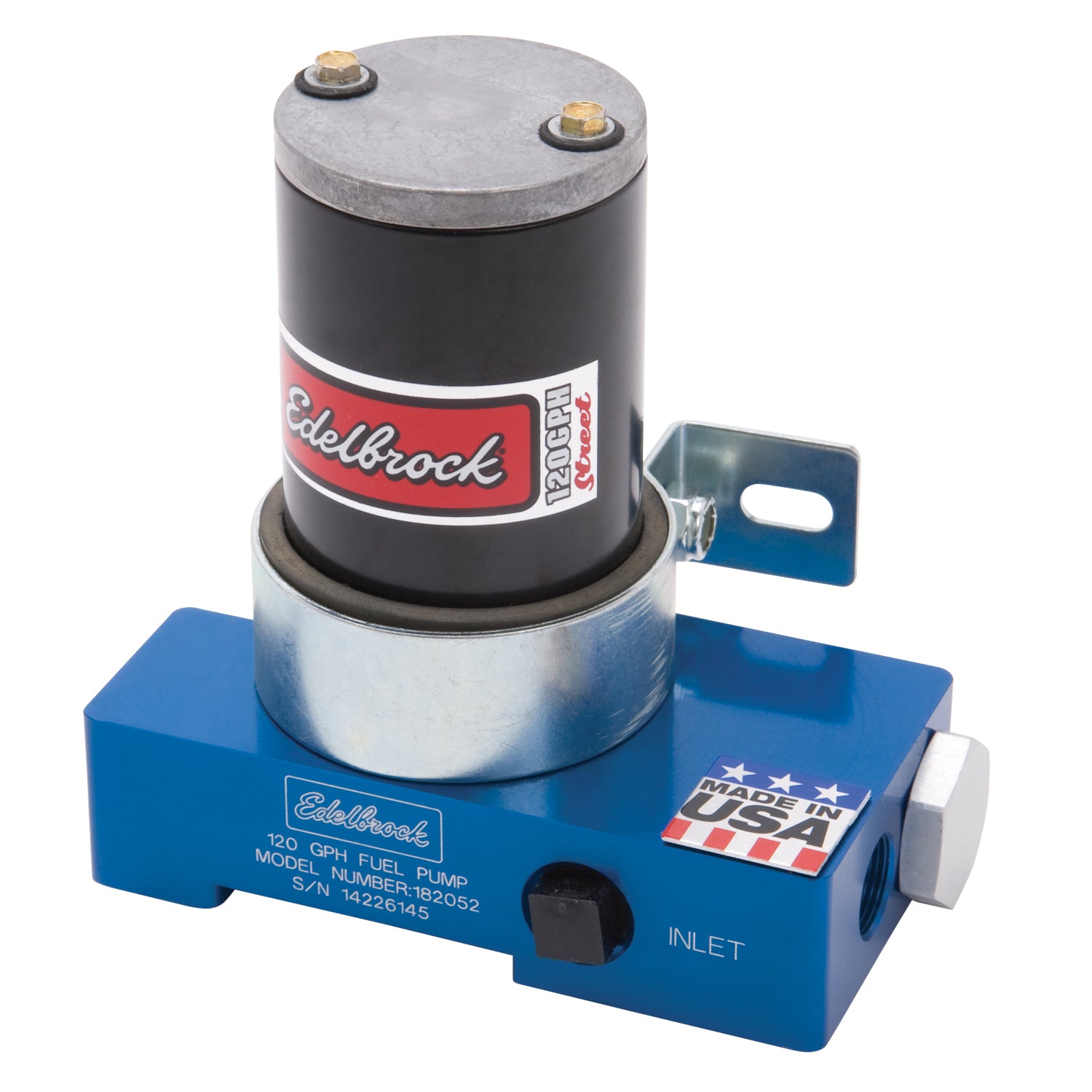

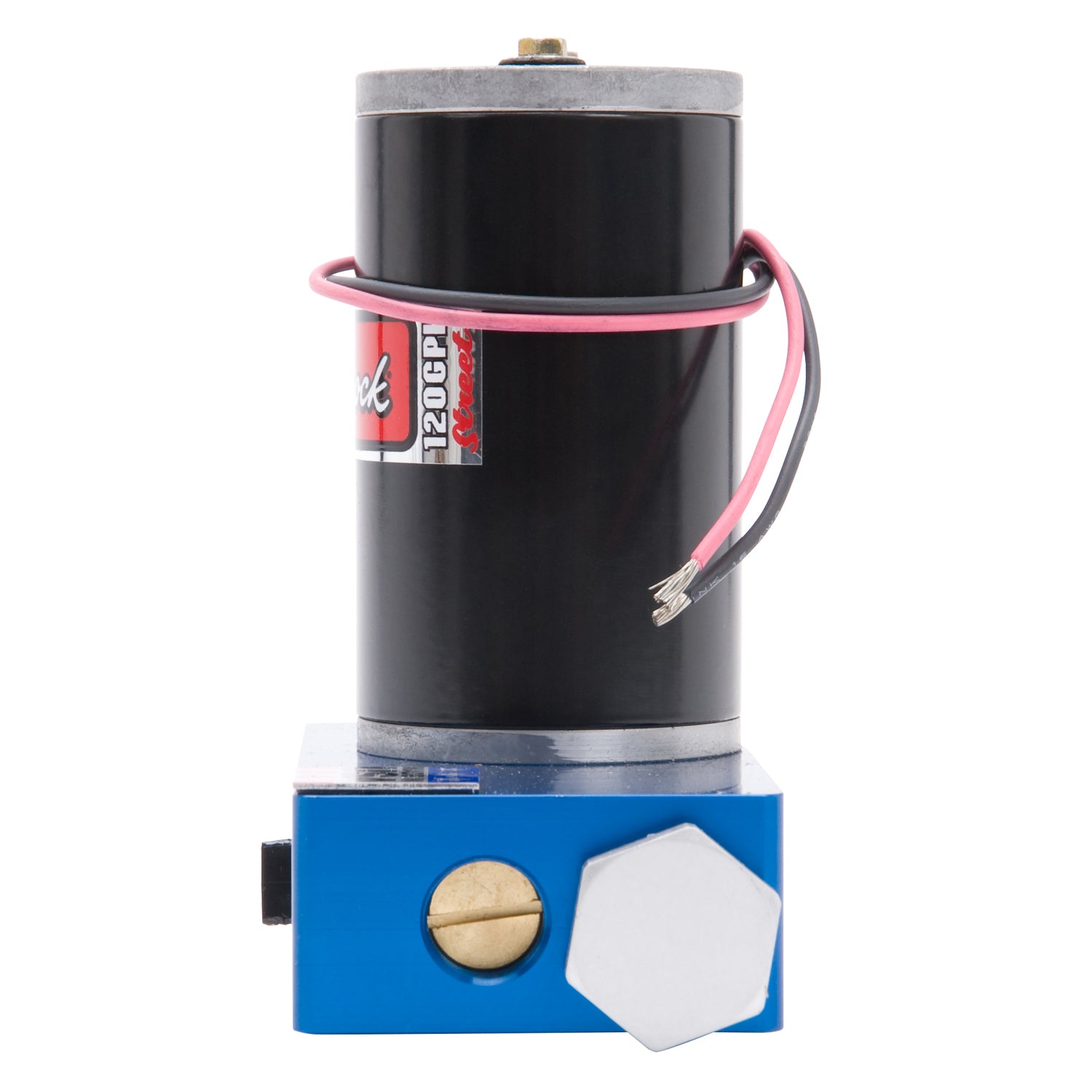

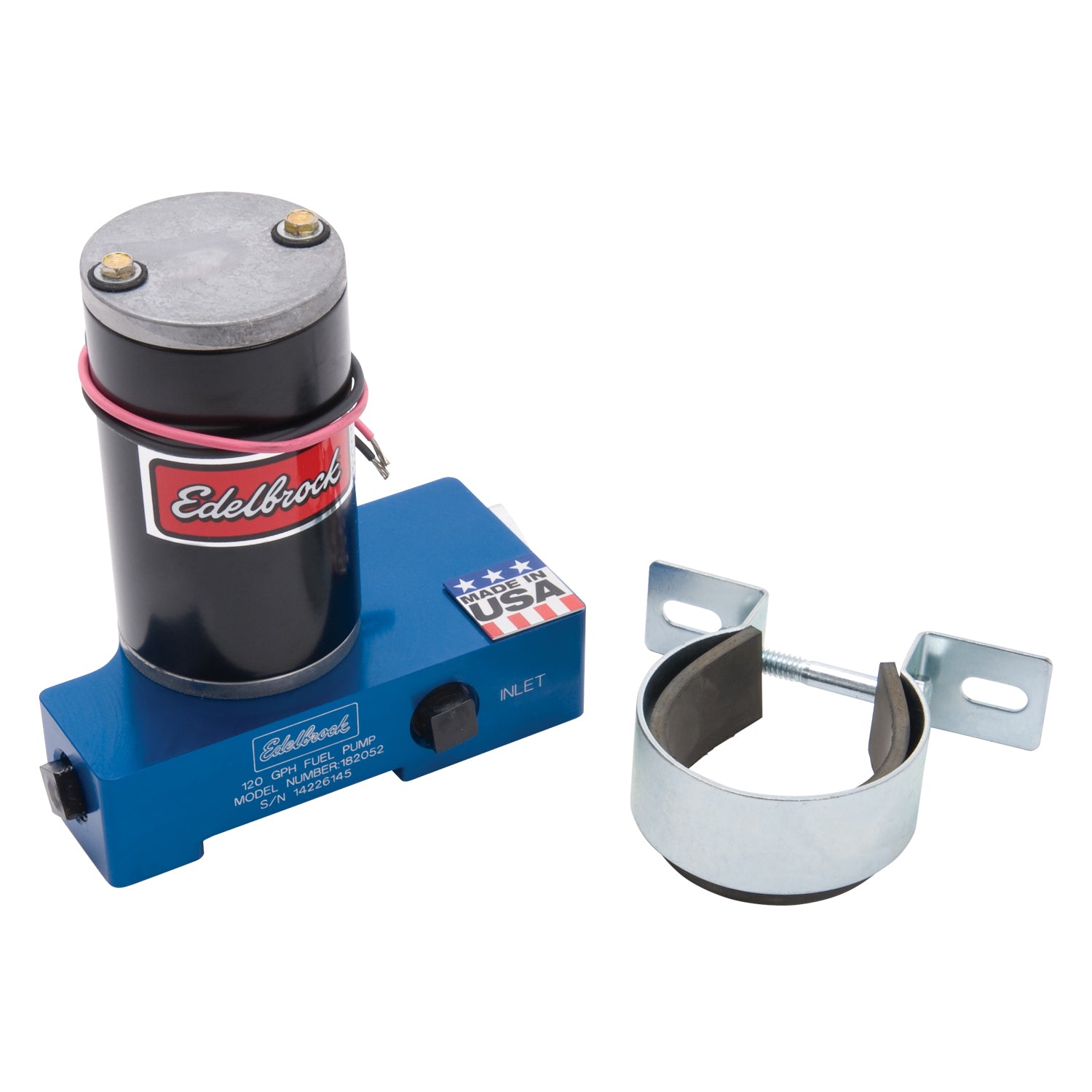

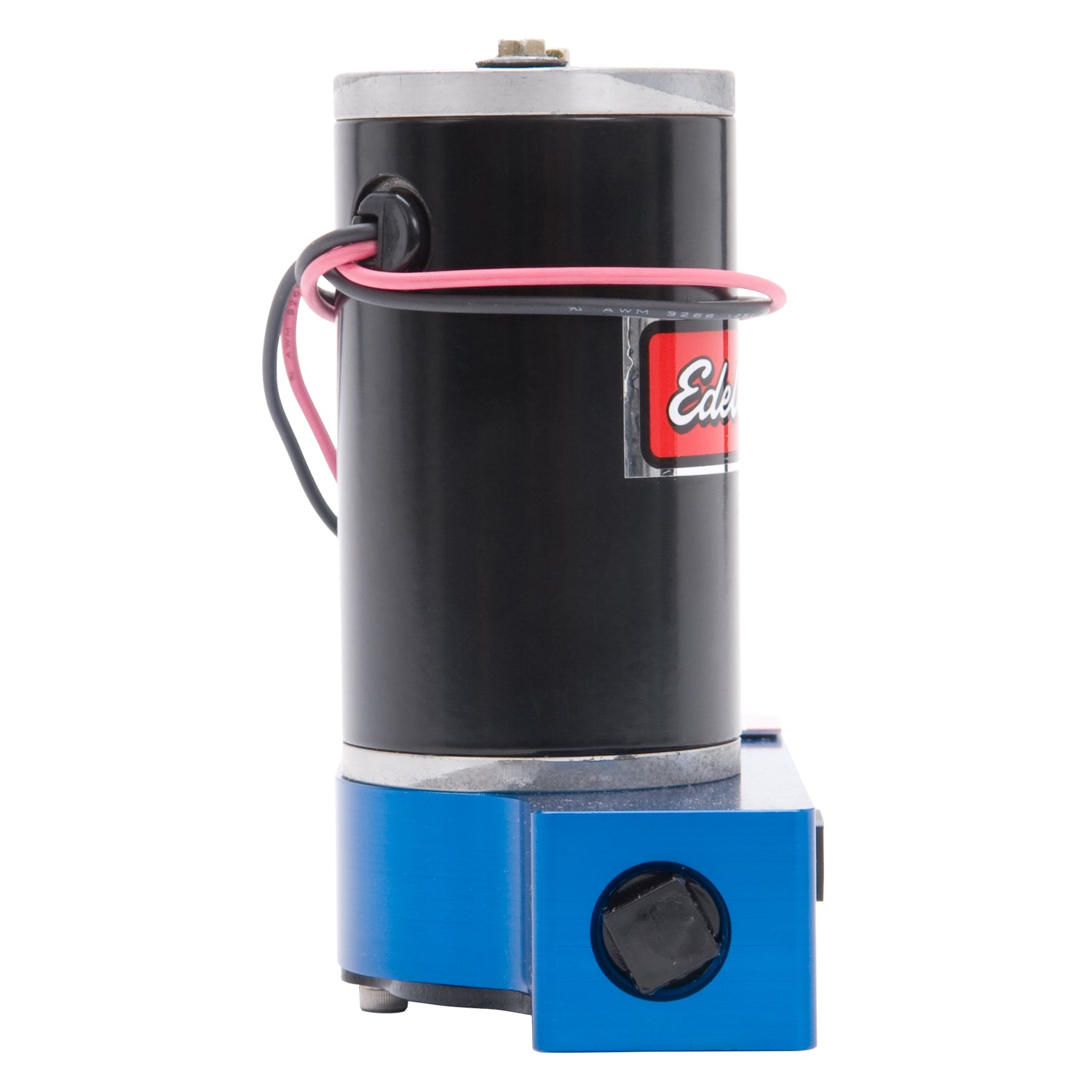

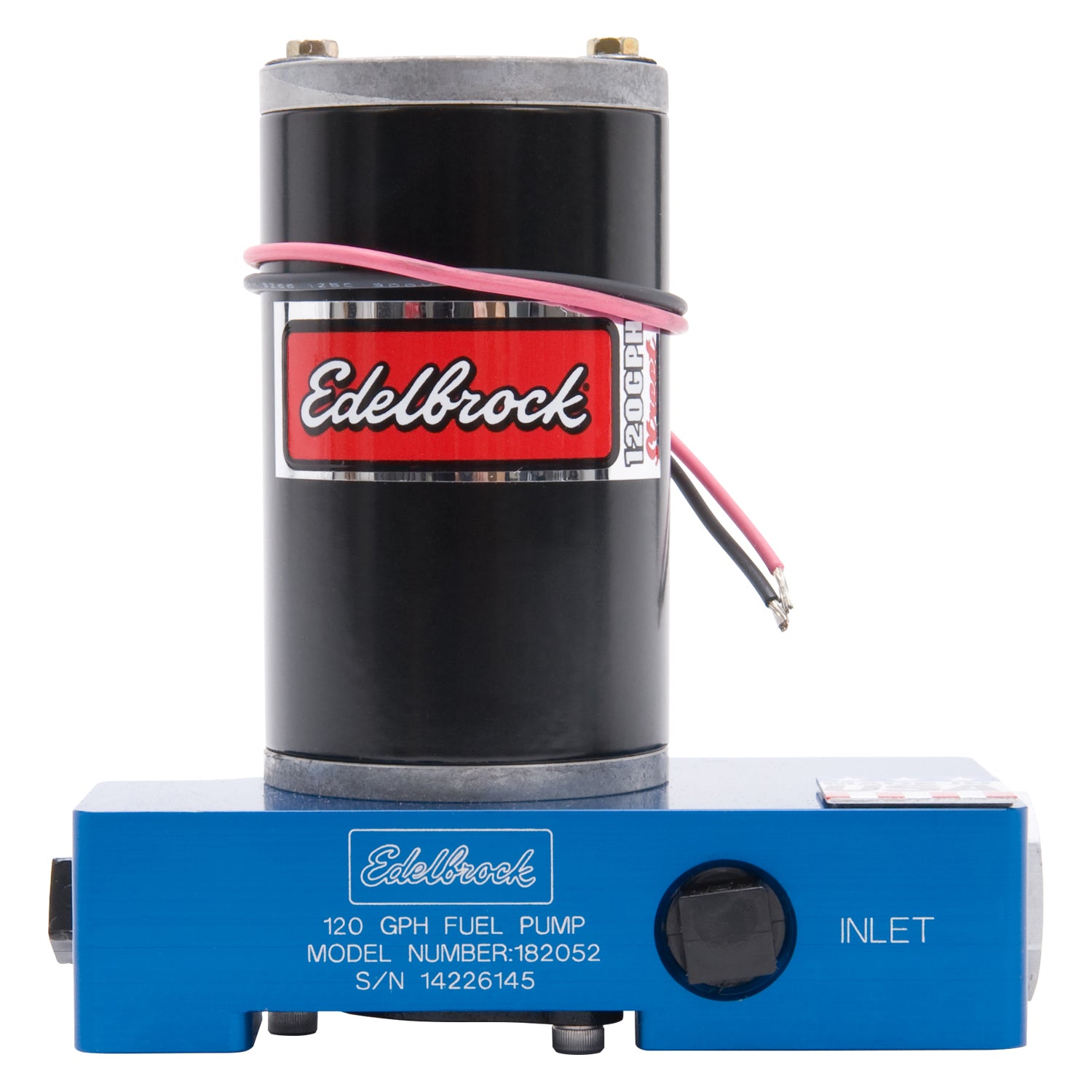

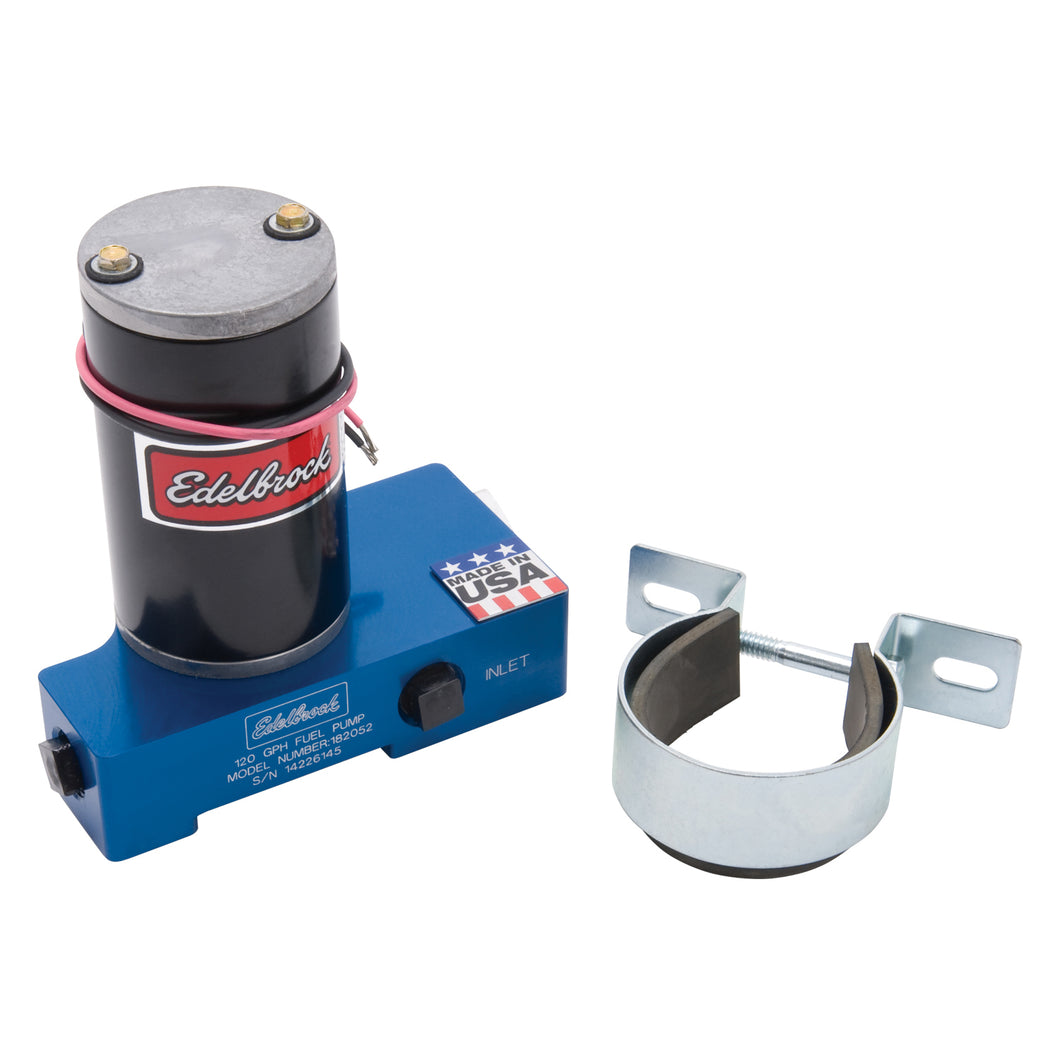

Edelbrock part #182052 is a state-of-the-art Electric Fuel Pump offering maximum performance in a compact package. With a Blue anodized aluminum housing and high-quality internals, they are both strong and durable. The carbon vanes and composite rotor give these pumps the added boost for maximum performance. The high quality construction results in a pump that is 4 to 14 dB quieter than competitors' pumps at the same pressure. Edelbrock #182052 is factory preset to 6.5 psi and no regulator is required. With a replaceable screen type inlet filter and the free flow rate of 120 GPH it is sufficient to supply 480+ hp.
Edelbrock Electric Fuel Pump 182052
Specifications:
| Regulator Included | No |
| Seal And Lock Ring Included | No |
| Wiring Harness Included | No |
| Fuel Sending Unit Included | No |
| Mounting Bracket Included | Yes |
| Wire Quantity | 2 |
| Inlet Type | NPT |
| Inlet Fitting Thread Size | 0.375 |
| Internal Or External | External |
| Universal Or Specific Fit | Universal |
| Outlet Fitting Thread Size | 0.375 |
| Terminal Type | Lead Wire |
| Strainer Included | No |
| Outlet Type | NPT |
| Pump Type | Electric |
| Outlet Thread Diameter | 0.375 |
| Pump Design | In-line Electric Fuel Pump |
| Voltage | 12 |
| Gasket Or Seal Included | No |
| Negative Ground | Yes |
| RGL | WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Outlet Quantity | 1 |
| Fuel Pump Inlet Type | NPT |
| Inlet Thread Diameter | 0.375 |
| Mounting Hardware Included | Yes |
| Fuel Type | Gas |
| In Tank or External | External |
| Compatible Fuel Type | Gas |
| Description_ABR | ElecFuelPump |
| Description_INV | Edelbrock Electric Fuel Pump #182052 |
| Description_LAB | Blue Electric Fuel Pump - 120 GPH |
| Description_EXT | Edelbrock part #182052 is a state-of-the-art Electric Fuel Pump offering maximum performance in a compact package. |
| Description_MKT | Edelbrock part #182052 is a state-of-the-art Electric Fuel Pump offering maximum performance in a compact package. With a Blue anodized aluminum housing and high-quality internals, they are both strong and durable. The carbon vanes and composite rotor give these pumps the added boost for maximum performance. The high quality construction results in a pump that is 4 to 14 dB quieter than competitors' pumps at the same pressure. Edelbrock #182052 is factory preset to 6.5 psi and no regulator is required. With a replaceable screen type inlet filter and the free flow rate of 120 GPH it is sufficient to supply 480+ hp. |
| Description_TRA | 120GPH |
| Description_TRA | Factory pressure setting: 6.5 psi |
| Description_TRA | Inlet Port: 3/8" (NPT) |
| Description_TRA | Outlet Port: 3/8" (NPT) |
| Description_TRA | External Regulator Required: No |
| Description_TRA | Supported HP: 480+ |
| Description_TRA | These pumps should be mounted as close to the fuel tank ass possible, at or below the fuel level |
| Description_TRA | For proper installation and voltage requirements, use fuel pump relay kit #1795 |
| Description_TRA | Pump is for gasoline only |
| Description_TRA | Call for more information |
| Description_DEF | Electric Fuel Pump |
