*item may differ from images
Edelbrock part #17303 fuel pump is a gravity fed type pump with a simple 2 wire design. It requires approximately one amp average draw at maximum delivery and works on 12 Volt negative ground systems only. It features an in-line style rotor and vane pump design. 2-3.5 PSI, 30 GPH for most carbureted applications and is compatible with gasoline and E85. Pump has integrated 5/16 barb fittings on fuel outlet and 5/16 fitting on included fuel filter inlet.

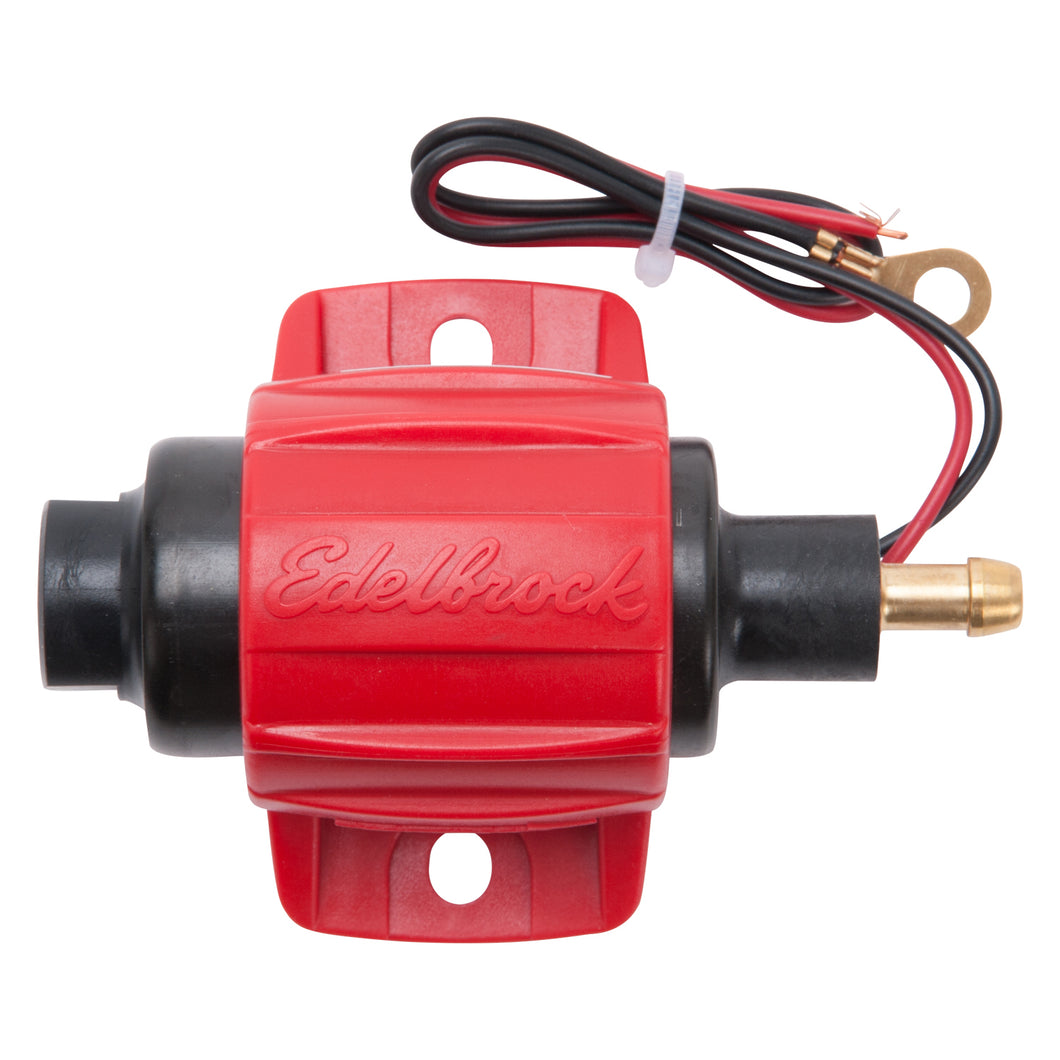

Edelbrock Electric Fuel Pump 17303
Specifications:
| Mounting Bracket Included | Yes |
| Wiring Harness Included | No |
| Maximum Flow Rating | 114 LPH/30 |
| Fuel Pump Inlet Type | Hose Barb |
| Fuel Sending Unit Included | No |
| Minimum Pressure | 2 |
| Internal Or External | External |
| Universal Or Specific Fit | Universal |
| Pump Design | In-line Electric Fuel Pump |
| RGL | WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Outlet Type | Hose Barb |
| Negative Ground | Yes |
| Terminal Type | Lead Wire |
| Mounting Hardware Included | Yes |
| Maximum Pressure | 3.5 |
| Strainer Included | No |
| Regulator Included | No |
| Fuel Type | Gas |
| Seal And Lock Ring Included | No |
| Outlet Quantity | 1 |
| Voltage | 12 |
| Gasket Or Seal Included | No |
| Inlet Type | Hose Barb |
| Pump Type | Electric |
| Outlet Outside Diameter | 0.312 |
| In Tank or External | External |
| Compatible Fuel Type | Gasoline and E85 |
| Description_TRA | Designed for use with automotive and industrial applications |
| Description_TRA | Includes filter and all of the necessary hardware for installation |
| Description_DEF | Electric Fuel Pump |
| Description_ABR | ElecFuelPump |
| Description_INV | Edelbrock Electric Fuel Pump #17303 |
| Description_LAB | Universal Micro Electric Fuel Pump - 30 GPH / 114 LPH (Gasoline/E85) |
| Description_EXT | Edelbrock part #17303 fuel pump is a gravity fed type pump with a simple 2 wire design. It requires approximately one amp average draw at maximum delivery and works on 12 Volt negative ground systems only. |
| Description_MKT | Edelbrock part #17303 fuel pump is a gravity fed type pump with a simple 2 wire design. It requires approximately one amp average draw at maximum delivery and works on 12 Volt negative ground systems only. It features an in-line style rotor and vane pump design. 2-3.5 PSI, 30 GPH for most carbureted applications and is compatible with gasoline and E85. Pump has integrated 5/16 barb fittings on fuel outlet and 5/16 fitting on included fuel filter inlet. |
| Description_TRA | For use with standard 12-volt negative ground systems with 1 amp draw at maximum delivery |
| Description_TRA | Features an easy to setup 2-wire design |
| Description_TRA | Features a gravity fed in-line, self-priming and regulating design |
| Description_TRA | Can also be used as a lift or transfer pump |
